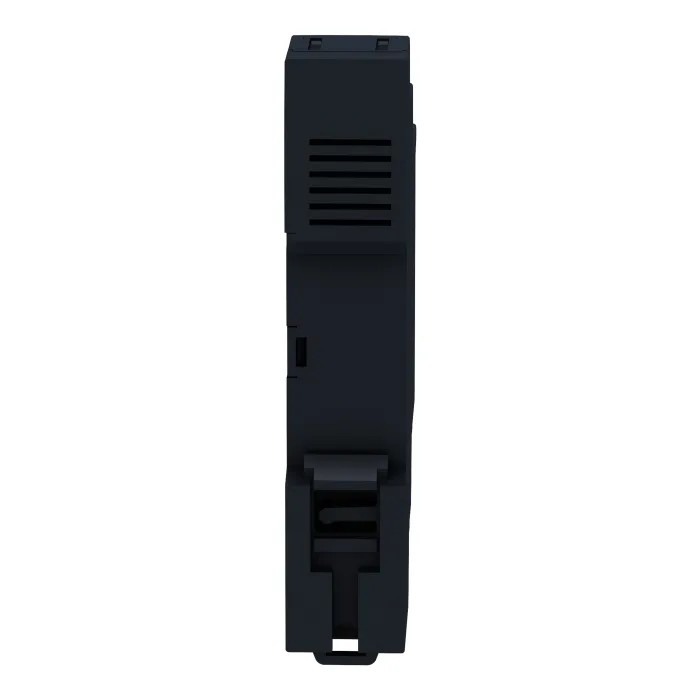

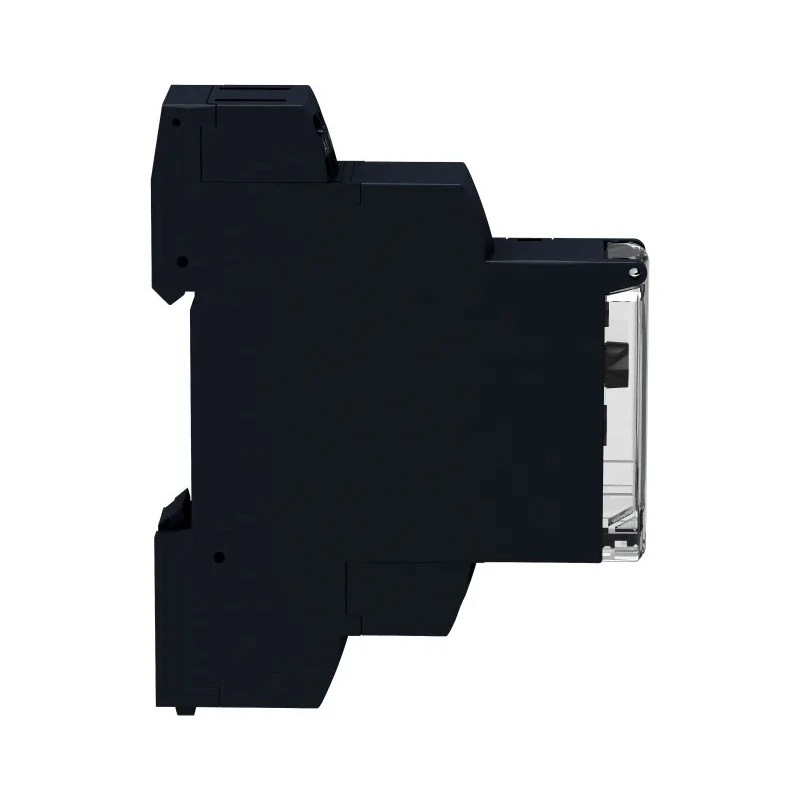

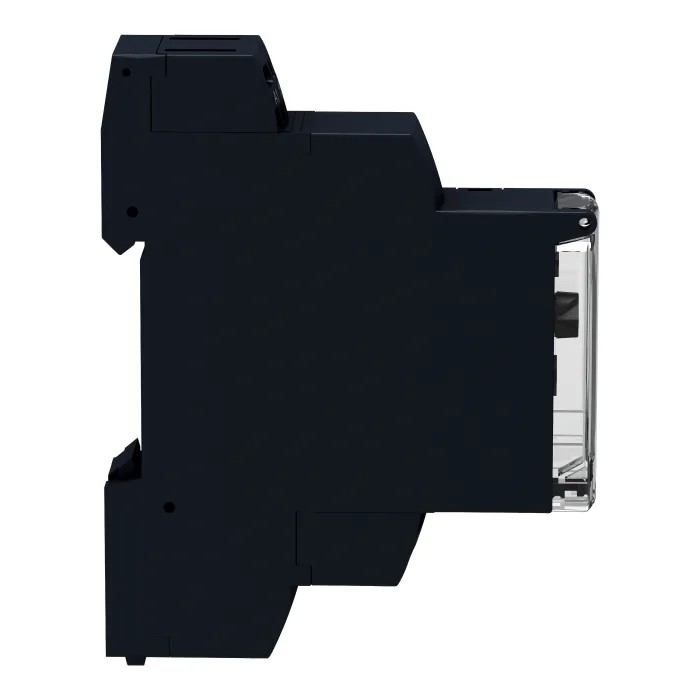

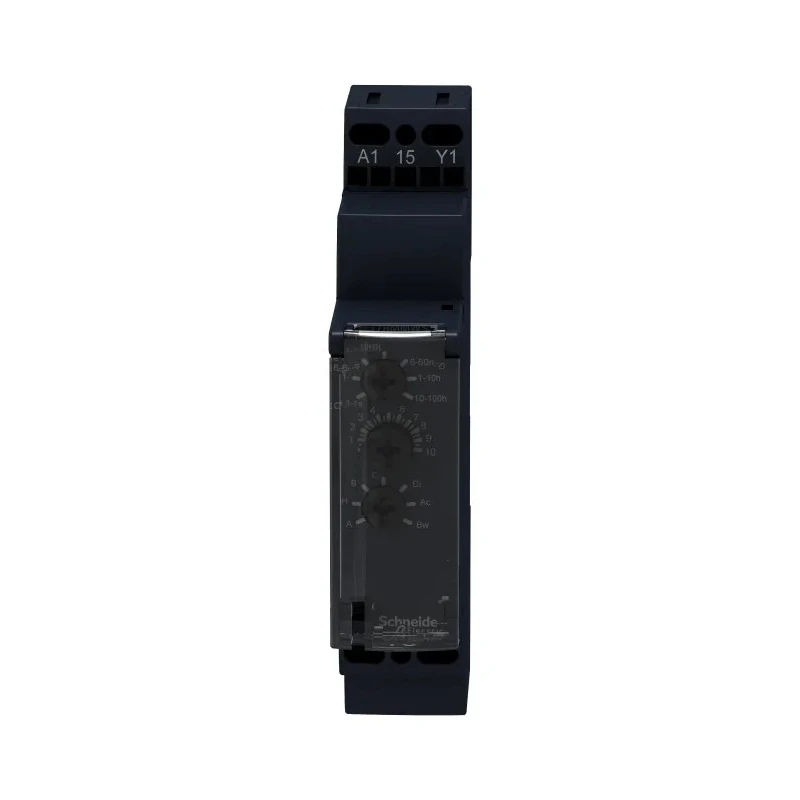

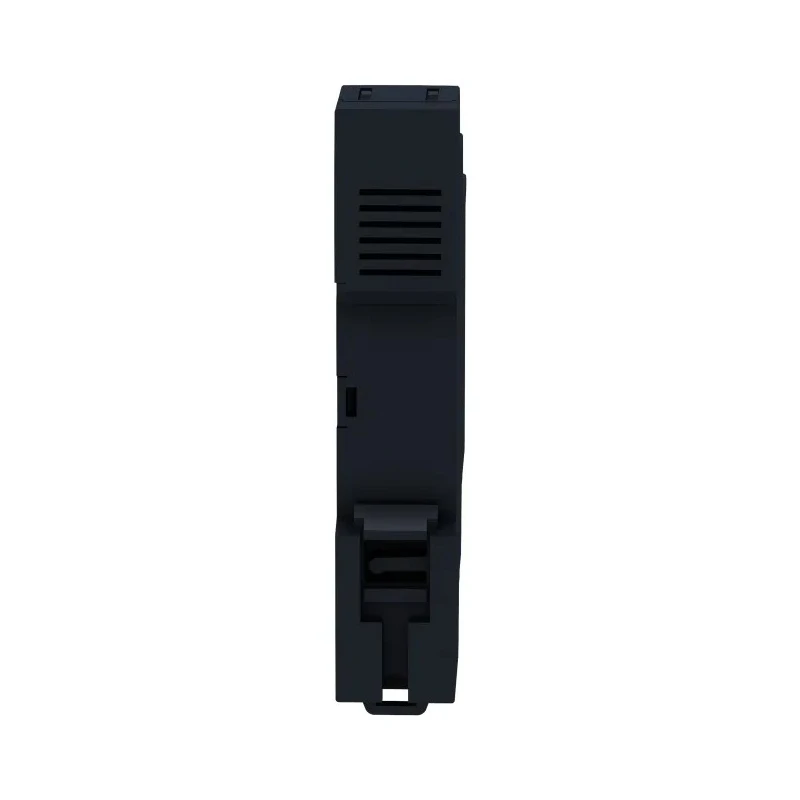

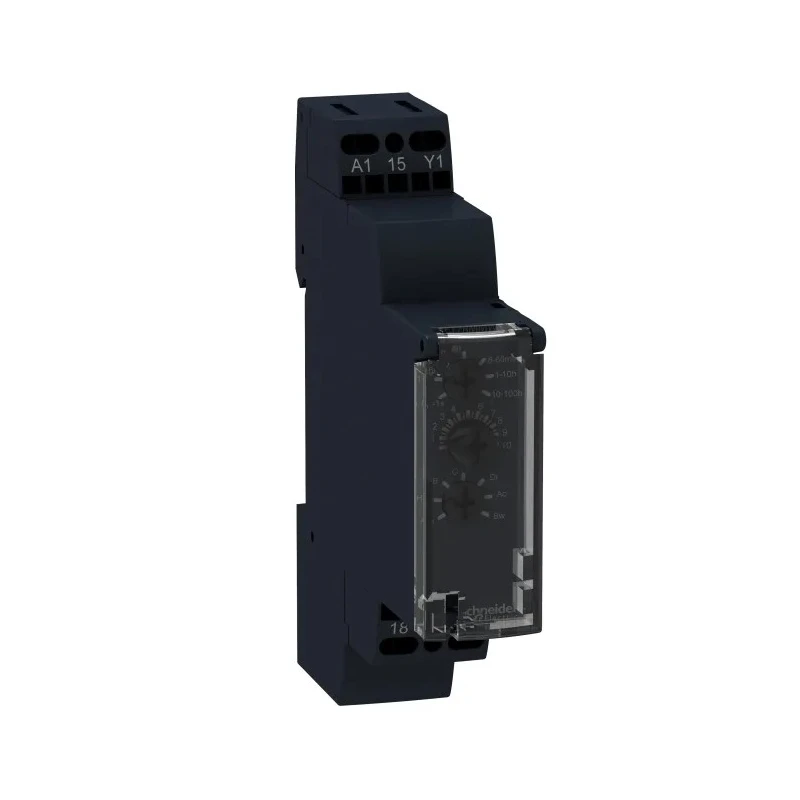

Schneider Electric Harmony Time Series DIN Rail Timer Relay 2-Contact 24 V dc 240 V ac 0.1 s to 100 h RE17RMMW
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Height | 72mm |
| Function | Multifunction |
| Length | 90mm |
| Model | RE17RMMW |
| IP Rating | IP50 |
| Mode | Multifunction |
| Width | 17.5mm |
| Mount Type | DIN Rail |
| Series | Harmony Time |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -20°C |
| Time Range | 0.1 s → 100 h |
| Terminal type | Screw |
| Standards/Approvals | CE, RoHS |
| Number of Contacts | 2 |
| Number of Timer Functions | Multifunction |
| Switching Voltage | 250V |
| Contact Current | 8A |
| Supply DC Voltage | 24 V dc |
| Supply AC Voltage | 240V ac |
| Schneider Electric DIN Rail Mount Time Delay Relay, 12 → 240V, 0.1 → 1hBrand | Schneider Electric |
Key Features
- Compact design optimized for DIN rail mounting.
- Multifunction timer with a broad time range from 0.1 seconds to 100 hours.
- Equipped with 2 SPDT contacts rated at 8 A and 250 V switching voltage.
- Suitable for supply voltages of 24 V dc and 240 V ac.
- Features screw terminal type connections for secure wiring.
- LED state indicator enables straightforward operation monitoring.
- Operating temperature range from -20°C to 60°C ensuring reliable performance in diverse environments.
- Complies with CE and RoHS standards and conforms to IEC certifications.
Product Description
Schneider Electric RE17RMMW multifunction DIN Rail Timer Relay is engineered for precise control and timing in industrial automation systems. This device includes 2 single-pole double-throw (SPDT) contacts enabling reliable switching with a maximum rated current of 8 A and switching voltage up to 250 V.
Designed for DIN rail mounting, it features a compact 17.5 mm width, 72 mm height, and 90 mm length enclosure. The relay supports a wide supply voltage range of 24 V dc to 240 V ac, enhancing its versatility in various panel control applications.
The multifunction timer supports an extensive time range from 0.1 seconds up to 100 hours, configurable for diverse automation sequences, including delayed switching. Its screw terminal connections facilitate rapid and secure wiring, while the LED state indicator simplifies commissioning and maintenance operations.
Built to withstand challenging industrial environments, this timer relay operates reliably within a temperature range from -20°C to 60°C and features robust protection with an IP50 front panel rating. Compliance with CE and RoHS standards, along with IEC certifications, guarantees high safety and environmental standards.
Typical applications include timing and control in lighting circuits, motor start control, safety systems, conveyor belt sequence delays, HVAC equipment, pumping and irrigation systems, and automated machinery operations. It provides isolation between supply and output circuits, reinforcing system safety and reliability.
Compact DIN rail mount design. Multifunction timing with broad programmable range. Reliable switching with 2 SPDT contacts at 8 A and 250 V. Wide supply voltage compatibility: 24 V dc and 240 V ac. Screw terminal wiring for secure connections.
LED indicator for operational status monitoring. Operating temperature range from -20°C to 60°C. IP50 front panel protection rating. International compliance: CE, RoHS, IEC standards. Ideal for various industrial automation applications.
Explore our comprehensive range of industrial relays and timer solutions at EnvMart to discover products that match your automation requirements.
Explore more products in our Timer Relays category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The timer relay supports a broad time range from 0.1 seconds to 100 hours, allowing for versatile timing applications in automation systems.
This model features 2 single-pole double-throw (SPDT) contacts rated for a maximum current of 8 A and a switching voltage of up to 250 V.
It is compatible with supply voltages of 24 V dc and 240 V ac, enhancing its versatility for various applications.
The relay operates reliably within a temperature range of -20°C to 60°C, making it suitable for diverse industrial environments.
This model is designed for DIN rail mounting, which allows for easy installation in control panels.
It features screw terminal type connections, ensuring secure and reliable wiring for installation.
The dimensions of this unit are 17.5 mm in width, 72 mm in height, and 90 mm in length.
The timer relay has an IP50 front panel protection rating, providing a level of protection against dust and contact.
It complies with CE and RoHS standards and conforms to IEC certifications, ensuring adherence to safety and environmental regulations.
Typical applications include timing and control in lighting circuits, motor start control, safety systems, conveyor belt sequence delays, HVAC equipment, and automated machinery operations.
It is equipped with an LED state indicator, which simplifies operational status monitoring during use.
This timer relay supports multiple timer functions, making it suitable for various automation sequences including delayed switching.
