Omron 0.5 mm Pitch 35 Way Right Angle Female FPC Connector, Top & Bottom Contact XF2M

Free Delivery in India | Lowest Global Shipping Charges

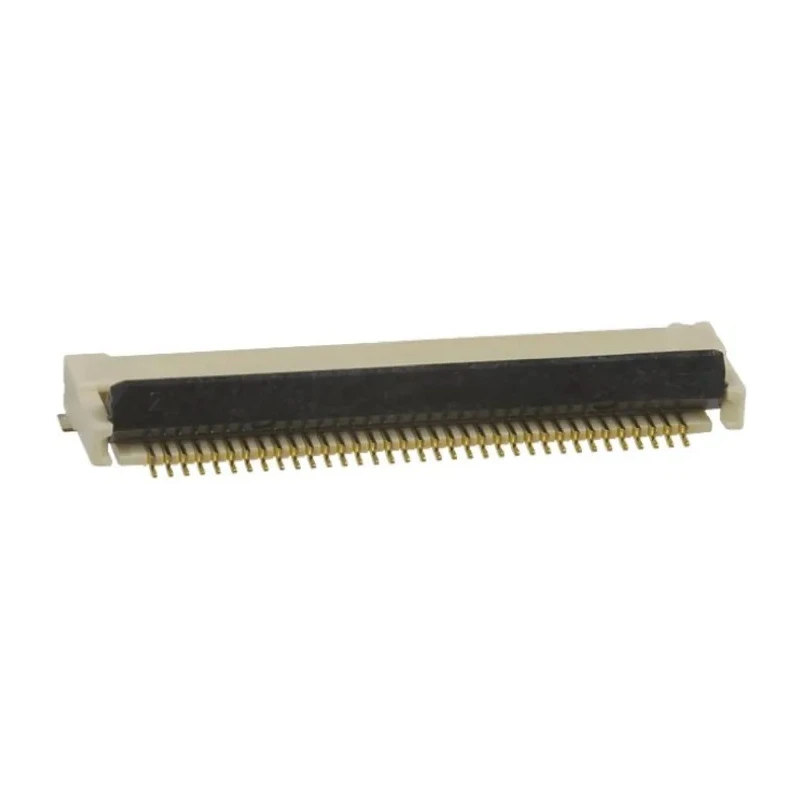

Omron 0.5 mm Pitch 35 Way Right Angle Female FPC Connector, Top & Bottom Contact XF2M

Name: Omron 0.5 mm Pitch 35 Way Right Angle Female FPC Connector, Top & Bottom Contact XF2M
Brand: Omron
SKU: 222445
Price: 2.1 USD
Availability: InStock



Category FPC Connector Brand Omron Condition New

Specifications

Country of Origin	China
Voltage	50, 50V ac
Brand	Omron
Orientation	Right Angle
Current	500mA
Model	XF2M
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Beryllium Copper Nickel
Series	XF2M
Termination Type	Top & Bottom Contact
Maximum Operating Temperature	85°C
Sub Type	Easy-On FFC/FPC Connector
Minimum Operating Temperature	-30°C
Number of Rows	1
Pitch	0.5mm
Contact Plating	Gold
Number of Contacts	35
Contact Gender	Female
Connector Gender	Female
Contact Position	Dual

Key Features

Features a 0.5 mm pitch enabling compact PCB designs.
Contains 35 female contacts for signal transmission.
Supports a current rating of 500 mA for low power applications.
Utilizes a rotary backlock mechanism for secure and easy FPC mounting.
Dual-sided top and bottom contacts enhance connection reliability.
Constructed with beryllium copper nickel contact material and gold plating for durability.
Housing made from halogen-free Liquid Crystal Polymer resin with UL94V-0 rating.
Right angle orientation with low 2 mm on-board profile suits space-constrained designs.

Product Description

Omron XF2M 0.5 mm Pitch 35 Way Right Angle Female FPC Connector with Top & Bottom Contact is designed for compact electronic devices requiring reliable flexible printed circuit connections. This connector features a fine 0.5 mm pitch and a single row of 35 female contacts enabling high-density interconnection. Its rotary backlock mechanism facilitates easy and secure FPC mounting, suitable for small mobile devices including digital cameras, mobile phones, DVD players, and digital video devices.

The connector uses beryllium copper nickel for contacts with gold plating to ensure long-lasting conductivity and resistance to corrosion. The housing is crafted from flame-retardant Liquid Crystal Polymer (LCP, UL94V-0), which is halogen-free, ensuring environmental compliance. Its right angle orientation and 2 mm low-profile design support compact board layouts while its dual top and bottom contacts provide superior electrical contact reliability.

Operating within -30°C to 85°C, this surface mount FPC connector supports 500 mA current and 50 V AC voltage applications. The rotary backlock and locking mechanism increase assembly efficiency and maintain secure connections under vibration or mechanical stress. This product is ideal for industrial, consumer electronics, telecommunications, and other electronic manufacturing applications where space and reliability are critical.

35 female contacts with 0.5 mm pitch for fine connection. Rotary backlock mechanism ensures secure mounting. Dual top and bottom contacts for improved conductivity. Gold-plated beryllium copper nickel contacts for durability.

Halogen-free LCP housing material with UL94V-0 rating. Low 2 mm profile suitable for tight PCB spaces. Right angle orientation for optimized board layout. Operates from -30°C to 85°C ambient temperature. Surface mount type with locking mechanism included.

Complies with environmental and safety standards. Explore comprehensive product selections for PCB connectors and FPC Connectors at EnvMart for advanced electronics manufacturing requirements.
