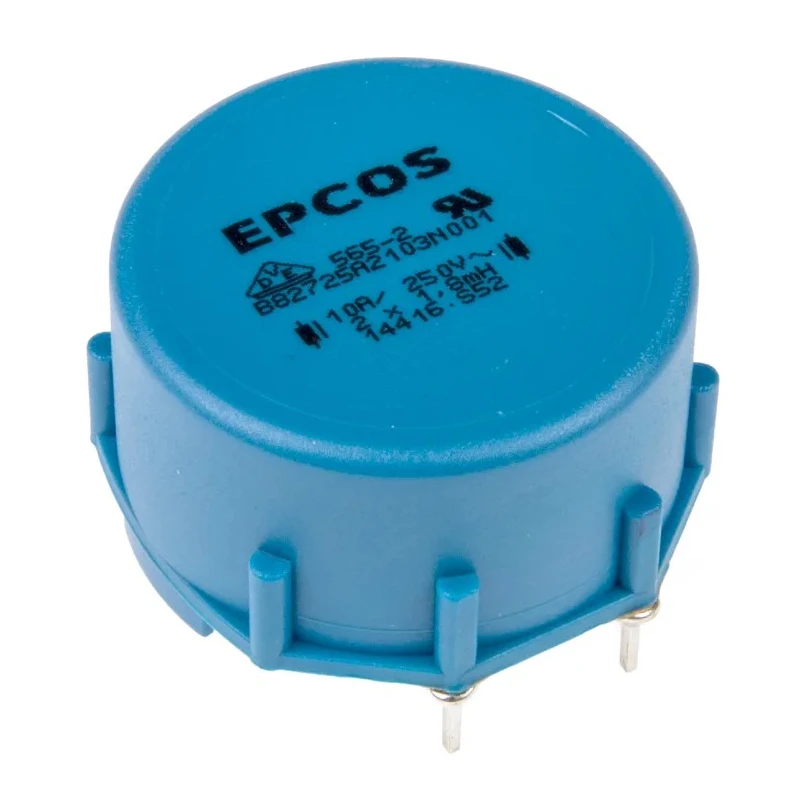

TDK 1.8 mH Ferrite Current Compensated Choke 10 A IDC 14 mΩ RDC 250V AC Radial Mount B82725A2103N001

Free Delivery in India | Lowest Global Shipping Charges

TDK 1.8 mH Ferrite Current Compensated Choke 10 A IDC 14 mΩ RDC 250V AC Radial Mount B82725A2103N001



Category Mounting Equipment Brand TDK Condition New

Specifications

Country of Origin	India
Diameter	42.4mm
Brand	TDK
Height	25mm
Length	44mm
Model	B82725A2103N001
Depth	42.4mm
Packaging	Blister Tray in Cardboard Box
Mount Type	Radial
Series	B82721A
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-25°C
Test Frequency	100kHz
Core Material	Ferrite
Maximum Voltage	250V ac
Inductance	1.8mH
Standards/Approvals	UL 94 V-0, UL 1283, EN 60938-2
Maximum DC Current	10A
Pin Count	4
Maximum DC Resistance	14mΩ
Inductance Tolerance	30 %
Termination Style	Pin
Lead Pitch	15mm
Lead Diameter	1mm

Key Features

High resonance frequency enabled by unique winding technique.
Suitable for switch-mode power supplies and sensitive electronic equipment.
Compact radial mount design with pin termination style.
Temperature range from -25°C up to 125°C for reliable operation.
Packaged in blister tray in cardboard box for protection and ease of handling.
Complies with UL 94 V-0 flame retardant standard and UL 1283, EN 60938-2 approvals.

Product Description

TDK B82725A2103N001 is a 1.8 mH ferrite current compensated choke with radial mount, designed to handle a maximum DC current of 10 A and a DC resistance of 14 mΩ. The choke operates reliably at voltages up to 250V AC and temperatures ranging from -25°C to 125°C, making it suitable for demanding industrial and electronic applications.

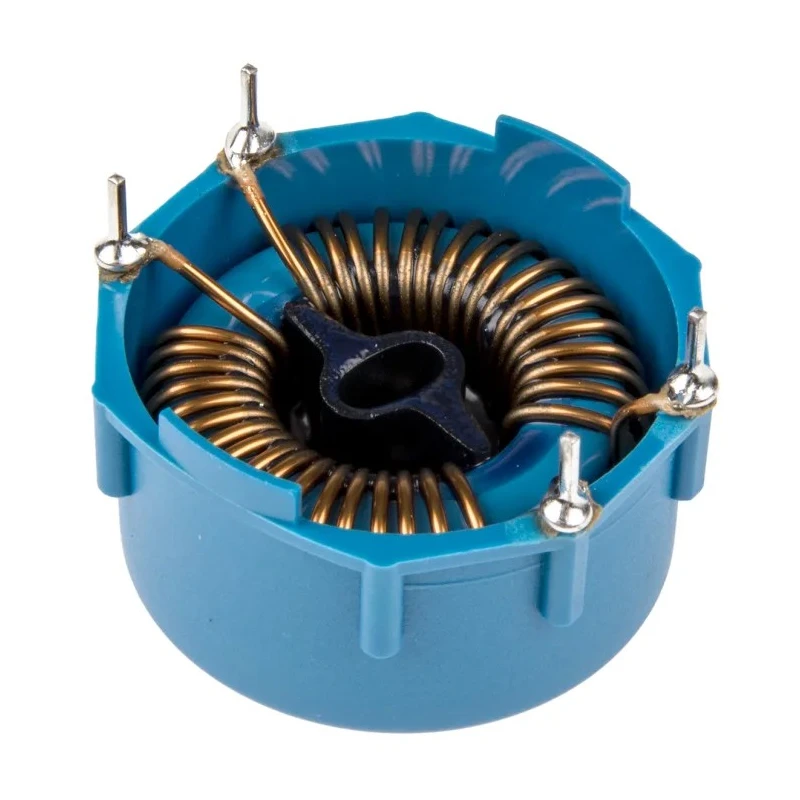

Featuring a ferrite core and pin termination style, this choke is designed with a unique winding technique to provide a high resonance frequency. It comes packaged in a blister tray inside a cardboard box to ensure safe transport and handling.

This component is ideal for use in switch-mode power supplies for computers, televisions, and other sensitive electronic equipment. It is also well-suited to electronic ballasts in lamps, chargers, and washing machines where reliable current compensation is critical.

The B82725A2103N001 choke complies with key industry safety and quality standards including UL 94 V-0 flame retardant classification, UL 1283, and EN 60938-2. Its radial mounting configuration allows for stable PCB installation, supported by a 15mm lead pitch and 1mm lead diameter.

High resonance frequency enabled by unique winding technique. Suitable for switch-mode power supplies and sensitive electronic equipment. Compact radial mount design with pin termination style. Temperature range from -25°C up to 125°C for reliable operation.

Packaged in blister tray in cardboard box for protection and ease of handling. Complies with UL 94 V-0 flame retardant standard and UL 1283, EN 60938-2 approvals.

This choke is commonly used in industrial, electronic manufacturing, HVAC, and commercial electronic equipment applications where precise current compensation and high frequency response are required.
