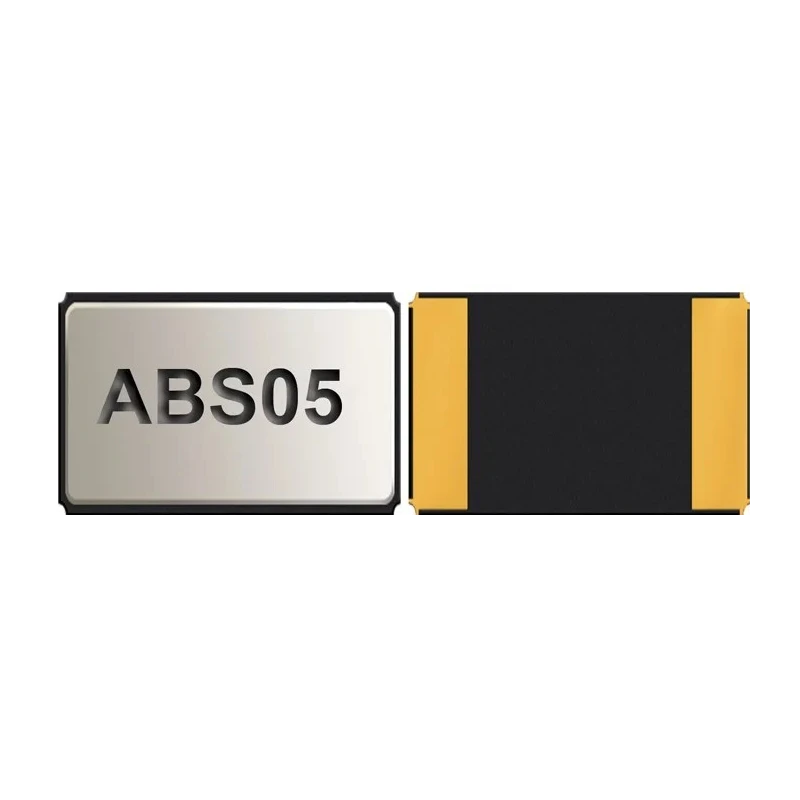

Abracon 32.768 kHz Crystal ±20 ppm Surface Mount 2-Pin 0.5 mm Height 1.6 mm Length 1 mm Width ABS05-32.768kHz-X-T5

Free Delivery in India | Lowest Global Shipping Charges

Abracon 32.768 kHz Crystal ±20 ppm Surface Mount 2-Pin 0.5 mm Height 1.6 mm Length 1 mm Width ABS05-32.768kHz-X-T5

Name: Abracon 32.768 kHz Crystal ±20 ppm Surface Mount 2-Pin 0.5 mm Height 1.6 mm Length 1 mm Width ABS05-32.768kHz-X-T5
Brand: Abracon
SKU: 275317
Price: 2.9 USD
Availability: InStock



Category Mounting Equipment Brand Abracon Condition New

Specifications

Country of Origin	India
Brand	Abracon
Height	0.5mm
Length	1.6mm
Model	ABS05-32.768kHz-X-T5
Packaging	Tape & Reel
Width	1mm
Mount Type	Surface
Series	ABS05
Maximum Operating Temperature	85°C
Package Type	Surface Mount
Minimum Operating Temperature	-40°C
Standards/Approvals	RoHS
Pin Count	2
Standard Frequency	32.768kHz
Load Capacitance	4pF
Series Resistance	90kΩ

Key Features

The crystal features a low-profile 1.60 x 1.00 x 0.50 mm tuning fork package.
It provides a load capacitance of 4pF for precise frequency stability.
Designed to operate in industrial temperature range from -40°C to +85°C.
The series resistance is rated at 90kΩ for reliable oscillation performance.
RoHS compliant for environmentally safe usage in electronics applications.
Ideal for wireless modules, low power MCUs, SoCs and industrial transceivers.
Supplied in tape and reel packaging for automated PCB assembly processes.
The ABS05 series is suitable for compact designs requiring height constraints.

Product Description

Abracon ABS05-32.768kHz-X-T5 is a high precision, low profile crystal unit designed for surface mount applications. It operates at a standard frequency of 32.768 kHz with a frequency tolerance of ±20 ppm. The crystal utilizes a tuning fork flexural mode which makes it suitable for timing purposes in low power microcontrollers, SoCs, and transceivers.

The physical dimensions are compact, measuring 1.6 mm in length, 1 mm in width, and only 0.5 mm in height, making it ideal for space-constrained PCB layouts. It offers a load capacitance of 4 pF and a series resistance of 90 kΩ, providing stable oscillation characteristics.

This crystal has an extended operating temperature range from -40°C to +85°C, allowing reliable performance in industrial and commercial environments. The product is RoHS and RoHS II compliant, ensuring environmental safety. Packaging in tape and reel format supports high volume automated SMT assembly processes.

Applications include wireless communication modules, wearable electronics, industrial instrumentation, and other embedded systems requiring stable, low-frequency clock sources. Low profile 2-pin surface mount crystal. Standard frequency 32.768 kHz with ±20 ppm tolerance.

Operating temperature range from -40°C to +85°C for industrial use. 4 pF load capacitance and 90 kΩ series resistance. RoHS compliant for environmental safety. Compact 1.6 mm x 1.0 mm x 0.5 mm tuning fork package. Tape and reel packaging suitable for automated assembly.

The Abracon ABS05-32.768kHz-X-T5 crystal is an essential component for electronics manufacturers targeting low power, compact, and reliable timing solutions. Explore more crystal units in the Electronics Components category at EnvMart for your industrial and commercial applications.
