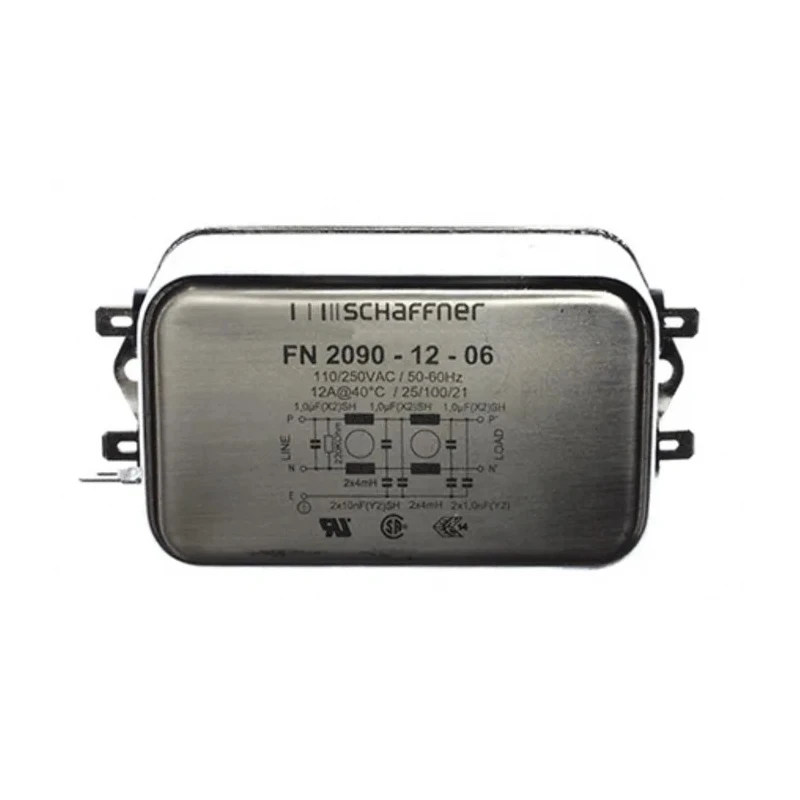

Schaffner 12 A 250V ac/dc Chassis Mount 1 Phase EMI Filter Fast-On Termination FN2090

Schaffner FN2090 EMI Filter is a specialized chassis mount 1-phase filter designed for industrial and electronic systems requiring effective suppression of electromagnetic interference. Rated at a maximum current of 12 A and suitable for voltages up to 250 V ac/dc, it supports operating frequencies from 0 to 400 Hz, making it versatile for various electrical environments.

The device includes a two-stage filtration system delivering high differential and common-mode attenuation, ensuring reliable noise protection in sensitive electronic applications. Its fast-on termination style provides ease of installation and secure connectivity, ideal for rapid assembly and maintenance in complex systems.

With a compact form factor measuring 113.5 mm in length, 57.5 mm in depth, and 45.4 mm in height, the filter mounts efficiently on chassis, minimizing space usage while maintaining high performance. The capacitance of 10 nF, inductance of 4 mH, and resistance of 220 kΩ contribute to its electrical noise filtering efficiency.

The filter operates safely across a broad temperature range from -25°C to 100°C and maintains a low leakage current of 1.02 mA with a modest power loss of 12.1 W, ensuring energy efficiency and reliability in continuous operation.

Typical use cases include integration into electrical and electronic equipment, consumer products, household devices, building automation systems, machinery, medical equipment, data processing, and office automation, where high EMI suppression is critical.

This filter features fast-on termination for quick and reliable connection. It operates effectively within a frequency range of 0 to 400 Hz. Designed with a two-stage filtering system to ensure superior EMI attenuation. Constructed for operation in temperatures ranging from -25°C to 100°C.

The filter incorporates a capacitance of 10nF and an inductance of 4mH for enhanced noise suppression. Compact and robust chassis mount design with precise dimensions. Leakage current is low at 1.02 mA ensuring minimal power loss of 12.1 W.

Manufactured in Thailand with strict quality control. Product condition is new, ready for immediate integration into systems.

Schaffner EMI filters are globally recognized for reliability and performance in demanding industrial and commercial settings. Explore more EMI Filter products on EnvMart to suit your specific application needs.
