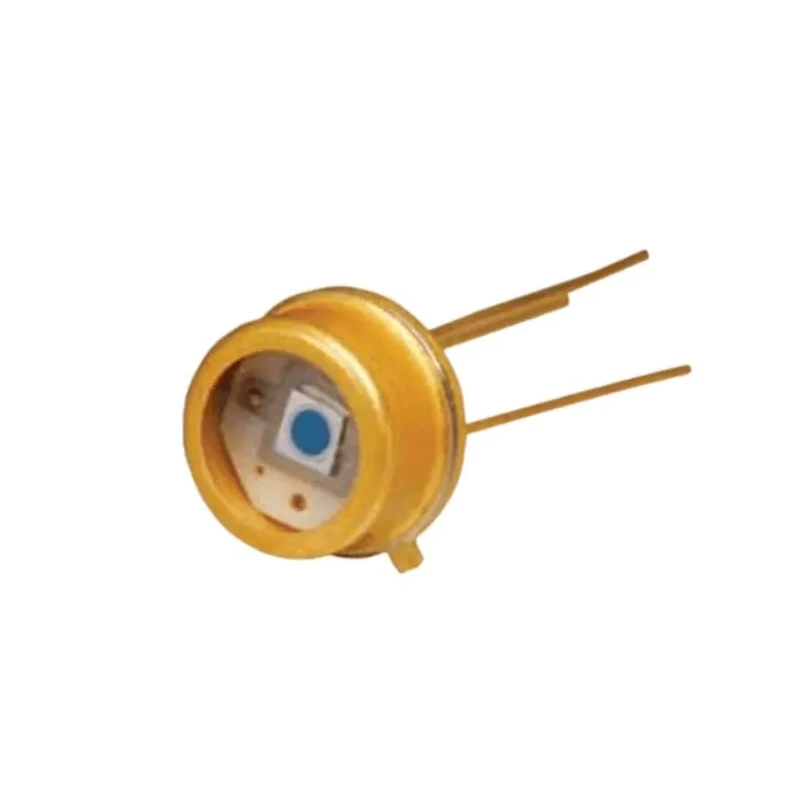

OSI Optoelectronics Infrared Photodiode Through Hole Mount, Wavelength 1100-1620nm, 65° Angle, FCI-InGaAs-3000-20
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 9.14mm |
| Brand | OSI Optoelectronics |
| Height | 4.7mm |
| Length | 8mm |
| Model | FCI-InGaAs-3000-20 |
| Packaging | Tape & Reel |
| Width | 5mm |
| Mount Type | Through Hole |
| Series | FCI-InGaAS |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -25°C |
| Polarity | Reverse |
| Dark Current | 0.2nA |
| Standards/Approvals | RoHS |
| Number of Pins | 2 |
| Typical Fall Time | 0.6ns |
| Wavelength of Peak Sensitivity | 1550nm |
| Spectrums Detected | Infrared |
| Breakdown Voltage | 30V |
| Minimum Wavelength Detected | 1100nm |
| Maximum Wavelength Detected | 1620nm |
| Angle of Half Sensitivity | 65 ° |
Key Features
- Detects infrared spectrum with peak sensitivity at 1550 nm.
- Through hole mount type suitable for robust electronic assembly.
- Wide wavelength detection range from 1100 nm to 1620 nm.
- Has a 65° half sensitivity angle providing good angular response.
- Features low dark current of 0.2 nA ensuring precision detection.
- Non-amplified device ideal for optical instrumentation and IR sensing.
- Operating temperature range from -25 °C to 85 °C for versatile use.
- Packaged in tape & reel format for efficient automated handling.
Product Description
OSI Optoelectronics presents the FCI-InGaAs-3000-20 infrared photodiode, a high-performance sensing component designed for precise detection applications. It operates effectively within a spectral range spanning 1100 nm to 1620 nm, with a peak sensitivity wavelength of 1550 nm, making it well-suited for infrared instrumentation and monitoring.
This photodiode integrates a through hole mounting style offering robust mechanical stability, enclosed in industry-standard TO-46 or TO-5 packages. The device features a broadband double-sided anti-reflective coated flat window enhancing its responsivity.
Its 65° angle of half sensitivity ensures adequate angular detection capabilities, while the dark current of only 0.2 nA contributes to low noise and precision signal detection. Typical rise and fall times are 0.6 ns each, supporting fast response in optical measurement setups.
Constructed with a durable design, the photodiode measures 8 mm in length, 5 mm in width, 4.7 mm in height, and features an active area diameter of 9.14 mm. It is rated for operation between -25 °C and 85 °C, suitable for varied industrial and laboratory environments.
This component complies with RoHS directives and is supplied in tape and reel packaging for streamlined production usage. It is ideal for applications such as optical instrumentation, power measurement, infrared sensing, and medical device integration.
Detects infrared spectrum with peak sensitivity at 1550 nm. Through hole mount type for solid mechanical fitment. Wide spectral range from 1100 nm to 1620 nm. 65° angle of half sensitivity for angular reception. Low dark current enhances measurement precision.
Non-amplified for reliable signal integrity. Temperature range of -25 °C to 85 °C for robust operation. Compact and graduated dimensions for versatile mounting. RoHS compliant for environmental and safety standards. Packaged on tape & reel for manufacturing efficiency.
Explore EnvMart categories and brands for a wide selection of Photodiodes and electronic components suitable for industrial, laboratory, and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This photodiode detects wavelengths ranging from 1100 nm to 1620 nm, with peak sensitivity at 1550 nm.
It has a 65° angle of half sensitivity, which provides good angular response for detection.
The maximum operating temperature for this photodiode is 85 °C.
The dark current of this model is 0.2 nA, ensuring precision detection with low noise.
The photodiode measures 8 mm in length, 5 mm in width, and 4.7 mm in height, with an active area diameter of 9.14 mm.
It features a through hole mounting type, suitable for robust electronic assembly.
This photodiode has typical rise and fall times of 0.6 ns each, supporting fast response in optical measurement setups.
Yes, this photodiode complies with RoHS directives, ensuring it meets environmental and safety standards.
It is packaged in a tape and reel format, which facilitates efficient automated handling during production.
The minimum operating temperature for this photodiode is -25 °C, allowing for versatile use in various environments.
This model has 2 pins, which are used for connection in electronic circuits.
It is suitable for applications such as optical instrumentation, power measurement, infrared sensing, and medical device integration.
