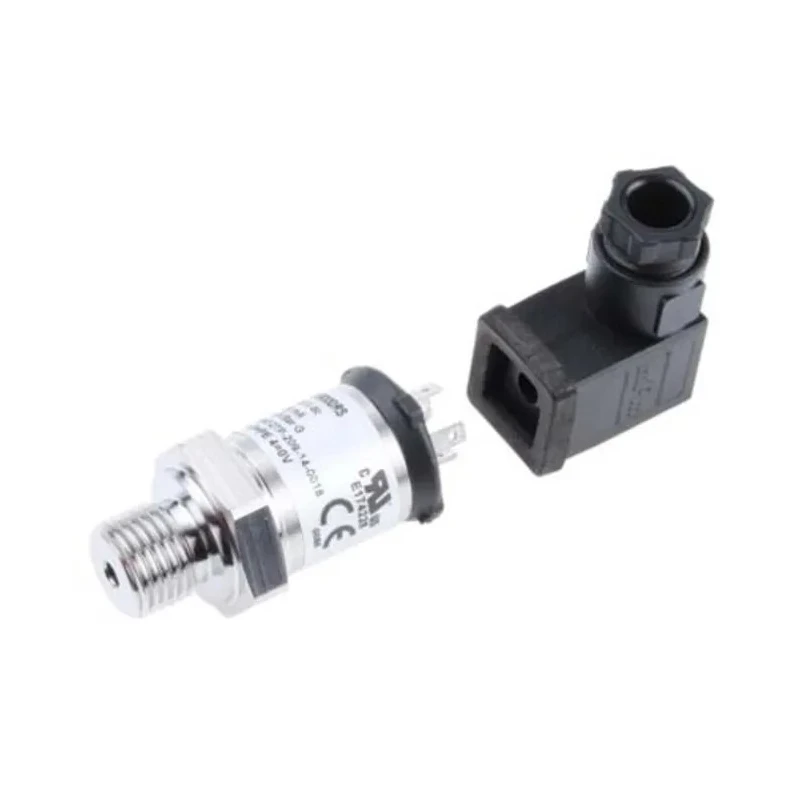

Gems Sensors 3100 Series Analogue Output Pressure Sensor 0 bar Min, 700 bar Max, Relative, Accuracy 0.25 % 3100R0700S01B000

Gems Sensors 3100R0700S01B000 is a high-performance analogue output pressure sensor designed to deliver reliable relative pressure measurements in industrial and automation applications. This sensor provides an accurate pressure range from 0 bar minimum up to a maximum of 700 bar, with a precision accuracy of ±0.25% full scale.

The device is built with 17-4 PH stainless steel wetted parts, ensuring excellent corrosion resistance and suitability for measuring various media including air, hydraulic oil, hydraulic fluid, and oil. It is engineered to maintain performance under operating temperatures ranging from -40°C to 125°C, making it well-suited for harsh industrial environments.

Equipped with a swift 1 millisecond response time, this pressure sensor ensures timely detection and transmission of pressure changes, enhancing system responsiveness. The power supply range is broad, from 8V to 30V, providing compatibility with a variety of control and monitoring systems.

The sensor meets IP67 and IP65 ingress protection ratings, safeguarding its internal components from dust and water exposure, critical for outdoor or demanding conditions. Additionally, it adheres to international quality and safety standards including CE, RoHS compliance, and UL certification, ensuring trustworthy and safe operation.

This compact and rugged sensor is ideal for applications in industrial process control, automation, hydraulics, and pneumatic systems, where precise pressure monitoring is critical and installation space may be constrained.

Suitable for measuring air, hydraulic oil, hydraulic fluid, and oil media. Stainless steel wetted parts provide durability and corrosion resistance. Wide operating temperature range from -40°C to 125°C. IP67 and IP65 rated for robust environmental protection.

Fast 1 millisecond response time for rapid pressure sensing. Wide supply voltage range of 8V to 30V for flexible power options. Compact design beneficial for limited-space installations. Compliant with CE, RoHS, and UL standards for safety and quality assurance.

Explore our full range of Pressure Transmitters and related sensors to find ideal components for industrial, laboratory, HVAC, and manufacturing applications at EnvMart.
