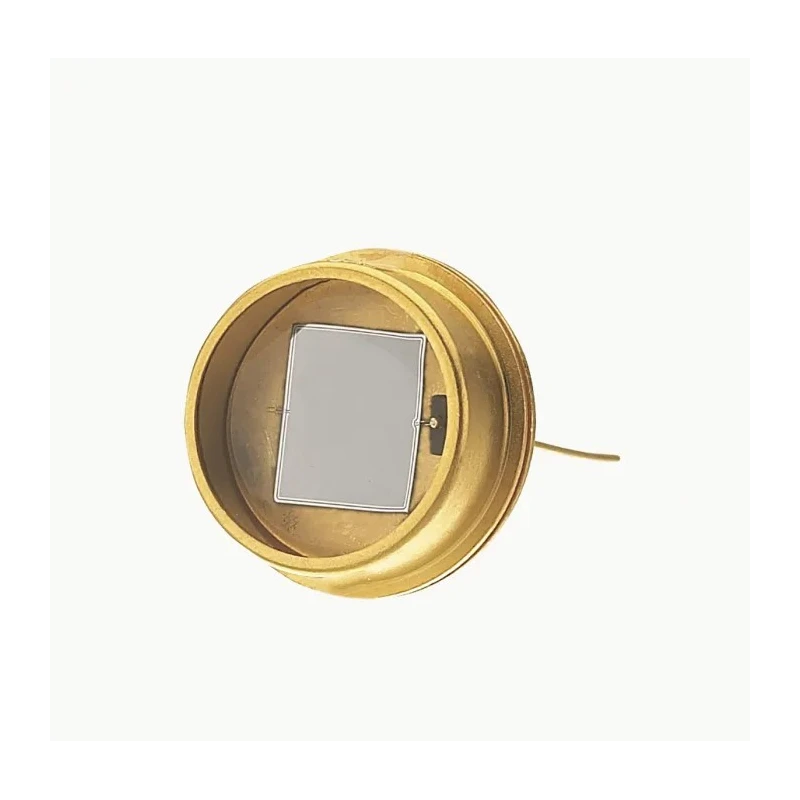

OSI Optoelectronics Infrared Photodiode PIN-44D, 65 ° Angle of Half Sensitivity, Through Hole Mount, TO-8 Package PIN-44D
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 13.97mm |
| Brand | OSI Optoelectronics |
| Height | 0.205in |
| Length | 8mm |
| Model | PIN-44D |
| Packaging | Tape & Reel |
| Width | 5mm |
| Mount Type | Through Hole |
| Series | Pin |
| Maximum Operating Temperature | 85°C |
| Package Type | TO-8 |
| Minimum Operating Temperature | -25°C |
| Polarity | Reverse |
| Dark Current | 1nA |
| Standards/Approvals | RoHS |
| Number of Pins | 2 |
| Typical Rise Time | 24ns |
| Typical Fall Time | 0.6ns |
| Wavelength of Peak Sensitivity | 970nm |
| Spectrums Detected | Infrared |
| Breakdown Voltage | 30V |
| Minimum Wavelength Detected | 350nm |
| Maximum Wavelength Detected | 1100nm |
| Angle of Half Sensitivity | 65 ° |
| OSI Optoelectronics PIN-44D Infrared Photodiode, 65 °, Through Hole TO-8Brand | OSI Optoelectronics |
Key Features
- This photodiode detects infrared spectrums with a peak sensitivity wavelength of 970nm.
- It has a low dark current of 1nA and a breakdown voltage of 30V.
- Packaging is available in tape and reel format for easy assembly.
- The device has operating temperature ranges from -25°C to 85°C.
- Typical rise time is 24ns and fall time is 0.6ns for precise optical detection.
- The photodiode features reverse polarity and is RoHS compliant for environmental safety.
- This product is ideal for pulse detectors, optical communications, bar code readers, and medical equipment.
- The device has a diameter of 13.97mm, width of 5mm and length of 8mm suitable for compact installations.
Product Description
OSI Optoelectronics PIN-44D Infrared Photodiode is a through hole mounted device packaged in TO-8 with a 65 ° angle of half sensitivity. It provides high speed response and low capacitance, making it suitable for sensitive infrared detection.
This photodiode covers a wavelength detection range from 350nm to 1100nm with peak sensitivity at 970nm. It operates efficiently within a temperature range of -25°C to 85°C ensuring reliability under varied conditions.
The PIN-44D features a low dark current of 1nA and a breakdown voltage rating of 30V, providing stability and low noise in optical sensing applications. Its typical rise and fall times of 24ns and 0.6ns respectively enable rapid signal detection and response.
Packaged in tape and reel format, the device facilitates automated assembly in manufacturing. The TO-8 package dimensions of 5mm width, 8mm length, and 13.97mm diameter ensure compact mounting footprint.
This infrared photodiode is ideal for industrial use cases including pulse detectors, optical communications, barcode readers, optical remote controls, and medical equipment applications requiring precise photometry.
Compliant with RoHS standards, this product supports environmental and safety requirements in modern electronics manufacturing. Detects infrared spectrum with peak 970nm sensitivity. Low dark current and low capacitance for signal clarity.
Robust operation over wide temperature range from -25°C to 85°C. Tape and reel packaging for manufacturing efficiency. Fast response times with 24ns rise and 0.6ns fall times. Suitable for medical, communications, and industrial sensing applications.
TO-8 through hole package with compact form factor. Explore more infrared Photodiodes and optoelectronics components from OSI Optoelectronics on EnvMart to support your advanced electronics designs and industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The PIN-44D photodiode has a peak sensitivity wavelength of 970nm, making it suitable for detecting infrared spectrums.
This model operates efficiently within a temperature range of -25°C to 85°C, ensuring reliability under varied conditions.
The typical rise time for the PIN-44D is 24ns, while the fall time is 0.6ns, allowing for rapid signal detection and response.
The device is packaged in tape and reel format, facilitating automated assembly in manufacturing processes.
The PIN-44D has a breakdown voltage rating of 30V, providing stability in optical sensing applications.
This photodiode features a low dark current of 1nA, contributing to low noise in optical sensing applications.
The TO-8 package has a diameter of 13.97mm, a width of 5mm, and a length of 8mm, ensuring a compact mounting footprint.
This photodiode is ideal for applications such as pulse detectors, optical communications, barcode readers, and medical equipment.
The angle of half sensitivity for this model is 65°, allowing for effective detection in specific orientations.
Yes, the PIN-44D is RoHS compliant, supporting environmental and safety requirements in electronics manufacturing.
This photodiode can detect infrared spectrums, covering a wavelength detection range from 350nm to 1100nm.
