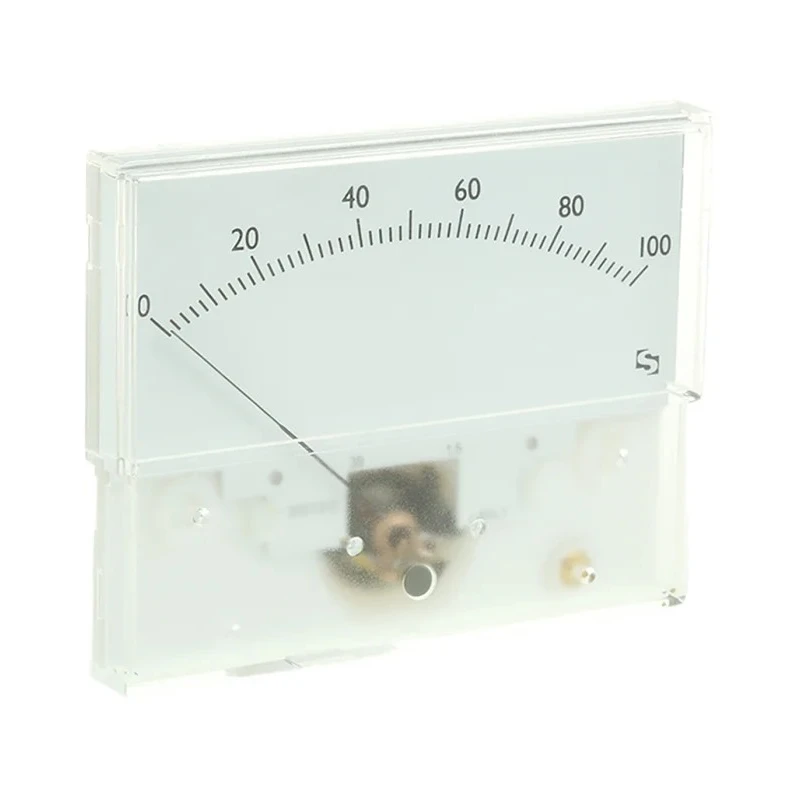

Sifam Tinsley Analogue Panel Ammeter 25 A DC, ±1.5 % Accuracy, 40.5 mm x 91.5 mm IS 11012

Sifam Tinsley IS 11012 Analogue Panel Ammeter is a precision instrument designed for DC current measurement up to 25 amperes. Featuring a moving coil mechanism, this ammeter provides an accuracy of ±1.5 %, making it suitable for industrial, laboratory, and process control applications requiring reliable current readings.

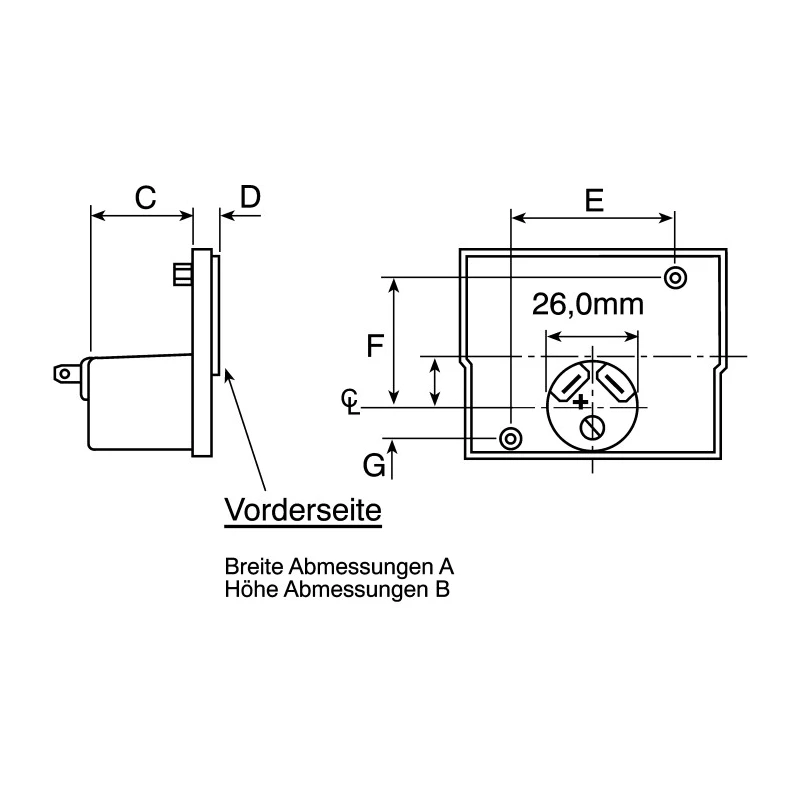

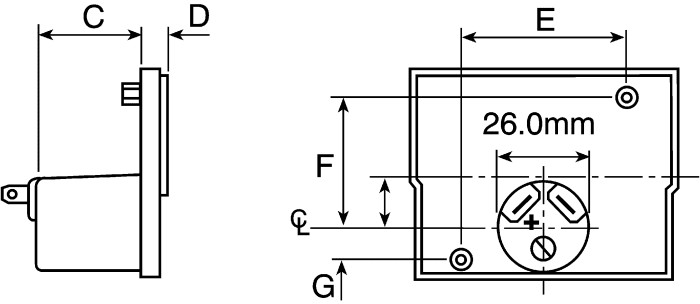

The instrument measures 40.5 mm in height and 91.5 mm in width, fitting compactly into panel cut-outs. Its depth is 30.2 mm, offering a low-profile design that facilitates installation in tight spaces. The ammeter supports operation across a temperature range from -25°C to +55°C, ensuring robustness in diverse environmental conditions.

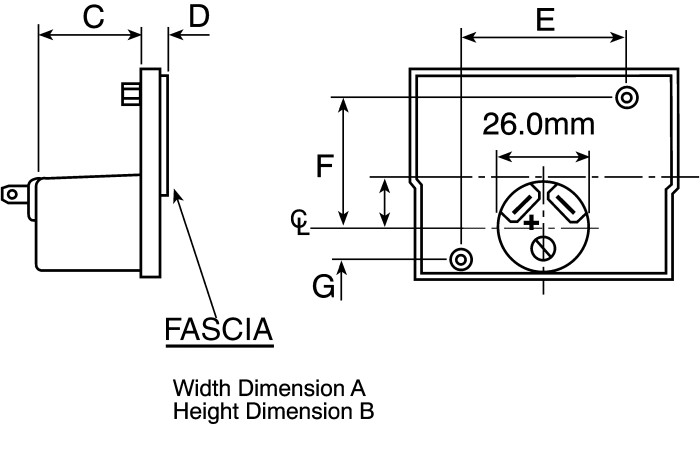

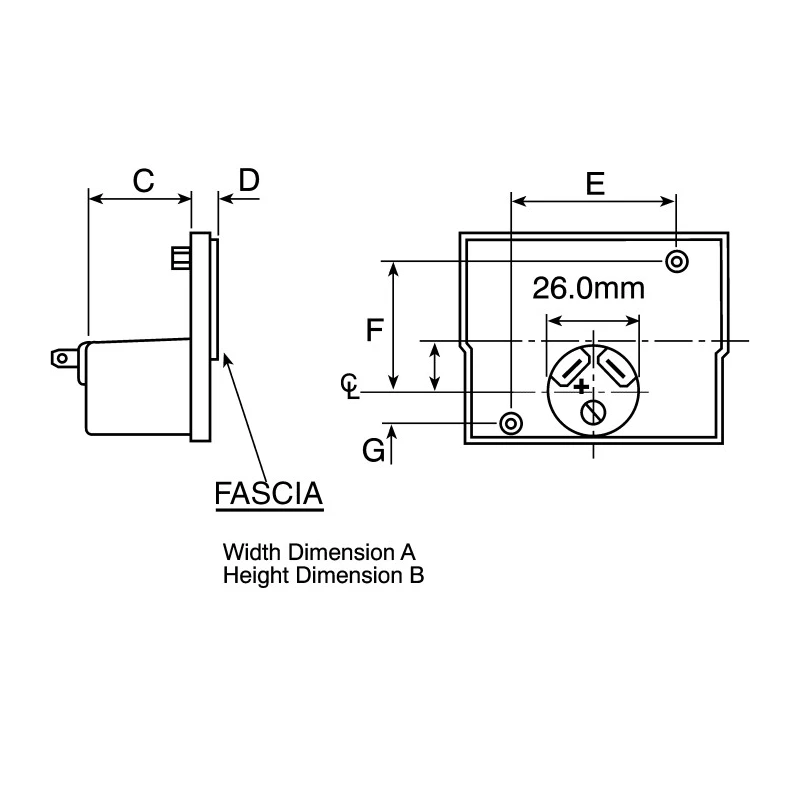

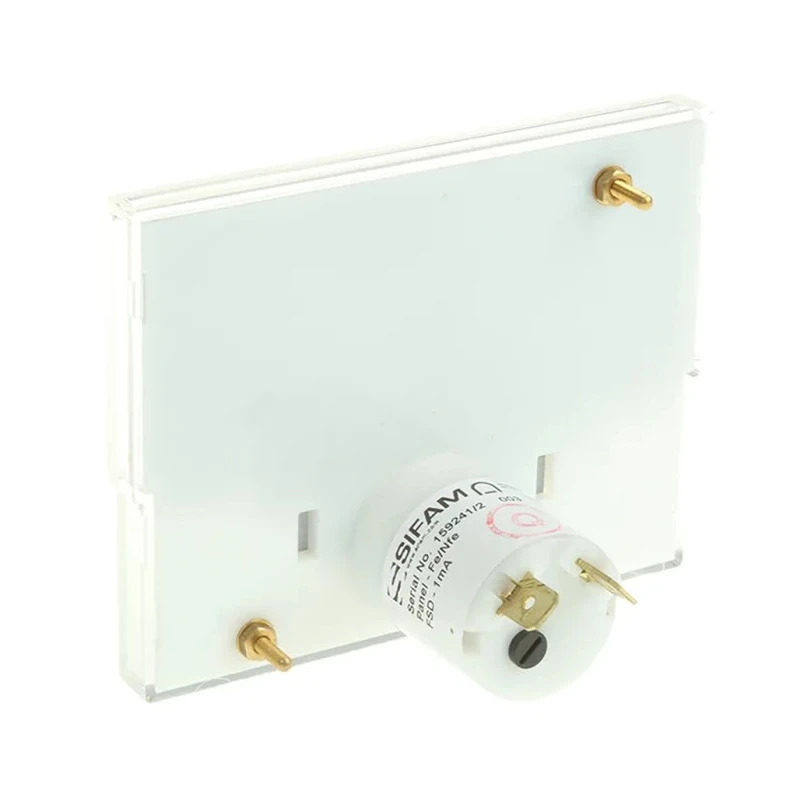

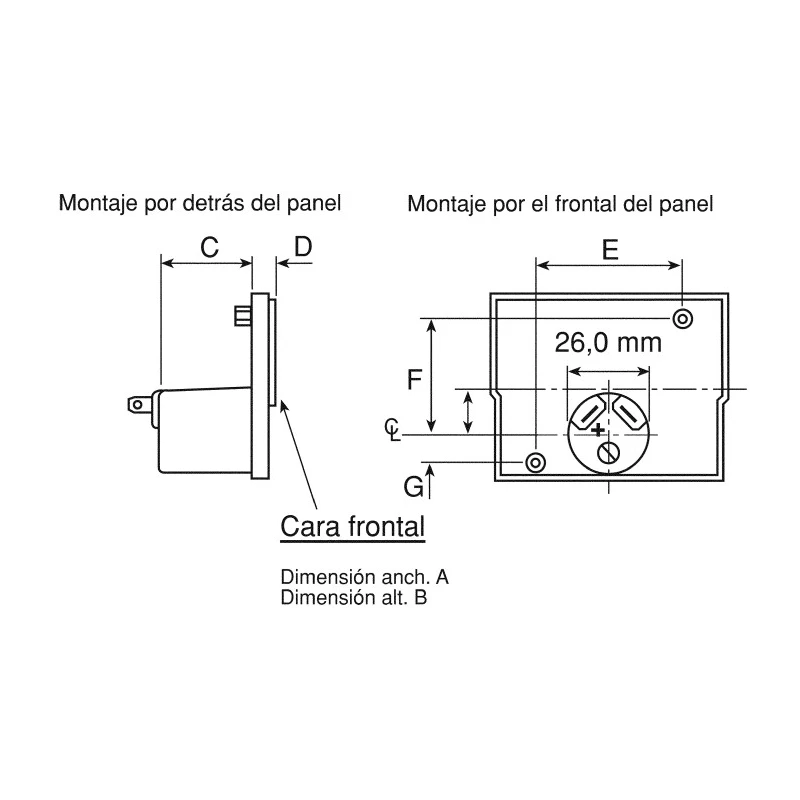

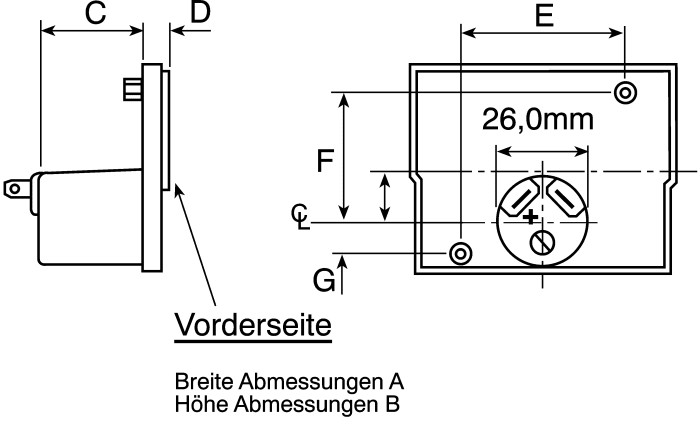

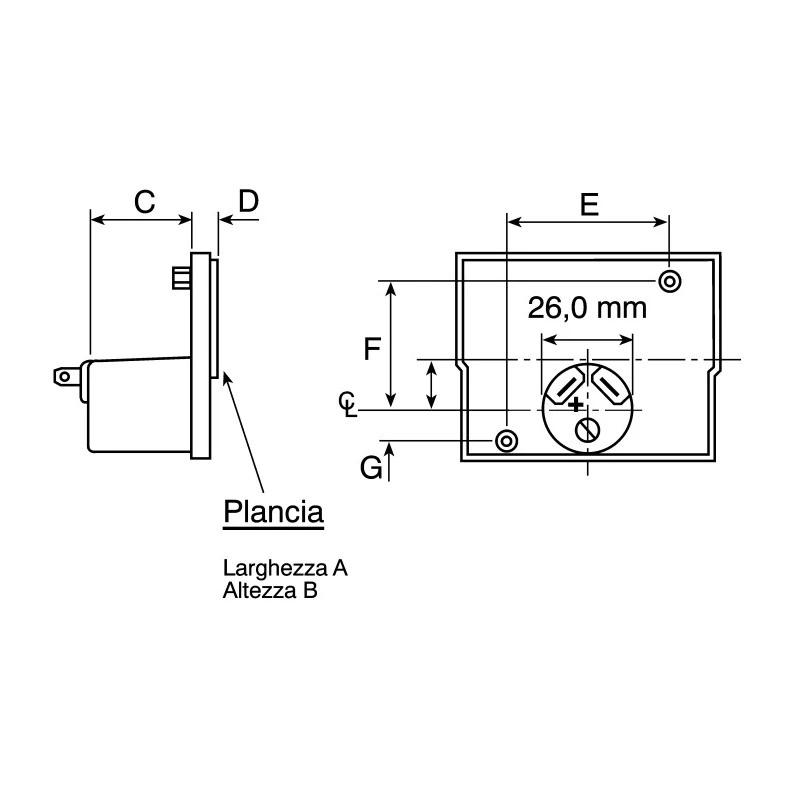

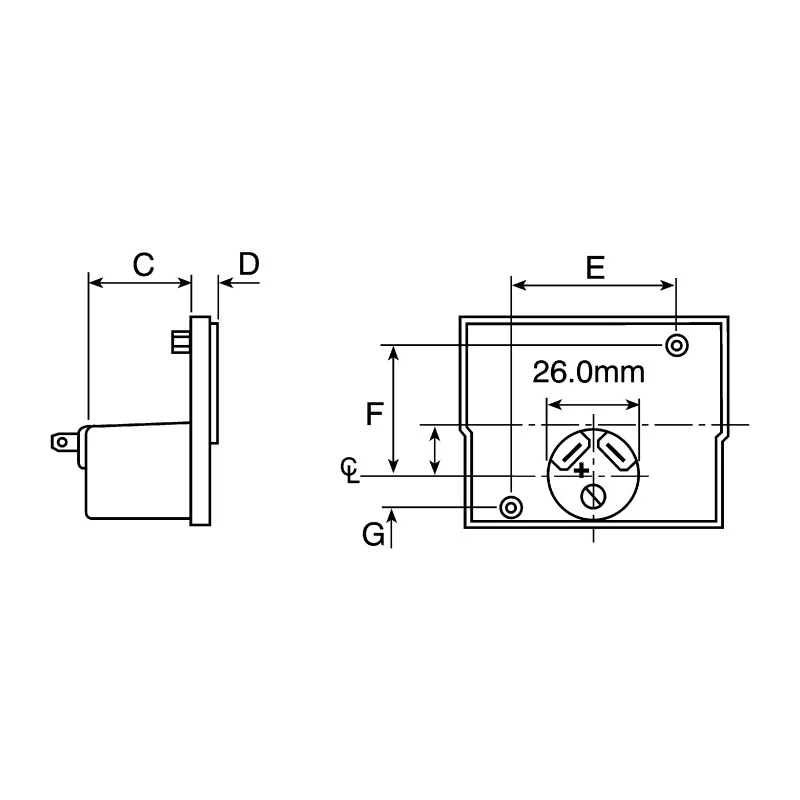

Installation is streamlined through front mounting on a 27 mm diameter panel cut-out with maximum panel thickness of 4 mm, and rear mounting options accommodate slightly thicker panels up to 6 mm. Electrical connections are made through secure 6 mm tag terminals, allowing efficient wiring and maintenance.

This model adheres to recognized standards including BS89, BS3693, IEC 51, ANSI C39.1, and EN60051, confirming its compliance with industry benchmarks for measurement instruments. The fixing studs are specified as M2 x 10.0 mm and M2.5 x 10.0 mm based on panel dimensions, ensuring a reliable and stable mount.

Designed for DC current measurement with a maximum ampere value of 25 A. Operates within a temperature range of -25°C to +55°C for versatile use. Compact dimensions (40.5 mm x 91.5 mm) suit panel mount installations. Features a moving coil element delivering ±1.5 % measurement accuracy.

Built to comply with multiple international standards for quality and safety. Facilitates easy electrical connection via 6 mm tag terminals. Includes flexible fixing stud sizes for robust installation support.

Ideal for industrial automation, electrical panels, and process control setups, the Sifam Tinsley IS 11012 Panel Ammeter offers reliable performance and durability. Explore additional metres and control equipment in the Automation & Control Gear category on EnvMart.
