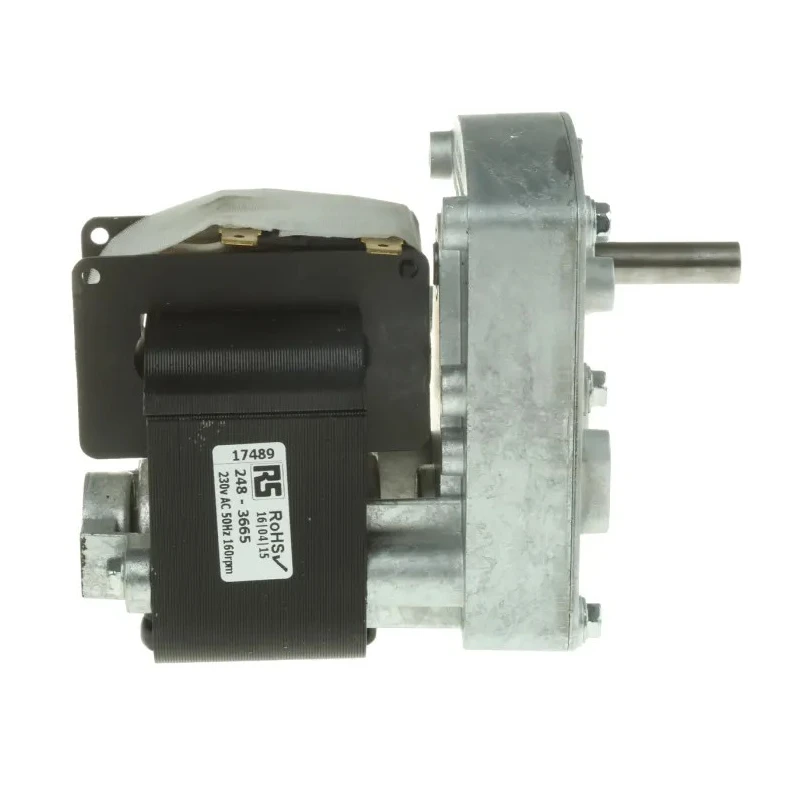

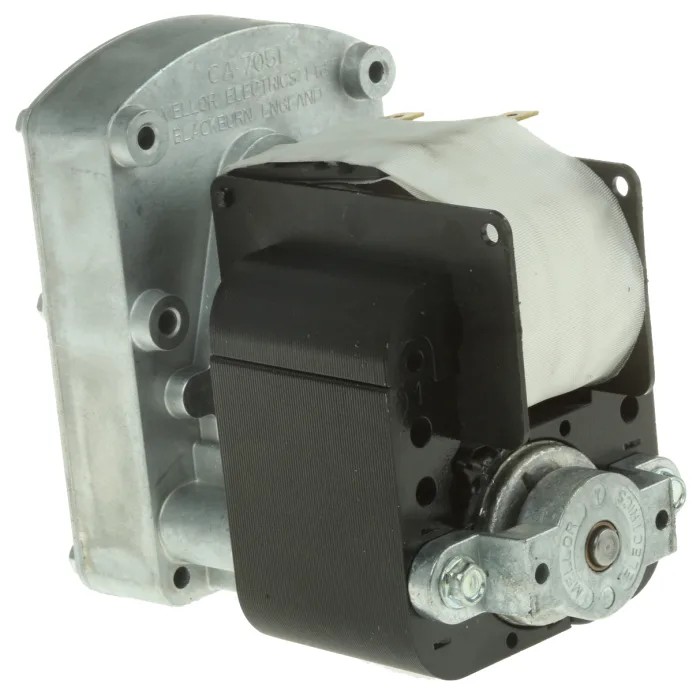

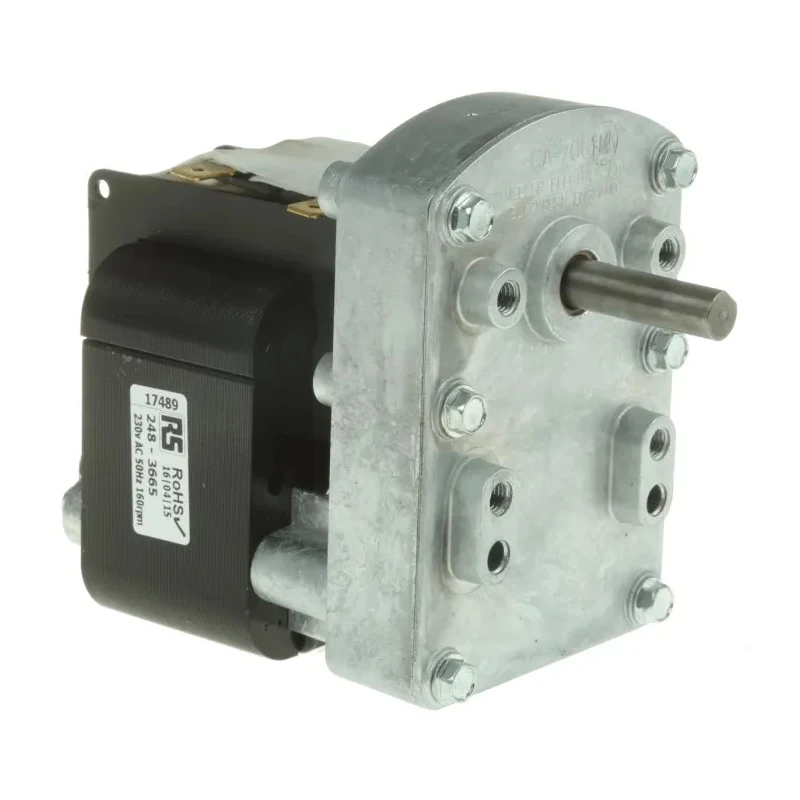

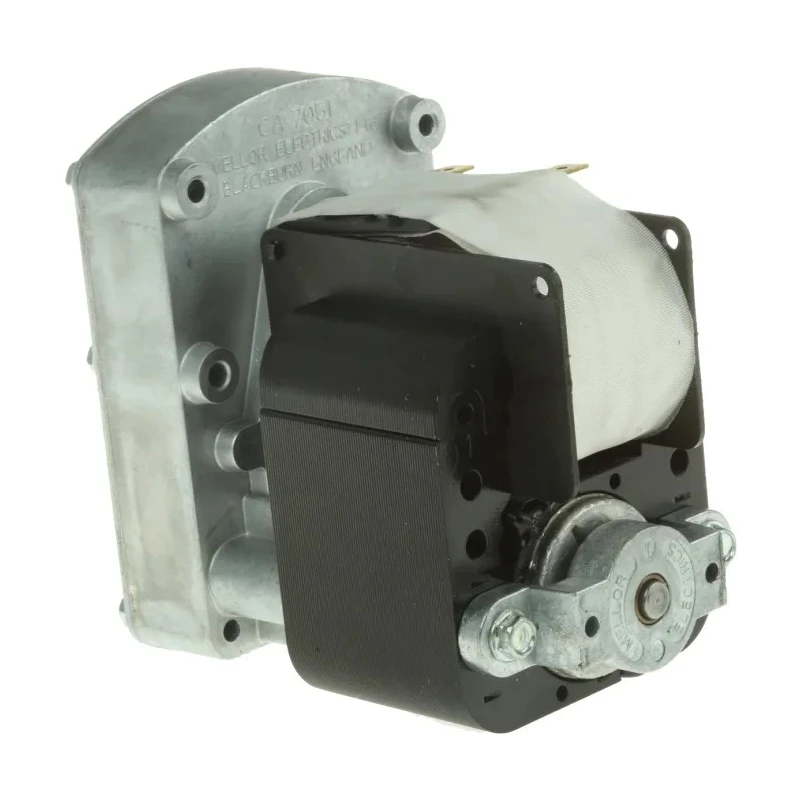

Mellor Electric UB T6 Clockwise Spur AC Geared Motor 230V 24W Shaded Pole Geared UB1003
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Mellor Electric |
| Length | 62mm |
| Model | UB1003 |
| Depth | 73mm |
| Width | 50mm |
| Rotation | Clockwise |
| Series | UB T6 |
| Power Rating | 24W |
| Sub Type | Shaded Pole Geared |
| Output Speed | 160rpm |
| Shaft Length | 31mm |
| Supply Voltage | 230V |
| Standards/Approvals | RoHS |
| Maximum Output Torque | 1.68Ncm |
| Gearhead Type | Spur |
Key Features
- This motor features a clockwise rotation for effective mechanical function.
- Powered at 24 watts with a supply voltage of 230 volts AC.
- Equipped with a spur gearhead type ensuring smooth torque transmission.
- Output speed is rated at 160 rpm, suitable for low-speed applications.
- Shaft length measures 31 mm to fit compact installations.
- The motor’s dimensions are 62 mm in length, 73 mm in depth, and 50 mm in width.
- Maximum output torque reaches 1.68 Ncm for controlled mechanical force.
- Series identified as UB T6 with a shaded pole geared subtype.
Product Description
Mellor Electric UB1003 AC Geared Motor is a shaded pole geared motor delivering 24W power at 230V supply voltage. This clockwise rotation motor features a spur gearhead type that provides a steady 160 rpm output speed, ideal for varied industrial and process equipment applications.

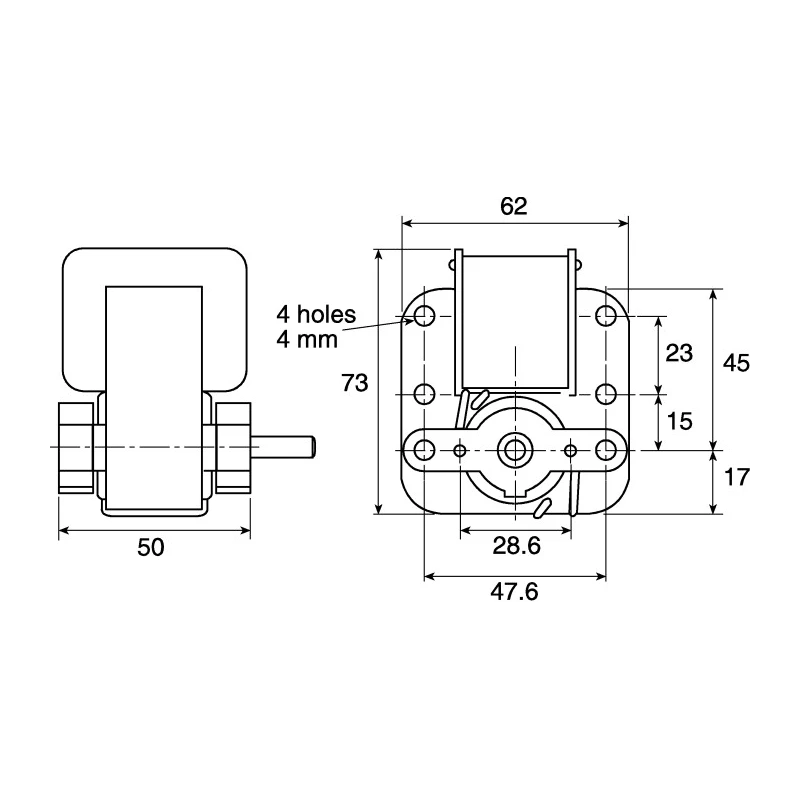

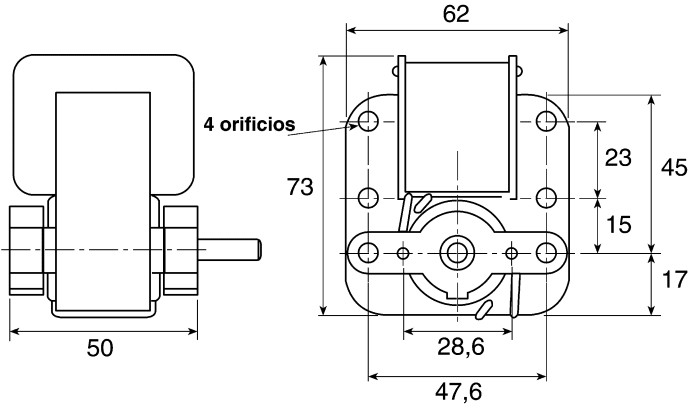

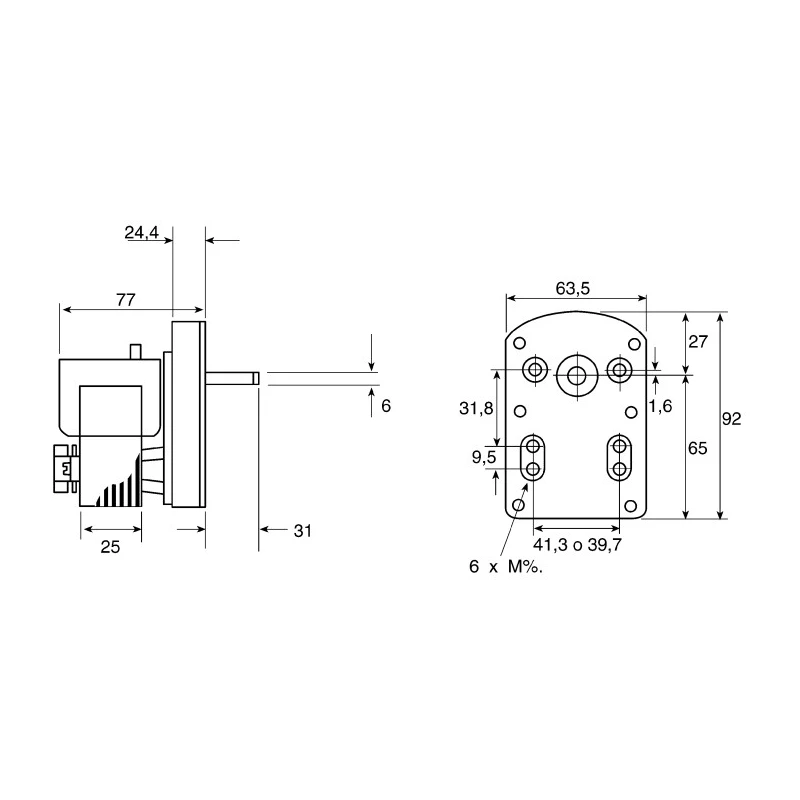

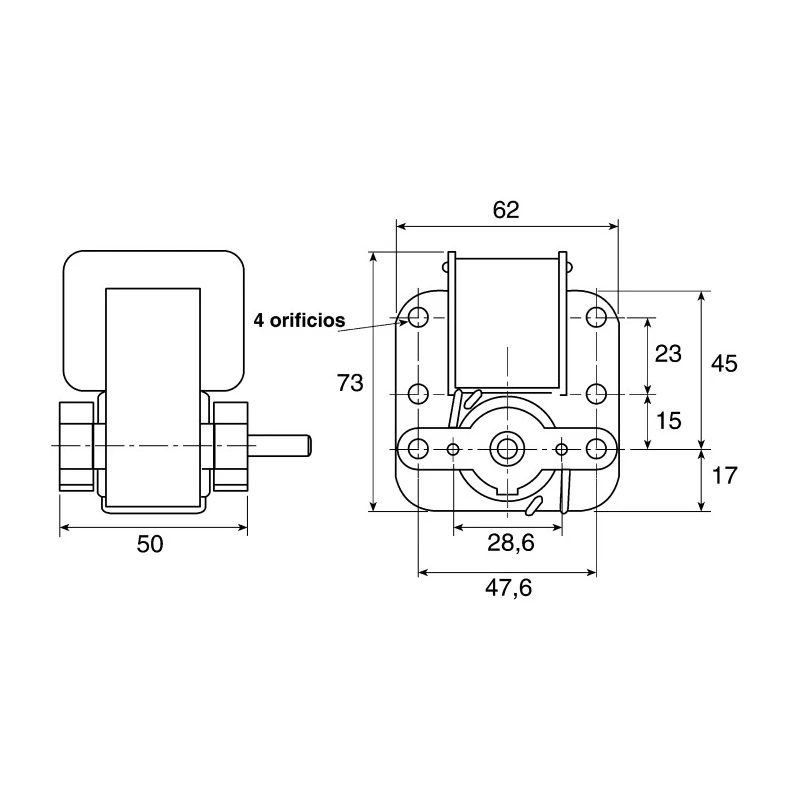

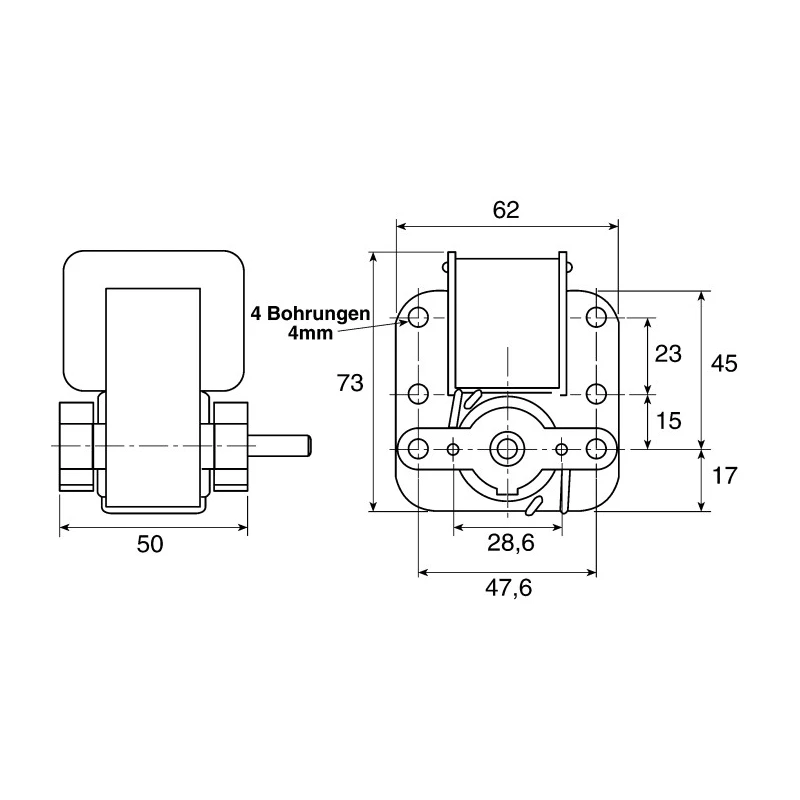

Constructed with a compact design, the motor’s physical dimensions are length 62 mm, width 50 mm, and depth 73 mm, with a shaft length of 31 mm, making it suitable for space-limited setups. It offers a maximum output torque of 1.68 Ncm, delivering reliable mechanical power for low-cost, quiet running, and durable performance.
The motor incorporates Class F insulation and thermal cut-out protection to enhance durability and safety during use. It is designed for intermittent operation, with a maximum running time of 20 minutes and a minimum off time of 40 minutes, making it suitable for test equipment and industrial process control devices that do not require continuous operation.
This model UB1003 belongs to the UB T6 series and complies with RoHS standards, reflecting its environmental compliance. Designed and manufactured in the United Kingdom, it is built for quality and efficiency.
This motor features a clockwise rotation for effective mechanical function. Powered at 24 watts with a supply voltage of 230 volts AC. Equipped with a spur gearhead type ensuring smooth torque transmission. Output speed is rated at 160 rpm, suitable for low-speed applications.
Shaft length measures 31 mm to fit compact installations. The motor’s compact dimensions support installation versatility. Maximum output torque of 1.68 Ncm for controlled mechanical force. Class F insulation and built-in thermal cut-out enhance safety.
RoHS compliant, ensuring environmental safety standards. Manufactured in the United Kingdom with quality assurance.
Applications include industrial processing equipment, test devices, automation systems requiring quiet, efficient, and compact geared motors. Explore our range of AC Motors for more options suited for industrial, laboratory, and automation needs at EnvMart.
Explore more products in our Electric Motors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The power rating of this motor is 24 watts.
The output speed is rated at 160 rpm, suitable for low-speed applications.
The maximum output torque reaches 1.68 Ncm.
This model has dimensions of 62 mm in length, 50 mm in width, and 73 mm in depth.
It is equipped with a spur gearhead type, ensuring smooth torque transmission.
The supply voltage required for this motor is 230 volts AC.
The shaft length measures 31 mm, making it suitable for compact installations.
It is designed for intermittent operation, with a maximum running time of 20 minutes and a minimum off time of 40 minutes.
The UB1003 motor complies with RoHS standards, reflecting its environmental compliance.
This motor is manufactured in the United Kingdom.
It is suitable for industrial processing equipment, test devices, and automation systems that require quiet, efficient, and compact geared motors.
The motor incorporates Class F insulation, enhancing its durability and safety during use.
