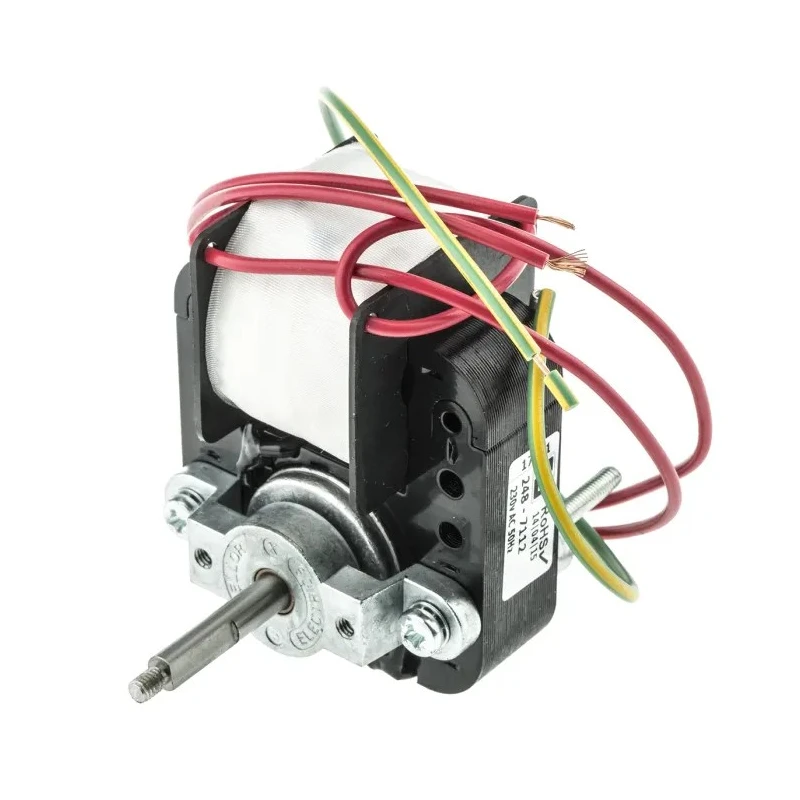

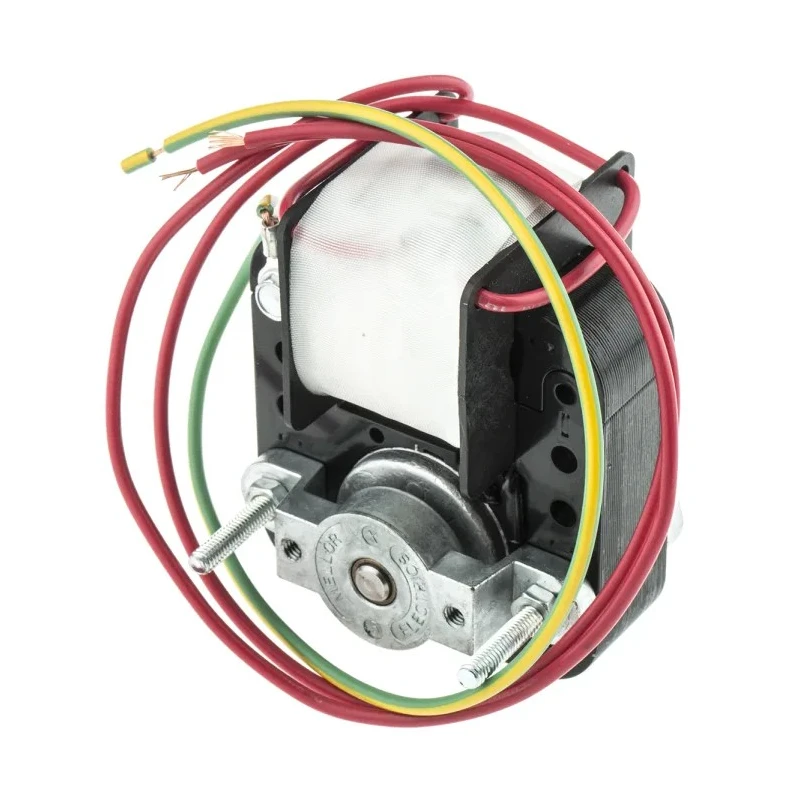

Mellor Electric AC Motor Shaded Pole 19 W 1 Phase 2-Pole 220V 260V Clockwise Rotation AC1000

The Mellor Electric AC1000 AC motor is a shaded pole motor designed for low power, small load applications such as air and liquid movement in industrial, HVAC, and automation control systems. It provides 19 W power at a supply voltage range of 220V to 260V with single-phase input, making it suitable for precise but reliable operation in various machinery.

This motor features a two-pole winding configuration running clockwise rotation with a maximum speed of 2000 rpm. The shaft is a 6 mm stainless steel extension, threaded M4 on the first 5 mm and flattened for 19 mm, ready for secure mounting and coupling.

The windings are varnish impregnated with Class F insulation and impedance protected to ensure electrical durability and resistance to interference from radio frequency and television signals. The motor is non-reversing and self-starting to simplify operation without additional control circuitry.

Ball bearings provide smooth and reliable mechanical support. The housing is compliant with RoHS standards and the UL 94-V0 rating, ensuring the motor is self-extinguishing within 10 to 15 seconds, enhancing workplace safety.

Complete with 300 mm supply leads including earth connection, the AC1000 motor is ready to integrate into electrical installations. Two versions are produced offering clockwise (CW) or anti-clockwise (ACW) rotation as viewed from the extension shaft, providing versatility in application requirements.

Manufactured with premium steel materials in the United Kingdom, this motor offers dependable performance for automation, air movement, and liquid pumping tasks within electrical, industrial, and HVAC systems.

The motor is designed for small load applications such as air and liquid movement. It features a 6 mm diameter stainless steel shaft extension with M4 threading and flat section. The windings are varnish impregnated with class F insulation and impedance protection.

This brushless motor operates at 2000 rpm with maximum output torque of 1.06 Ncm. The motor includes ball bearings and is self-starting with no reversing capability. Its housing complies with RoHS standards and is UL 94-V0 rated for self-extinguishing within 10-15 seconds.

Complete with 300 mm supply leads including earth connection for safety. The motor is manufactured in the United Kingdom with premium steel materials. This AC1000 series motor is suitable for industrial, HVAC, and automation control gear applications.
