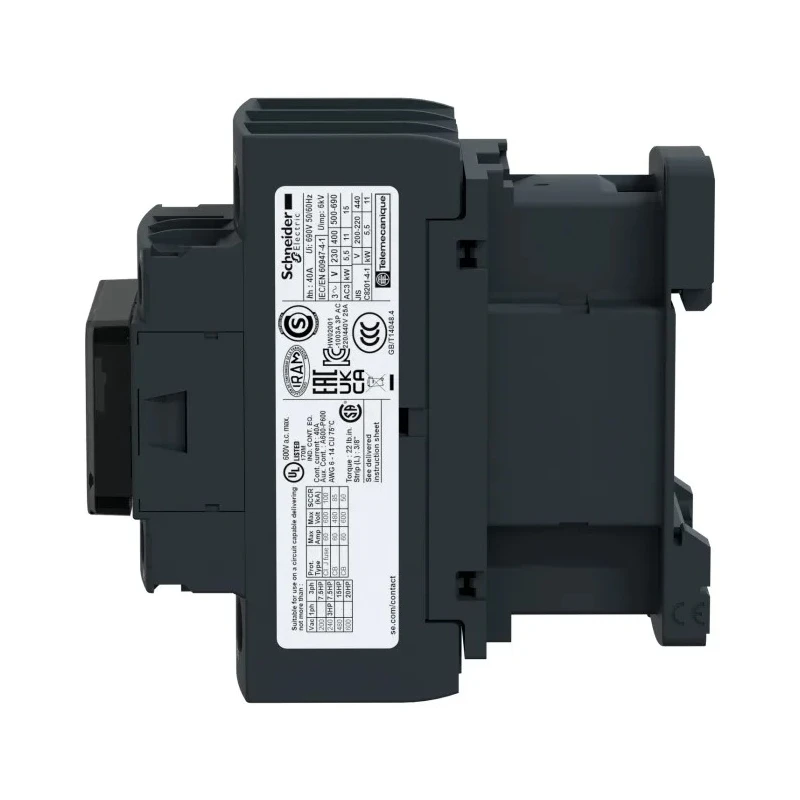

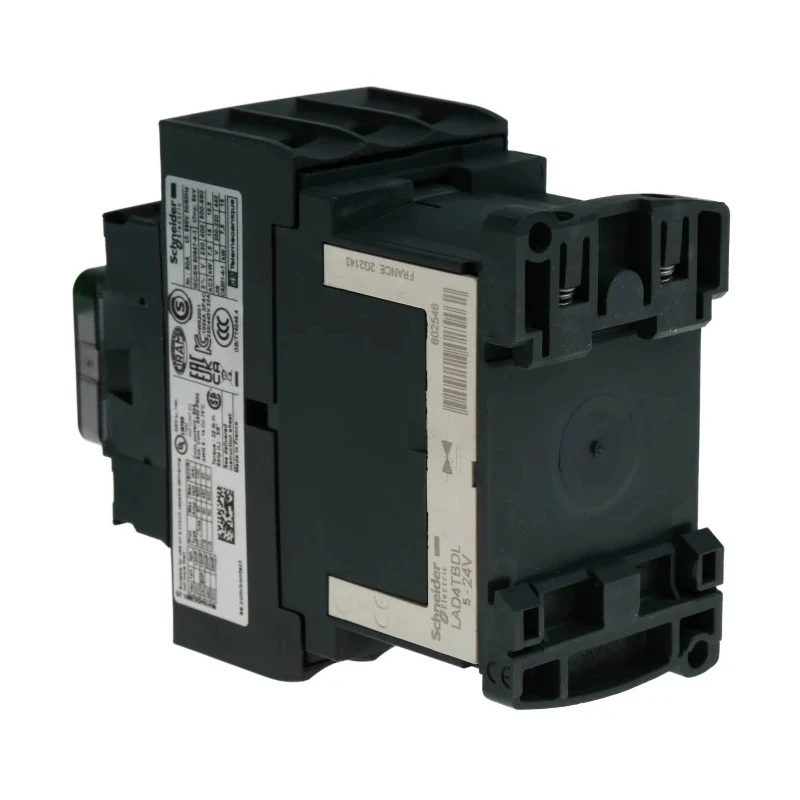

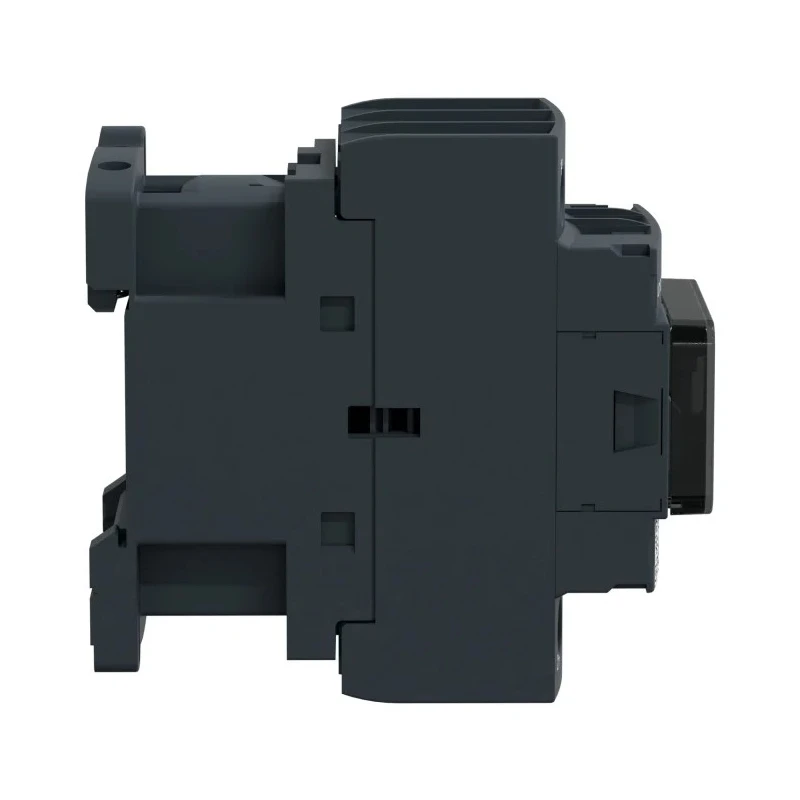

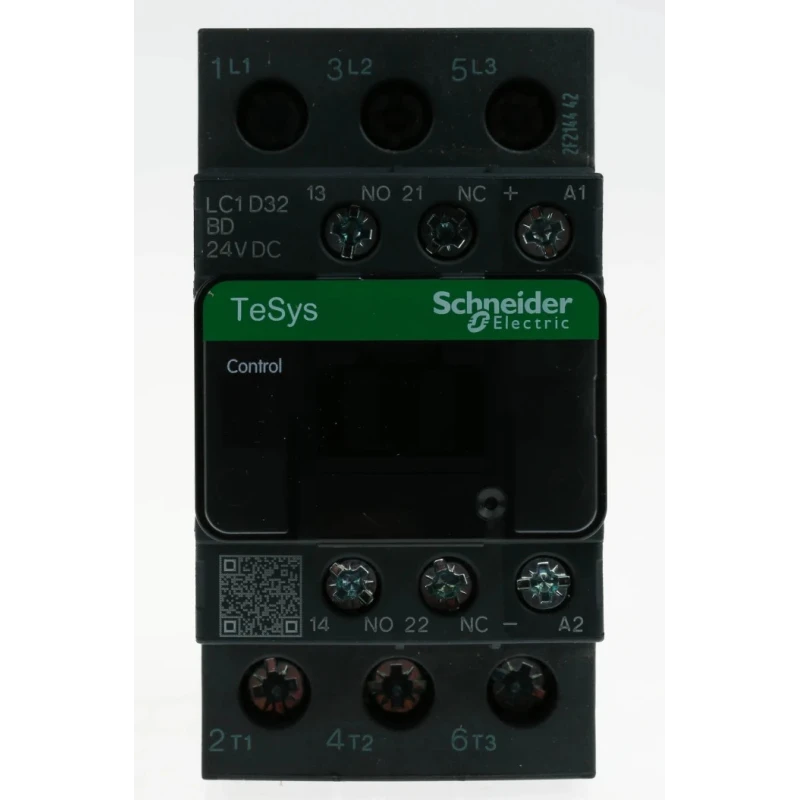

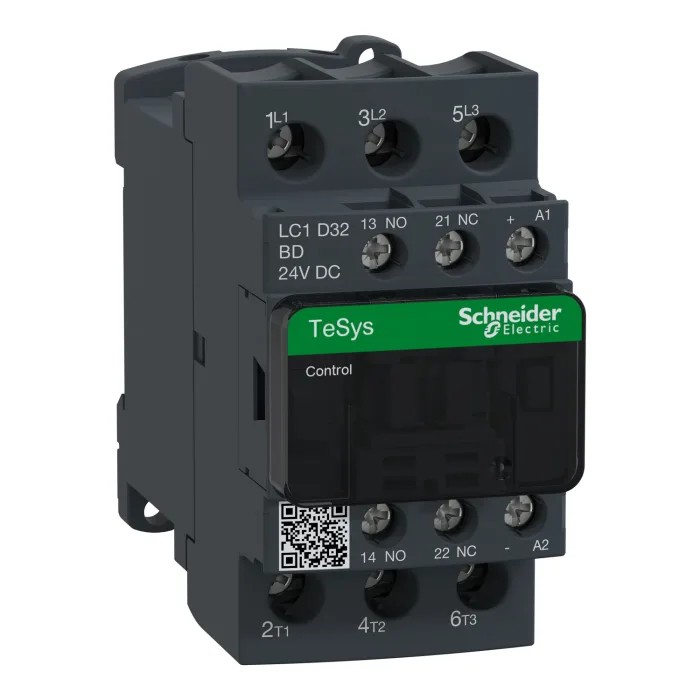

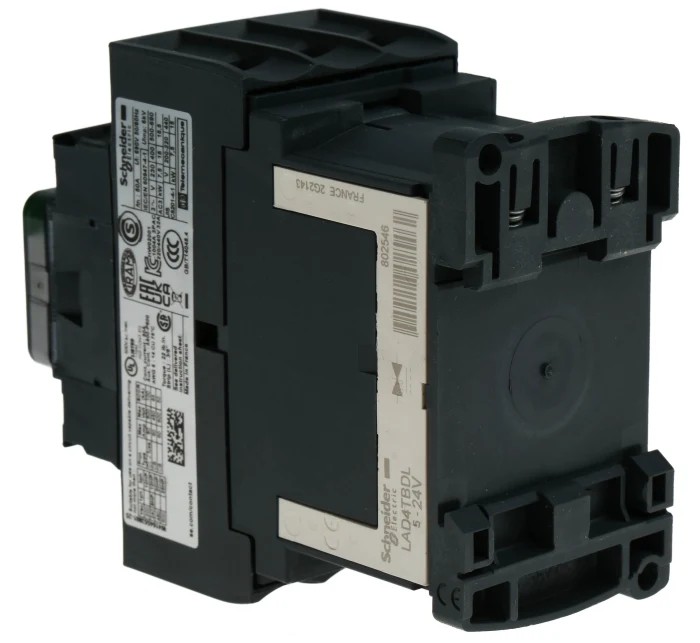

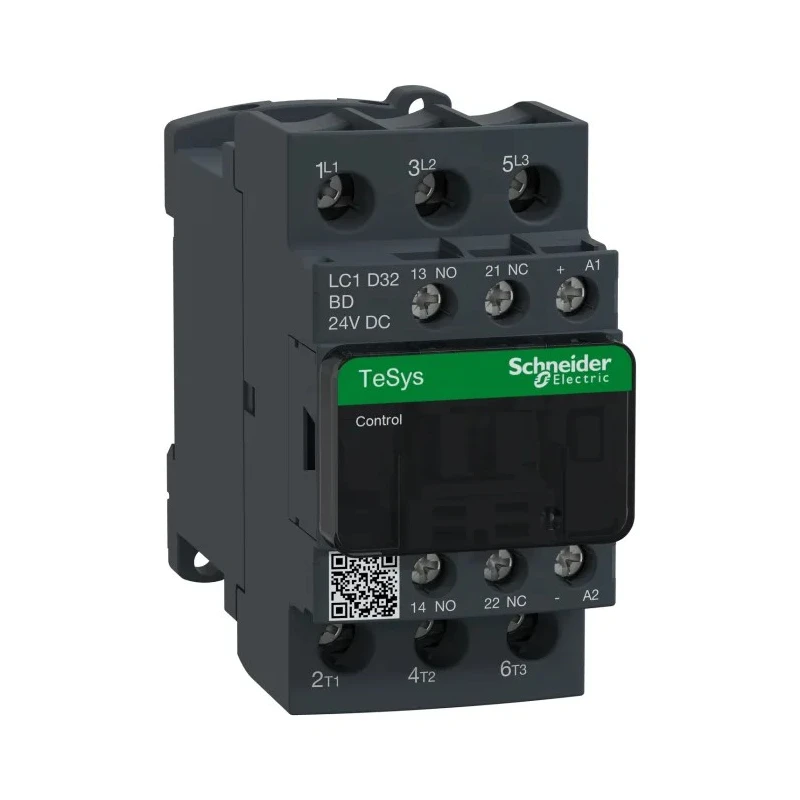

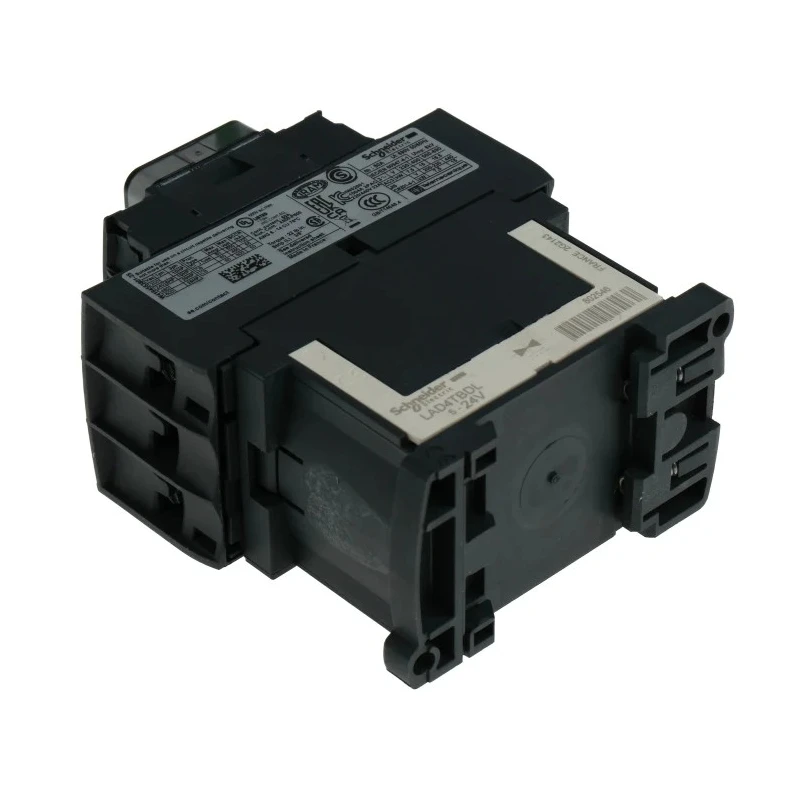

Schneider Electric Motor Control Contactor LC1D 24V DC Coil, 3-Pole, 32A, 15 kW, 690V AC

Schneider Electric LC1D32BD motor control contactor is engineered for precise and efficient switching operations in electrical motor circuits. Featuring a 24V DC coil voltage and a robust 3-pole configuration, this device reliably controls electrical loads up to 32 amperes with a power rating of 15 kW. The contactor supports a maximum contact voltage of 690V AC, accommodating a wide range of industrial applications.

Designed for durability, it operates across a temperature range from -40°C to 60°C, suitable for challenging industrial environments. The contactor includes two auxiliary contacts configured as one normally open and one normally closed for enhanced circuit control and monitoring.

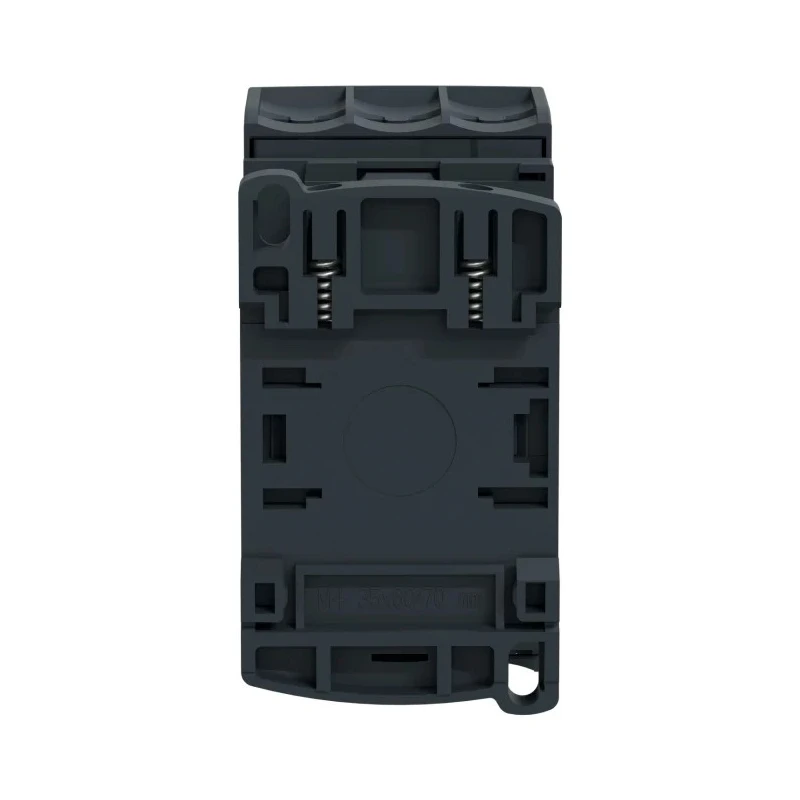

Installation is simplified with DIN rail mounting and screw terminals, ensuring secure and flexible wiring. The built-in bidirectional peak limiting diode increases coil protection and longevity. Compact dimensions (85 mm length, 45 mm width, 101 mm depth) fit seamlessly into industrial control panels.

Schneider Electric LC1D32BD meets stringent quality and safety standards including CCC, CSA, EAC, EN 60947-5-1, IEC, RoHS, and UL, certifying it for safe use in diverse global industrial markets.

Common applications include motor control systems, industrial relay switches demanding high voltage and current capacities, and safety contactor implementations in automated processes. Its reliable function in harsh environments enhances system uptime and operational safety across manufacturing, HVAC, and water treatment industries.

Operates with a 24V DC coil for reliable actuation. Designed with 3 normally open poles supporting up to 690V AC contact voltage. Capable of handling continuous current up to 32A and power load of 15 kW. Suitable for use in harsh environments with operating temperature range from -40°C to 60°C.

Easy installation on DIN rail with screw terminal connections for secure wiring. Built with auxiliary contacts configured as 1 NO and 1 NC for control circuit flexibility. Complies with major industry standards including CCC, CSA, EAC, EN 60947-5-1, IEC, RoHS, and UL.

Compact dimensions of 85 mm length, 45 mm width, and 101 mm depth ensure integration in control panels. Contains a bidirectional peak limiting diode for enhanced coil reliability. Designed and manufactured in France. Explore more Schneider Electric automation and control gear products on EnvMart to meet your industrial operational needs efficiently and reliably.
