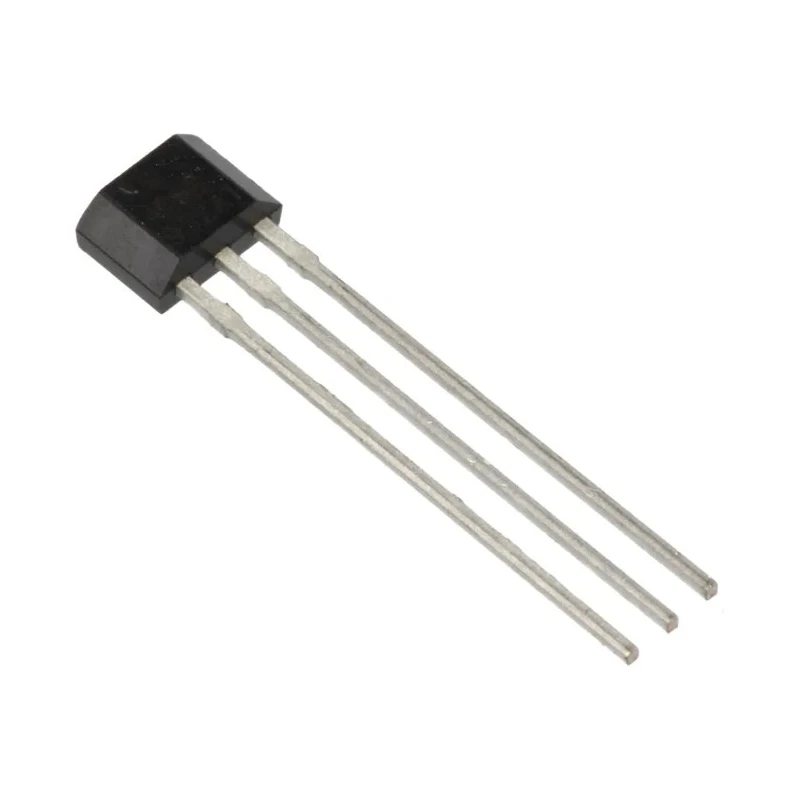

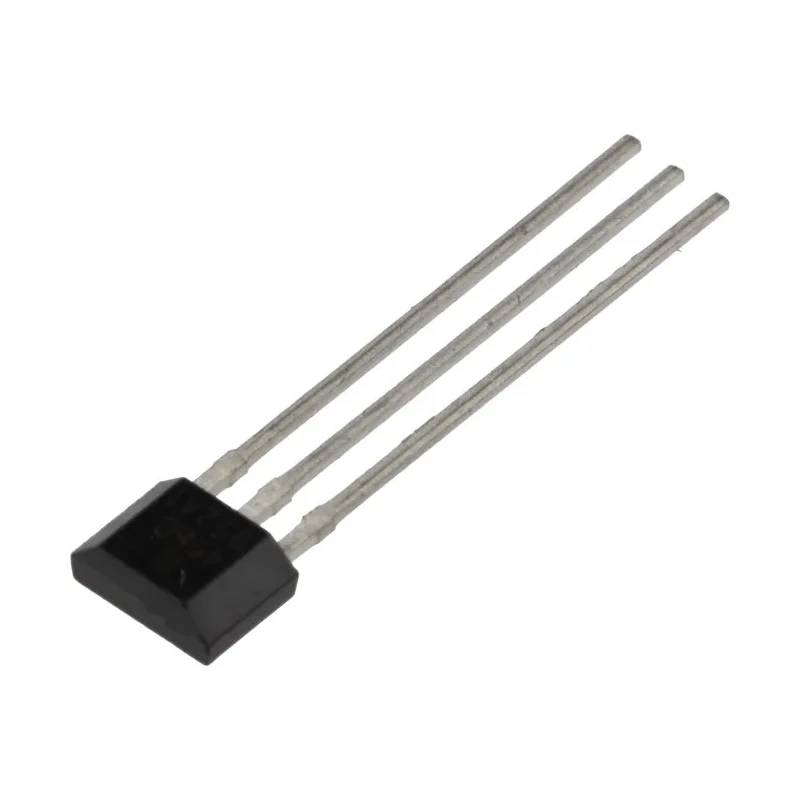

Honeywell Technologies Surface Hall Effect Sensor 3-Pin TO-92 Package - 4.5 V to 10.5 V Supply, Quad-Hall Technology SS496B

Free Delivery in India | Lowest Global Shipping Charges

Honeywell Technologies Surface Hall Effect Sensor 3-Pin TO-92 Package - 4.5 V to 10.5 V Supply, Quad-Hall Technology SS496B

Name: Honeywell Technologies Surface Hall Effect Sensor 3-Pin TO-92 Package - 4.5 V to 10.5 V Supply, Quad-Hall Technology SS496B
Brand: Honeywell
SKU: 164734
Price: 5.69 USD
Availability: InStock



Category Hall Effect Sensor Brand Honeywell Condition New

Specifications

Country of Origin	China
Brand	Honeywell
Response time	3μs
Height	1.7mm
Length	4.06mm
Model	SS496B
SENSITIVITY	25%
Technology	Quad-Hall
Sensor Type	Hall Effect
Width	3mm
Mount Type	Surface
Series	SS490
Maximum Operating Temperature	+150°C
Package Type	TO-92
Minimum Operating Temperature	-40°C
Interface Type	IC
Pin Count	3
Maximum Supply Voltage	10.5V
Minimum Supply Voltage	-4.5V
Supply Current	8.7mA
Magnetic Type	Linear

Key Features

The sensor delivers a fast 3 microseconds response time for real-time magnetic field monitoring.
Operates reliably across a wide temperature range from -40°C up to +150°C.
Compact TO-92 surface-mount IC package with three pins facilitates easy PCB integration.
Linear magnetic type ensures predictable proportional output for position and displacement sensing.
Consumes 8.7mA supply current, maintaining low power operation.
Designed for industrial automation, proximity detection, and electronic sensing applications.
Stable output suitable for control and measurement in motion control systems.

Product Description

Honeywell SS496B is a Surface Hall Effect Sensor featuring Quad-Hall technology that reduces signal variation and enhances detection consistency. This compact 3-pin IC in a TO-92 package is optimized for converting linear magnetic fields into precise electrical signals.

It operates within a supply voltage range of -4.5 V to 10.5 V and maintains functional performance across an extended temperature range from -40°C to +150°C, making it suitable for harsh industrial environments.

The sensor features a rapid 3μs response time, enabling fast switching and accurate real-time monitoring of magnetic fields. With 25% sensitivity, the device delivers predictable proportional output behavior essential for applications requiring linear displacement or position sensing.

The small form factor with a 4.06mm length, 3mm width, and 1.7mm height package supports compact board layouts with through-hole style pins for secure surface mounting. The 8.7mA supply current is efficient for continuous operation without excessive power draw.

This sensor is ideal for integration into automated actuators, proximity detection in electrical assemblies, test rig magnetic field measurements, and control electronics utilized in motion systems and machinery monitoring.

Set contains 1 Pc Honeywell Technologies Surface Hall Effect Sensor SS496B. Fast 3μs response time for real-time magnetic sensing. Wide operating voltage range from -4.5 V to 10.5 V. High temperature tolerance up to +150°C.

Compact 3-pin TO-92 surface-mount IC package. Quad-Hall technology ensures signal stability. Low supply current of 8.7mA for energy-efficient operation. Linear magnetic sensing suitable for displacement and position detection.

This sensor is widely used in industrial, electronic, and automation sectors requiring reliable and precise magnetic field measurement and control. Explore similar Honeywell sensors and electronic components at EnvMart for your application needs.
