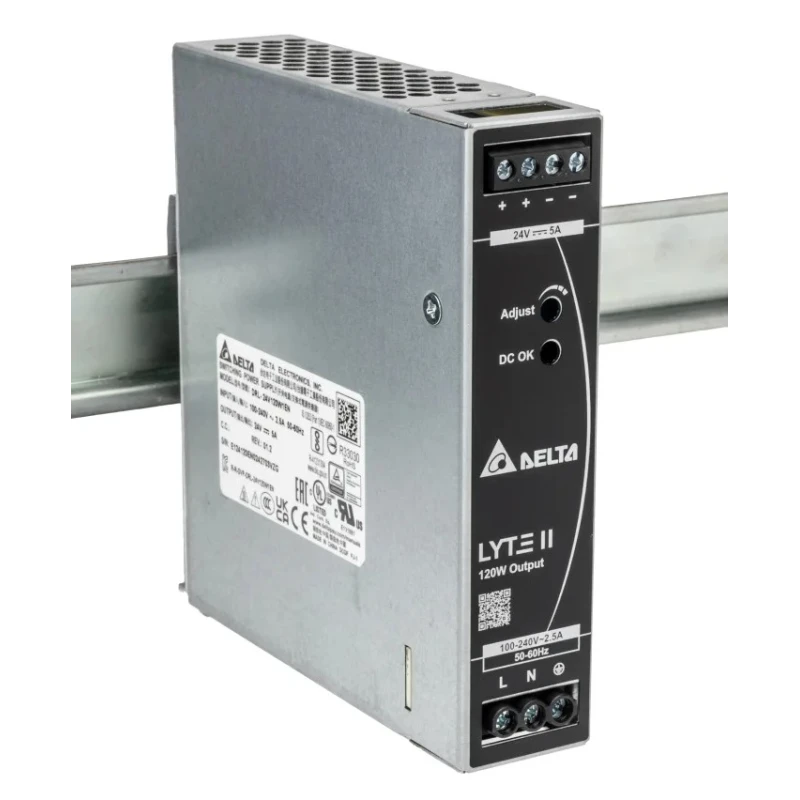

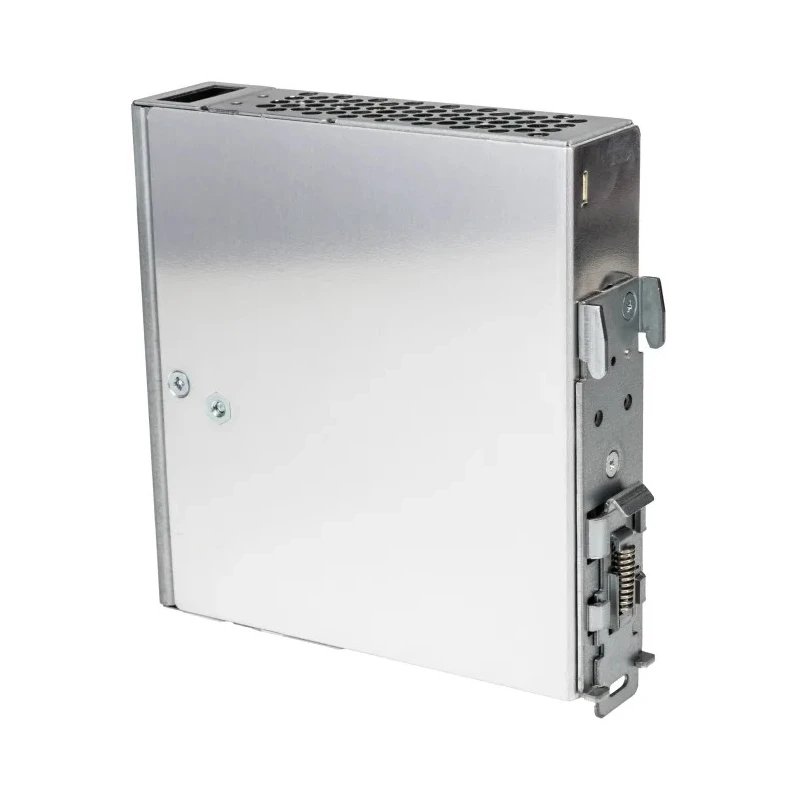

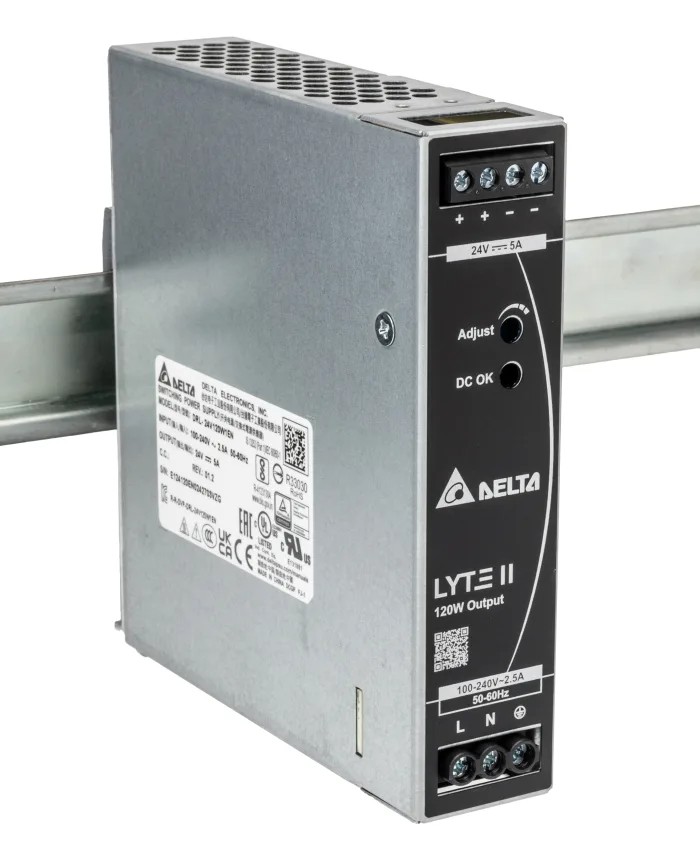

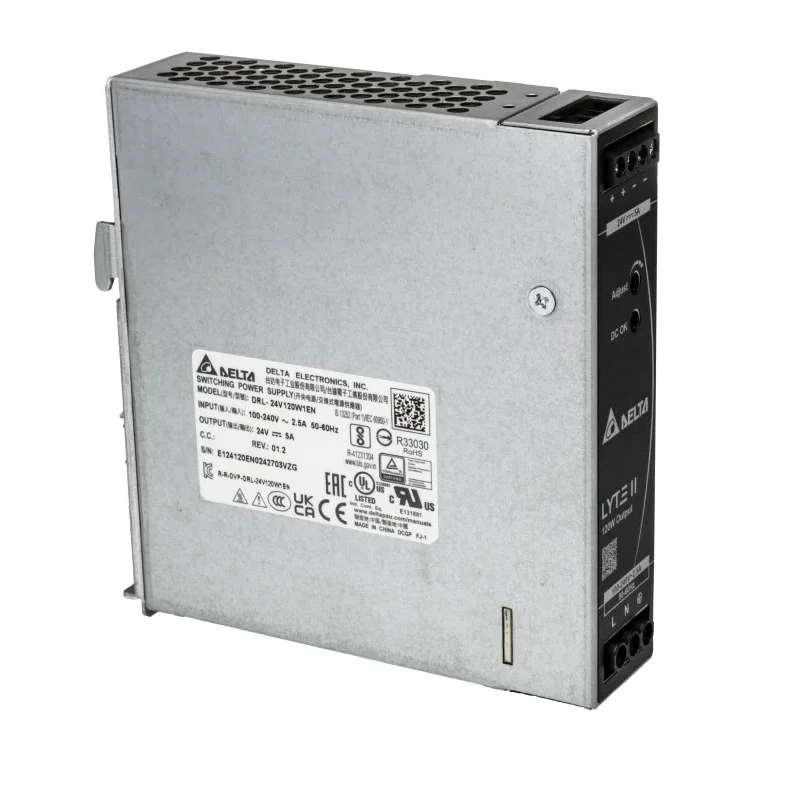

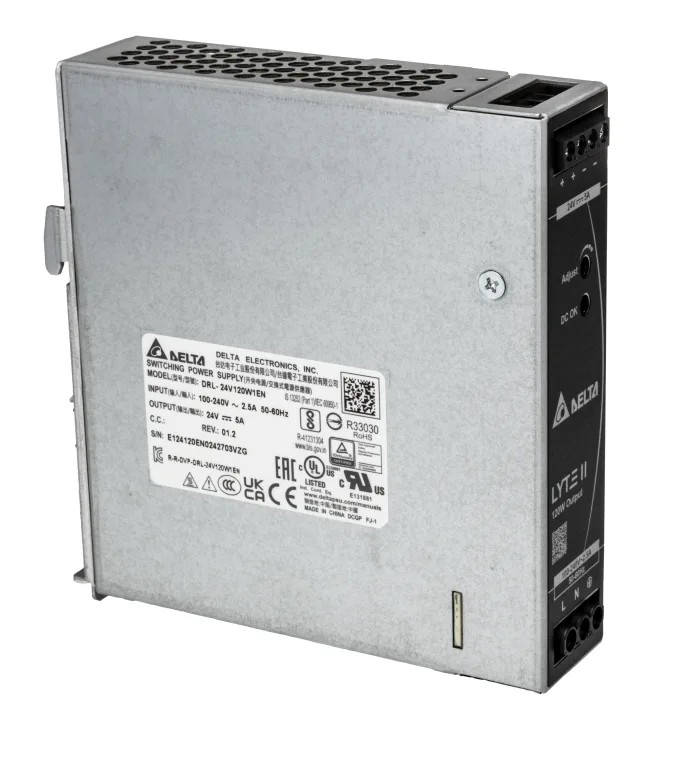

Delta Electronics DRL Switched Mode DIN Rail Power Supply 90-264V AC Input 24V DC, 5 A Output, 120 W DRL-24V120W1EN

Free Delivery in India | Lowest Global Shipping Charges

Delta Electronics DRL Switched Mode DIN Rail Power Supply 90-264V AC Input 24V DC, 5 A Output, 120 W DRL-24V120W1EN

Name: Delta Electronics DRL Switched Mode DIN Rail Power Supply 90-264V AC Input 24V DC, 5 A Output, 120 W DRL-24V120W1EN
Brand: Delta Electronics
SKU: 283918
Price: 56.24 USD
Availability: InStock



Category DIN Rail Power Supply Brand Delta Electronics Condition New

Specifications

Country of Origin	China
Brand	Delta Electronics
Power	120W
Efficiency	88.5%
Height	123.6mm
Model	DRL-24V120W1EN
Depth	116.8mm
Width	30mm
Series	DRL
Output Current	5A
Maximum Operating Temperature	70°C
Sub Type	Switched Mode
Minimum Operating Temperature	-30°C
Maximum Input Voltage	264V ac
Standards/Approvals	RoHS
Maximum Output Voltage	24V dc
Minimum Input Voltage	90V ac

Key Features

Compact DIN rail mount design measuring 123.6mm height, 30mm width, and 116.8mm depth.
Wide operating temperature range from -30°C to 70°C with built-in convection cooling.
High efficiency rating of 88.5% ensuring low energy loss during operation.
Supports constant current mode suitable for inductive and capacitive loads.
Complies with RoHS standards for environmental safety.
Built-in relay contact and relay protection features enhance reliability.
Designed for single-phase AC input with minimum 90 V and maximum 264 V AC tolerance.
Optimized for industrial, automation, and control panel power supply applications.

Product Description

Delta Electronics DRL-24V120W1EN is a switched mode DIN Rail Power Supply designed for industrial and automation applications requiring a reliable 24 V DC output with 5 A current and 120 W power capacity.

This single-phase power supply unit accepts a universal AC input voltage range from 90 V AC up to 264 V AC, allowing for versatile deployment in varied power environments. Its convection-cooled design enables continuous operation from -30°C up to 50°C at full power, with derating capability up to 70°C, making it suitable for harsh industrial conditions.

The power supply features compact dimensions (123.6 mm height, 30 mm width, 116.8 mm depth) intended for space-saving DIN rail mounting in electrical enclosures and control panels.

Offering high efficiency of 88.5%, this DRL series power supply reduces energy losses and operational costs. The integrated constant current circuit ensures stable performance with inductive and capacitive loads, supporting reliable operation in automated systems.

Compliance with RoHS standards confirms its environmental friendliness, while built-in relay contacts provide enhanced operational safety and signal integration capabilities. Compact DIN rail mount design measuring 123.6 mm height, 30 mm width, and 116.8 mm depth.

Wide operating temperature range from -30°C to 70°C with active convection cooling. High efficiency of 88.5% reduces energy consumption. Constant current mode for inductive and capacitive loads. Universal AC input from 90V to 264V.

RoHS compliant for environmental safety. Built-in relay contact for operational status signaling. Designed for industrial automation, control panels, and embedded power applications.

This power supply is suitable for use in industrial, commercial, manufacturing, laboratory, HVAC, and electrical control systems where stable 24 V DC power is required. Delta Electronics provides a robust and reliable solution with the DRL-24V120W1EN model, ensuring durability and consistent performance under challenging operating conditions.

Browse the Delta Electronics range at EnvMart to find compatible power supplies and accessories tailored for your application needs.
