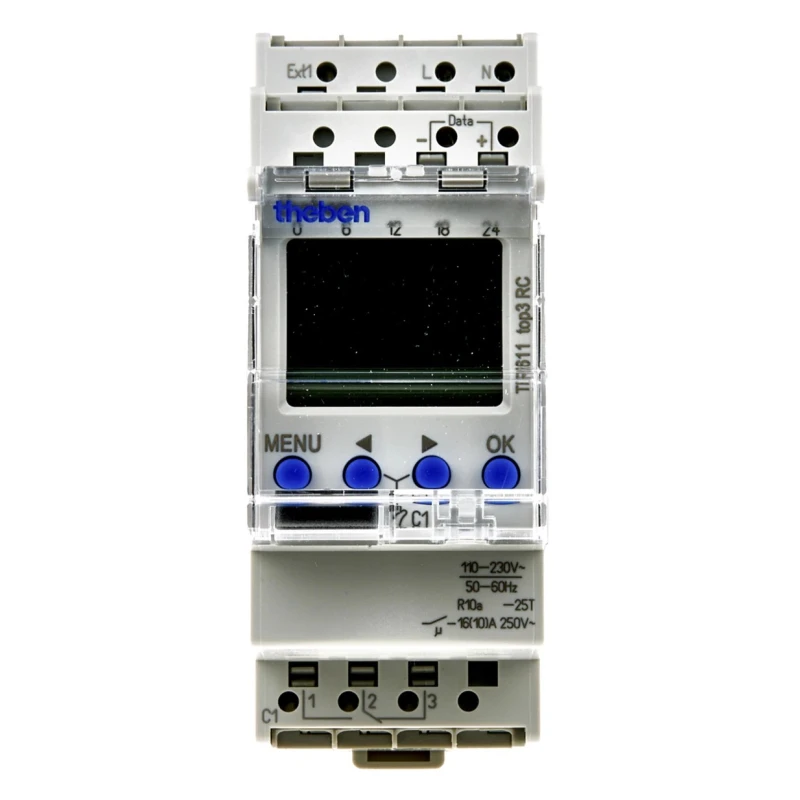

Theben Digital DIN Rail Time Switch 230V AC 1 Channel Weekly Program Top3

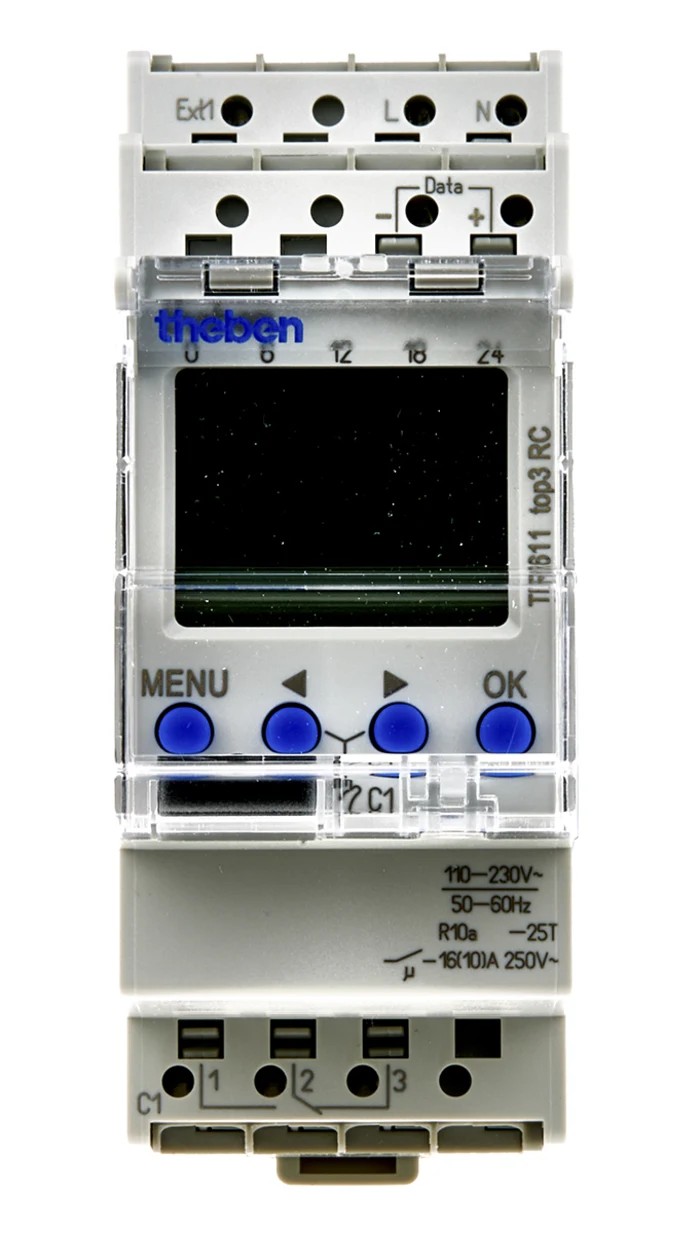

Theben TR611 RC TOP 3 is a digital DIN rail time switch engineered for precise weekly timing control applications in industrial automation, process control, and electrical systems management.

Operating on a maximum supply voltage of 230V ac at 50 to 60 Hz, this device offers reliable switching with a single pole double through (SPDT) contact configuration. It is equipped with a single channel that can be programmed with a weekly schedule, segmented to 1-second intervals to support highly accurate timing.

The time switch features 84 memory spaces allowing for complex and diverse switching programs including ON/OFF, pulse, and cycle types. Its DuoFix spring terminals provide robust connections for two conductors per terminal, ensuring secure and stable wiring. The plug-in connection release button facilitates easy installation and maintenance.

A lithium battery powers the device, offering a power reserve of up to 10 years which makes the switch fully operable even without mains supply. The integrated operating hour counter helps monitor the equipment’s usage and assists in timely maintenance cycles.

User interaction is enhanced by the text-oriented guidance interface on the display, simplifying programming tasks. The time switch is designed for harsh environments with an operating temperature range from -25°C to 55°C and an IP20 rating for ingress protection.

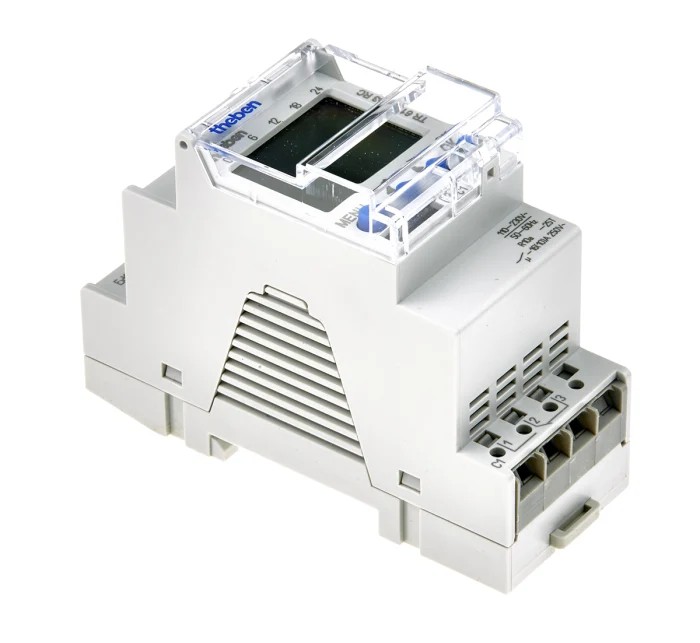

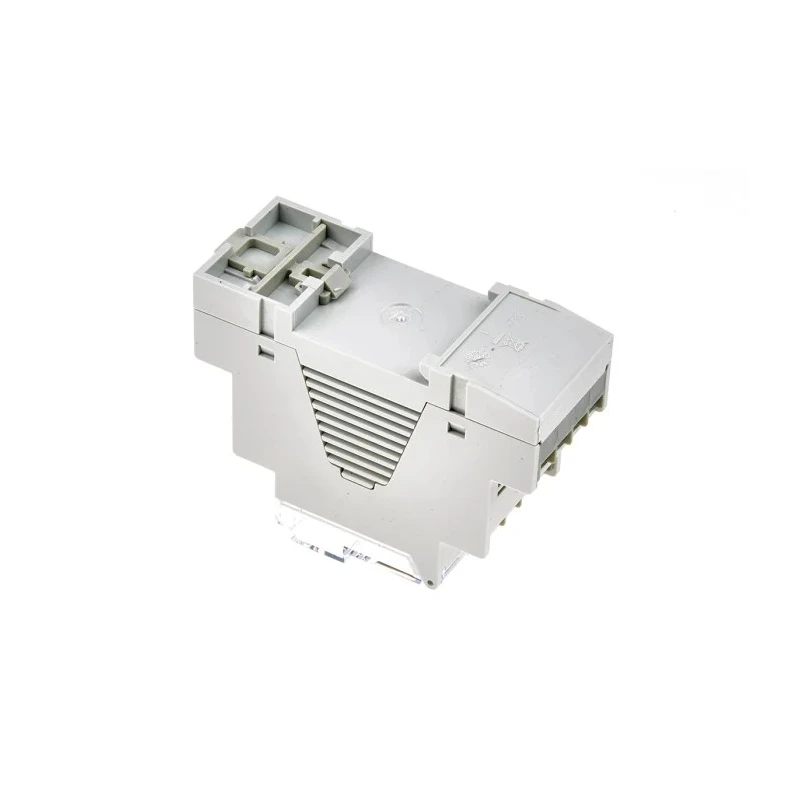

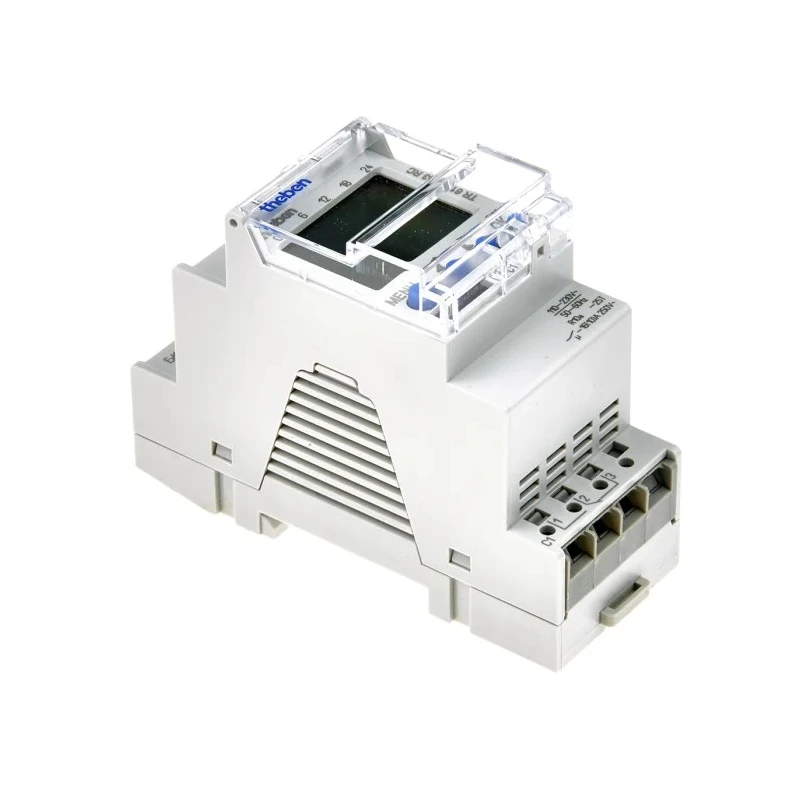

Its compact form factor with dimensions of 128.2 mm height and 76.2 mm depth makes it suitable for standard DIN rail mounting systems commonly used in control panels and automation racks.

Additional features include zero-cross switching to reduce relay wear and support for the OBELISK top2 memory card interface for PC programming, allowing easy management of stored programs. The switch also includes a reset option and switching preselection for enhanced flexibility.

This digital time switch is ideal for industrial, commercial, and process control applications requiring precise and configurable timing solutions. It complies with standards RoHS, EN 60 730-1, and VDE, ensuring quality and safety.

Explore the extensive range of automation and control gear available at EnvMart for your industrial needs. This device operates at 230V AC with a frequency range of 50 to 60Hz. It features a single channel with SPDT contact configuration for versatile switching.

The switch includes 84 memory locations supporting insertable switching programs. Battery powered with a 10-year lithium battery life ensuring long-term power reserve. DuoFix spring terminals allow secure connections for two conductors each.

It supports program copying and cycle program functionalities for efficient scheduling. Text-oriented user guidance is provided via the digital display for easy programming. Operating temperature ranges from -25°C to 55°C for varied environmental conditions.

Integrated hour counter tracks total operating time for maintenance planning. Designed for DIN rail mounting with compact dimensions of 128.2mm height and 76.2mm depth. Visit EnvMart to view more high-quality Time Switches from Theben and other leading brands.
