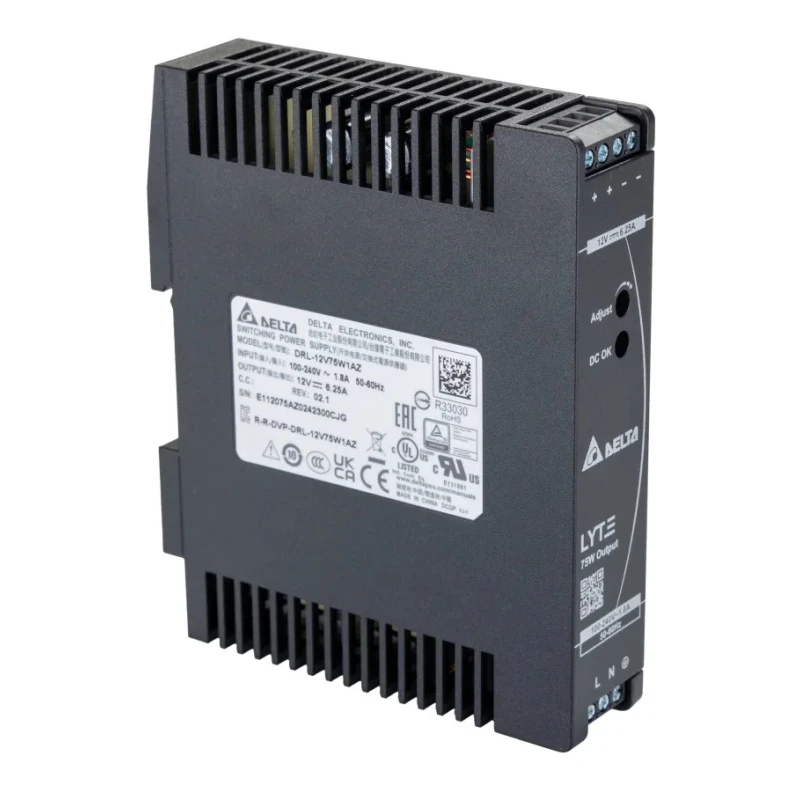

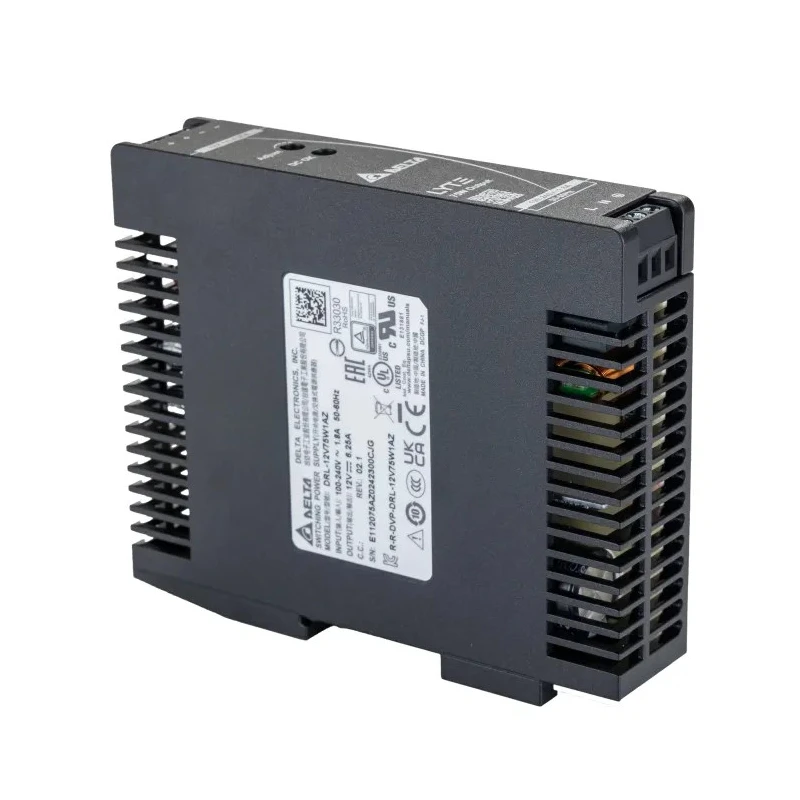

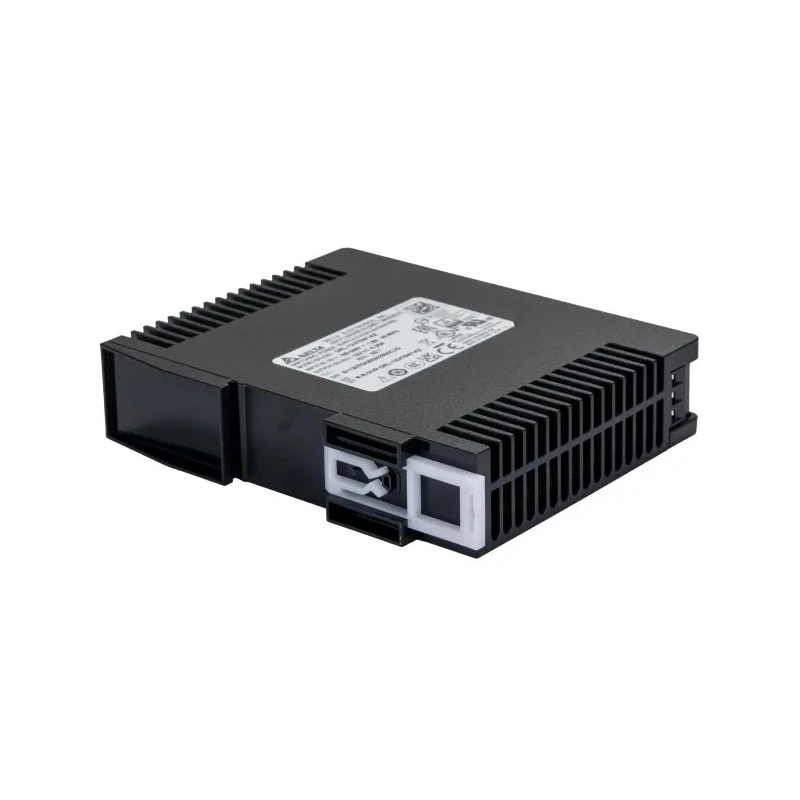

Delta Electronics DRL Switched Mode DIN Rail Power Supply 264V AC Input 12V DC, 6.25 A Output, 75 W DRL-12V75W1AZ
Specifications
| Country of Origin | China |
|---|---|
| Brand | Delta Electronics |
| Power | 75W |
| Efficiency | 87.5% |
| Height | 123.6mm |
| Model | DRL-12V75W1AZ |
| Depth | 102mm |
| Width | 27mm |
| Series | DRL |
| Output Current | 6.25A |
| Maximum Operating Temperature | 70°C |
| Sub Type | Switched Mode |
| Minimum Operating Temperature | -30°C |
| Maximum Input Voltage | 264V ac |
| Standards/Approvals | RoHS |
| Maximum Output Voltage | 12V dc |
| Minimum Input Voltage | 85V ac |
Key Features
- Operates with a universal AC input voltage range of 85 to 264 V AC.
- Convection-cooled design for reliable operation between -30°C and 70°C.
- Overcurrent protection designed to operate in constant current mode for reactive loads.
- Efficiency greater than 87.5% at 230 V AC ensuring energy savings.
- Compact dimensions with height 123.6 mm, width 27 mm, and depth 102 mm.
- Suitable for inductive and capacitive load applications in industrial environments.
- Compliance with RoHS standards for environmental safety.
- Provides full output power from -10°C to +50°C at 230 V AC with cold start at -30°C.
Product Description
Delta Electronics DRL-12V75W1AZ Switched Mode DIN Rail Power Supply is a high-efficiency industrial power supply unit delivering 75 W output power. It provides a regulated 12 V DC output with a maximum current of 6.25 A, suitable for a variety of industrial and automation applications. The power supply supports a wide input voltage range from 85 V AC up to 264 V AC, ensuring compatibility with different power sources worldwide.
The unit is convection-cooled, allowing for silent operation without fans and enhancing reliability over a temperature range from -30°C up to 70°C. It delivers 100% output power from -10°C to +50°C at 230 V AC and supports cold start capability at temperatures as low as -30°C. The overcurrent protection operates in a constant current mode, making it compatible with both inductive and capacitive loads common in industrial equipment.
Constructed with a compact form factor having dimensions of 123.6 mm height, 27 mm width, and 102 mm depth, this DIN rail mountable power supply allows for flexible and space-saving installation in electrical cabinets and control panels. It meets RoHS compliance for environmental protection and does not contain relay contact coating.
Universal AC input voltage from 85 V to 264 V AC for global use. High operational efficiency exceeding 87.5% at nominal voltage. Convection cooling ensures quiet and maintenance-free operation. Robust constant current protection tailored for reactive and capacitive loads.
Wide operating temperature range suitable for harsh industrial environments. Compact size eases integration in control panels with limited space. Compliant with environmental RoHS standards. Ideal for automation, manufacturing, HVAC, and electrical distribution uses.
This Delta Electronics DRL series power supply ensures stable and reliable DC power delivery for industrial machinery and instrumentation. Browse related power supplies and DIN rail power products at EnvMart to find compatible components for your industrial applications.
Explore more products in our DIN Rail Power Supplies category.
