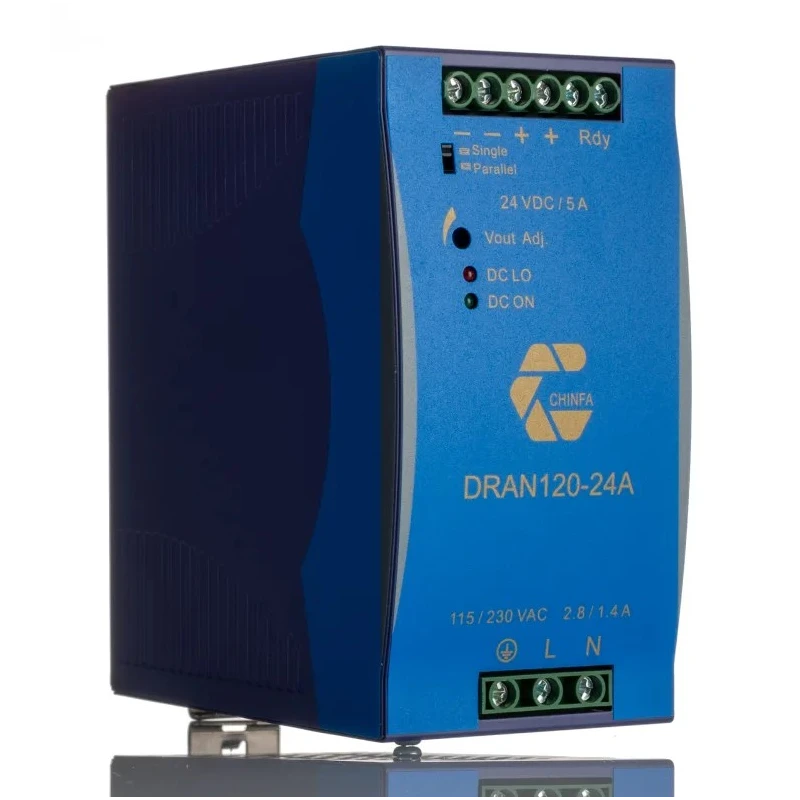

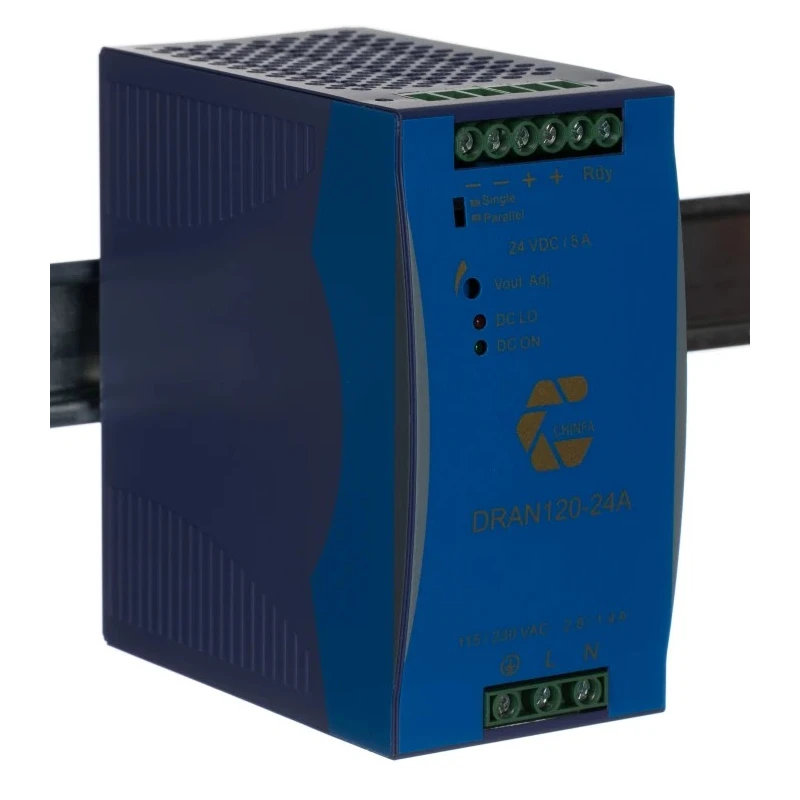

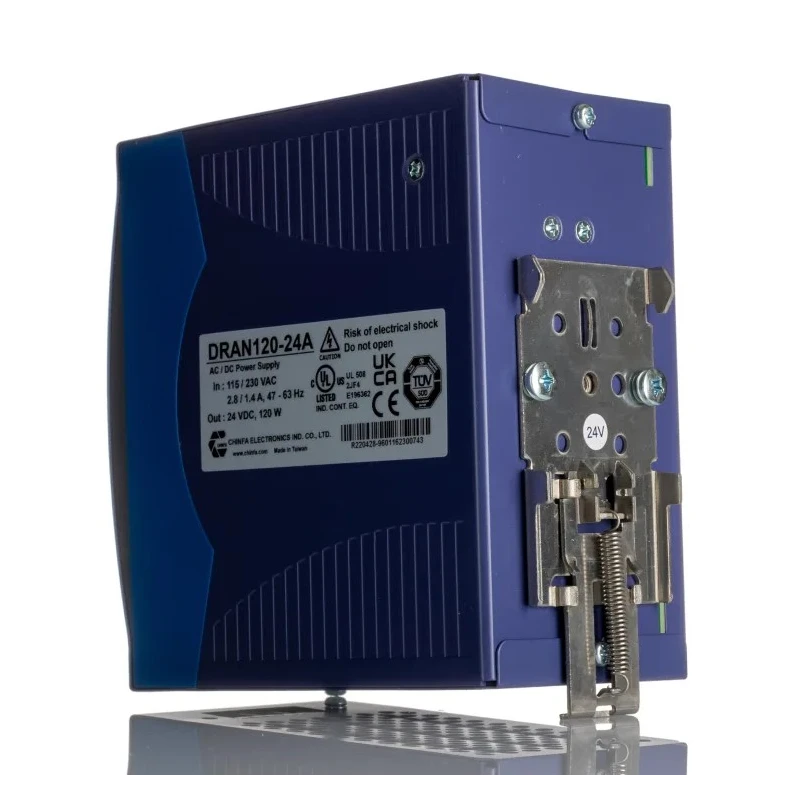

Block DRAN120 Switched Mode DIN Rail Power Supply 230V AC Input, 24V DC 5A Output, 120W DRAN120-24A
Specifications
| Country of Origin | India |
|---|---|
| Brand | Block |
| Power | 120W |
| Efficiency | 86% |
| Height | 125mm |
| Model | DRAN120-24A |
| Depth | 124mm |
| Width | 123.6mm |
| Series | DRAN120 |
| Output Current | 5A |
| Maximum Operating Temperature | 71°C |
| Sub Type | Switched Mode |
| Minimum Operating Temperature | -35°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 230V ac |
| Electrical Phase | 1 |
| Maximum Output Voltage | 24V dc |
| Minimum Input Voltage | 115V ac |
Key Features
- High efficiency of 86% reduces energy waste during operation.
- Compatible with industrial control and automation systems.
- Built-in short circuit protection enhances device safety.
- Operates reliably within temperature range of -35°C to 71°C.
- Compact dimensions of approximately 125mm height, 124mm depth, and 123.6mm width.
- Equipped with screw terminal connections for stable wiring.
- Compliant with EN 55032, EN 61558, UL 508, and UL 62368-1 standards.
- Features an internal input filter to minimize electrical noise.
Product Description
Chinfa DRAN120-24A switched mode DIN rail power supply is engineered to provide a stable 24V DC output at 5A current with a maximum power of 120W. Designed for industrial applications, it features a universal input accepting 115V to 230V AC and DC voltages from 210V to 375V, ensuring versatility in various environments.
Its switch mode technology contributes to a compact form factor with enhanced efficiency of 86%, reducing energy losses and operational heat. The device incorporates an internal input filter and screw terminal connections for robust and clean electrical performance.
Operating reliably between temperatures of -35°C and 71°C, this power supply is suitable for demanding industrial controls, factory automation, electromagnetic drives, and instrumentation tasks, assuring regulated output with low ripple factor and noise at 50mV.
Protection features include short circuit safeguards, enhancing device longevity and safety in harsh operating conditions. It complies with multiple international standards including EN 55032, EN 61558-1, EN 61558-2-16, EN 62368-1, UL 508, and UL 62368-1, reflecting its quality and reliability.
High efficiency of 86% reduces energy loss during conversion. Compact size with dimensions of 125mm (H) x 124mm (D) x 123.6mm (W). Universal input voltage range supports 115V to 230V AC and 210V to 375V DC inputs. Output current rated at 5A with a regulated 24V DC output.
Integrated short circuit protection ensures operational safety. Remote DC-OK signal indicates output status for system monitoring. Designed for industrial automation, process control, and instrumentation applications. Compliance with multiple safety and electromagnetic compatibility standards.
Utilizes screw terminal connections for secure wiring.
Available as a reliable power source in industrial, manufacturing, and laboratory environments requiring robust DIN rail mounted power delivery solutions. Explore additional power supplies and automation components within EnvMart’s extensive catalog.
Explore more products in our DIN Rail Power Supplies category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The output current of this model is rated at 5A.
It has an efficiency rating of 86%, which helps reduce energy waste during operation.
This unit operates reliably within a temperature range of -35°C to 71°C.
The dimensions are approximately 125mm in height, 124mm in depth, and 123.6mm in width.
It includes built-in short circuit protection to enhance device safety during operation.
It is equipped with screw terminal connections for stable wiring.
It complies with several standards including EN 55032, EN 61558, UL 508, and UL 62368-1.
This model can supply a maximum power of 120W.
It is designed for industrial automation, process control, and instrumentation tasks.
The maximum output voltage is 24V DC.
The internal input filter minimizes electrical noise, contributing to cleaner electrical performance.
