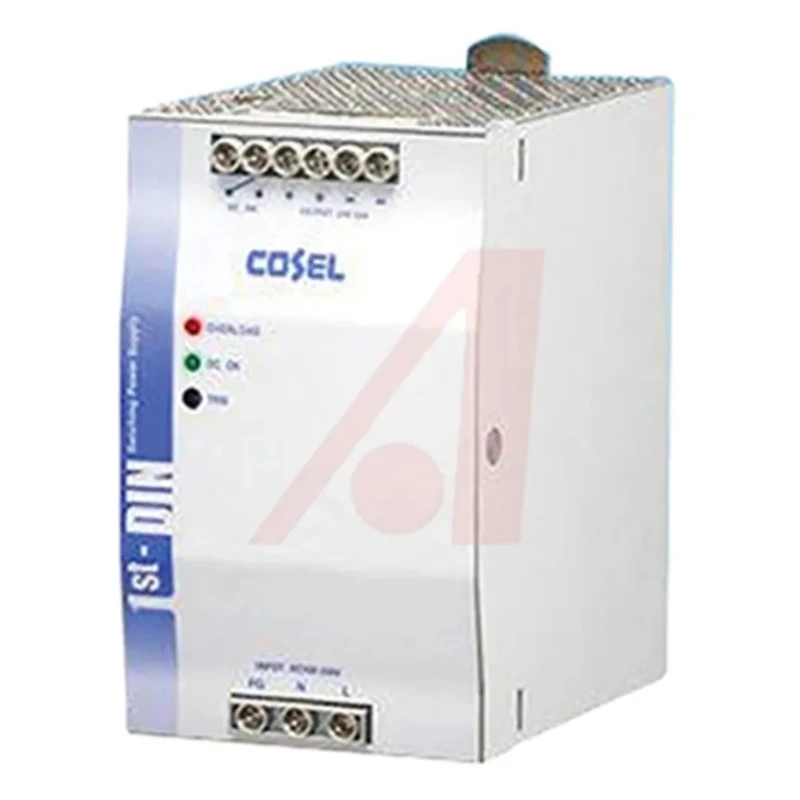

Cosel Switched Mode DIN Rail Power Supply 264V AC Input 24V DC, 20A Output, 480W KHEA480F

Free Delivery in India | Lowest Global Shipping Charges

Cosel Switched Mode DIN Rail Power Supply 264V AC Input 24V DC, 20A Output, 480W KHEA480F

Name: Cosel Switched Mode DIN Rail Power Supply 264V AC Input 24V DC, 20A Output, 480W KHEA480F
Brand: Cosel
SKU: 381252
Price: 20.22 USD
Availability: InStock



Category DIN Rail Power Supplies Brand Cosel Condition New

Specifications

Country of Origin	China
Brand	Cosel
Power	480W
Efficiency	94%
Height	124mm
Model	KHEA480F
Depth	124mm
Width	70mm
Series	KHEA480F
Output Current	20A
Maximum Operating Temperature	70°C
Sub Type	Switched Mode
Minimum Operating Temperature	-25°C
Number of outputs	1
Maximum Input Voltage	264V ac
Electrical Phase	1
Maximum Output Voltage	24V dc
Minimum Input Voltage	85V ac
Wide operating ambient temperature range	-20 to +70 °C

Key Features

Efficient power supply with 94% efficiency using synchronous rectification technology.
Wide operating ambient temperature range from -25°C to 70°C.
Single output with 24V DC maximum voltage and 20A output current.
Compact design featuring 124mm height, 70mm width, and 124mm depth.
Includes over current, over voltage, and over heat protection for reliable operation.
Suitable for mounting on standard 35mm DIN rails with Euro style and barrier block terminals.
Operating input voltage range from 85V AC to 264V AC for flexible installation.
Designed for industrial and electronic applications requiring robust power solutions.

Product Description

Cosel KHEA480F switched mode DIN rail power supply is designed to deliver reliable 480W power output with a single 24V DC output channel capable of 20A current. This power supply operates efficiently with 94% efficiency by utilizing synchronous rectification technology and a resonant circuit, supporting a wide input AC voltage range from 85V to 264V, making it suitable for various industrial and electronic environments.

The unit features a wide ambient temperature operating range from -25°C to 70°C, enabling stable operation in harsh environments. Constructed for mounting on standard 35mm DIN rails, it incorporates Euro style and barrier block style I/O terminals for convenient installation and wiring.

Protection features include built-in over current, over voltage, and over heat safeguards that ensure safe and reliable functionality. The compact enclosure dimensions are 124mm in height, 70mm width, and 124mm depth, optimizing space within industrial control panels and electronic assemblies.

This power supply is ideal for applications in industrial machinery, automation, HVAC systems, manufacturing processes, and electronic equipment requiring durable and consistent DC power. Its robust design conforms to key standards, enhancing operational safety and performance.

94% efficiency achieved with advanced synchronous rectification technology. Wide operating temperature range supports harsh industrial conditions. Single output delivering 24V DC at 20A current and 480W power. Compact form factor suitable for 35mm DIN rail mounting.

Includes over current, over voltage, and over heat protection mechanisms. Flexible input voltage range from 85V AC to 264V AC for global compatibility. Euro style and barrier block terminals for secure electrical connections.

Applications include industrial, manufacturing, HVAC, and electronic power supplies. Explore more power supply solutions at EnvMart for your industrial and electronic power needs.
