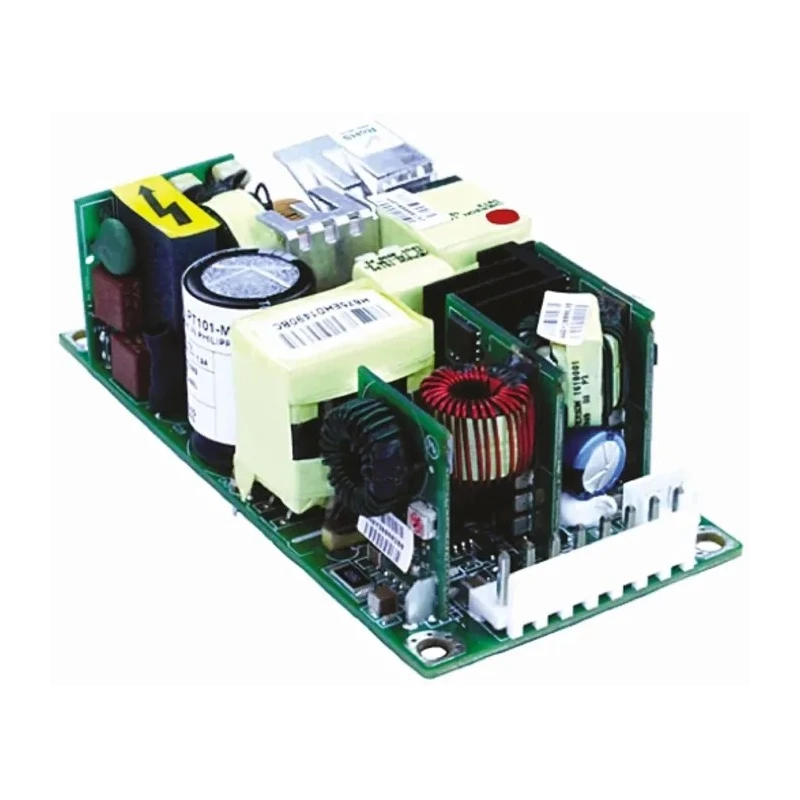

Artesyn Switching Power Supply 3 Output 5V DC 80W 300V AC Chassis Mount LPT101-M

Artesyn LPT101-M Switching Power Supply is a compact, highly efficient triple output AC/DC embedded power supply delivering 80W power with a maximum output voltage of 5V DC. This chassis mount power supply supports a wide universal AC input voltage range of 90V to 300V and is optimized with active power factor correction and built-in EMI filtering to ensure clean power delivery meeting CISPR 22 Class B standards.

The power supply offers adjustable main output voltage and includes comprehensive protective features such as overload, overvoltage, and thermal overload protection to safeguard connected equipment. It is certified by major regulatory bodies including CSA, UL, TUV, NEMKO, CE, and CB, making it suitable for various industrial, laboratory, medical, and dental applications. The low safety ground leakage current and medical approvals make it particularly suited for non-patient contact and low power medical equipment.

With compact dimensions of 101.6 mm length, 50.8 mm width, and 32.7 mm depth, and weighing about 200 grams, the LPT101-M is designed for efficient chassis mounting without occupying significant space. It operates effectively in ambient temperatures from 0°C to 50°C, with output derating of 2.5% per degree above 50°C up to 70°C.

Its high operational efficiency of 87% and active EMI filter reduces interference, ensuring reliable performance in information technology equipment (ITE) and light industrial systems. The unit is enhanced by dual AC fuses and a footprint of 2" x 4" with less than 1U height, facilitating easy integration and maintenance.

Triple output AC/DC Switching Power Supply with adjustable main output. Universal AC input voltage range from 90V AC to 300V AC. Complies with multiple safety standards and medical equipment approvals. Low safety ground leakage current of 275µA at 264 VAC input.

Built-in EMI filter compliant with FCC Class B and CISPR22 Class B conducted emissions. Thermal and overload protections enhance operational reliability and safety. Compact chassis mount enclosure suitable for industrial and medical use.

Designed for non-patient contact and low power medical and laboratory equipment. Ideal for information technology and light industrial applications. Explore more Artesyn power supplies and switching power solutions on EnvMart for your industrial and medical power needs.
