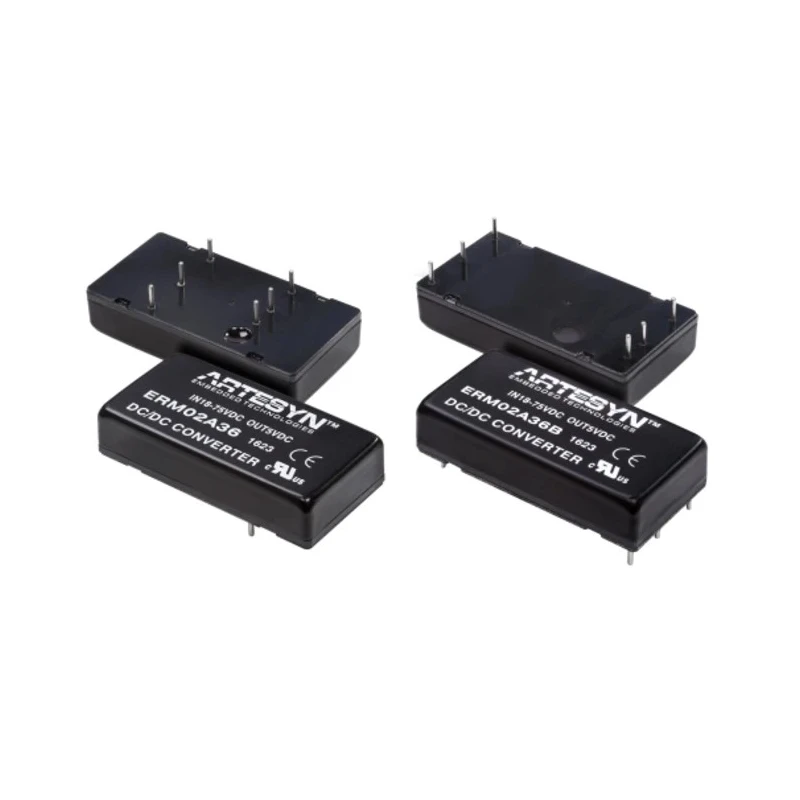

Artesyn High Performance 10W Isolated DC-DC Converter 5 V DC Output, 2 A, 9-36 V DC Input, Through Hole Mount ERM02A18
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Converters / DC-DC Converters Artesyn ERM DC/DC Converter, 5V dc/ 2 A, 36V dc In |
| Brand | Artesyn |
| Efficiency | 84% |
| Length | 50.8mm |
| Model | ERM02A18 |
| Depth | 11mm |
| Width | 25.4mm |
| Mount Type | Through Hole |
| Series | ERM |
| Maximum Operating Temperature | 85°C |
| Package Type | Encapsulated |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 1 |
| Maximum Output Power | 10W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 9V |
| Output Voltage 1 | 5V dc |
| Output Current 1 | 2A |
| Isolation Voltage | 3kV dc |
| Input Ratio | 4:1 |
| Input Ratio4 | 1 |
Key Features
- Highly efficient with 84% energy conversion rate.
- Fully encapsulated metal case for durability and EMI immunity.
- Footprint of 50.8 mm length x 25.4 mm width x 11 mm depth.
- Operation suitable for temperature range -40°C to 85°C with necessary derating.
- Reinforced insulation of 3 kV dc ensures electrical safety.
- Designed for railway and demanding transportation system applications.
- Features voltage-adjust, remote On/Off, under-voltage shutdown, and short-circuit protection.
- Standard 2 x 1 inch footprint enables versatile integration.
Product Description
Artesyn ERM02A18 is a high performance isolated DC-DC converter module rated for 10 W output power, delivering 5 V dc at 2 A output current. It operates with an input voltage range of 9 V to 36 V dc and mounts through hole for robust PCB attachment. The device is fully encapsulated in a metal case measuring 50.8 mm in length, 25.4 mm in width, and 11 mm in depth, ensuring excellent EMI immunity.
Specifically designed for railway and transportation system applications, the ERM series converters feature reinforced electrical insulation rated to 3000 Vac rms and operate efficiently up to 84%, allowing use in ambient temperatures up to 85 °C with appropriate derating.
This converter supports advanced features including voltage adjustment, remote On/Off control, under voltage shutdown, and protection against overload and short circuits, making it reliable for industrial and demanding environments.
The compact 2 x 1 inch footprint and encapsulated package type enable easy integration into various PCB designs. This model is part of the ERM series, known for high reliability and stable power conversion.
High-efficiency design up to 84%. Advanced protection features including overload and short-circuit safeguards. Wide operating temperature range from -40 °C to 85 °C. Reinforced 3 kV dc isolation voltage for safety. Suitable for industrial, railway, transportation, and other demanding applications.
Through hole mount ensures secure and stable PCB connection. Explore our range of DC/DC Converters in the Electronics & Electricals category at EnvMart for high quality power supply solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this model is 9 V to 36 V DC.
It provides an output voltage of 5 V DC with a maximum output current of 2 A.
The maximum output power of this unit is 10 W.
This model has an efficiency rating of 84%.
The dimensions are 50.8 mm in length, 25.4 mm in width, and 11 mm in depth.
It uses a through hole mounting type for secure PCB attachment.
The operating temperature range is from -40 °C to 85 °C with necessary derating.
It includes reinforced insulation rated to 3 kV DC, under-voltage shutdown, and short-circuit protection.
It is specifically designed for railway and demanding transportation system applications.
It offers voltage adjustment, remote On/Off control, and protection against overload and short circuits.
The isolation voltage of this unit is 3 kV DC.
The country of origin for this model is India.
