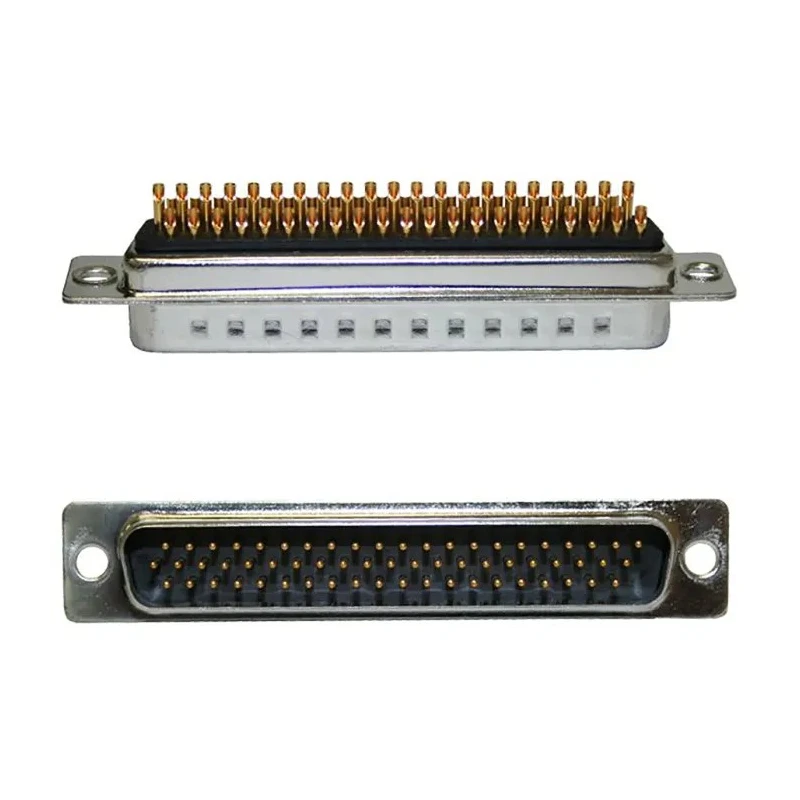

Norcomp Panel Mount D-Sub Connector, 44 Way, 2.286 mm Pitch, Male, Straight, 180-M44-103L001

The Norcomp 180-M44-103L001 Panel Mount D-Sub Connector is engineered for demanding electronic and computing applications requiring robust performance, high-density contact arrays, and reliable signal integrity. This connector incorporates 44 machined brass contacts, plated with gold flash for superior conductivity and corrosion resistance, making it ideal for use in data transmission and industrial equipment interfaces.

With a 2.286 mm pitch, the connector supports approximately 65 percent greater density than standard D-sub connectors, enabling compact board layouts and efficient use of space in panels and enclosures. The male connector, featuring a straight orientation, allows for standard mating and installation across a range of devices.

A steel shell, nickel-plated for enhanced EMI/RFI shielding, provides robust mechanical protection and signal integrity. Additional grounding and retention are provided via plug shell indents, and the connector integrates seamlessly into industry-standard D-sub backshells.

The panel mount design is equipped to securely fasten the connector to electronic cabinets, mounting plates, or instrument housings. The glass-filled PBT thermoplastic insulator has a process temperature rating of 230°C, ensuring reliable operation even in high-thermal environments. Solder cup termination supports a range of wire gauges (28 - 24 AWG), with options for flexible assembly in custom harnessing or retrofit situations.

Rated for up to 5A current and 1.0 kV operating voltage, the 180-M44-103L001 connector maintains performance over a wide temperature range from -55°C to 105°C, supporting extensive industrial, communication, automation, and laboratory applications. Screw machined contacts deliver high reliability in critical settings.

The connector's housing, made of steel and nickel-plated, combined with machined brass gold-flash plated contacts, meets rigorous standards for durability and electrical performance. It is ideally suited for industrial-grade computing, laboratory instrumentation, automated machinery, and commercial electronics.

Typical applications include industrial control panels, computer networks, communications hardware, laboratory equipment assemblies, and manufacturing automation systems. This D-Sub connector is part of the Norcomp high-density connector series, ensuring compatibility across a broad range of electronic and electrical interface requirements.
