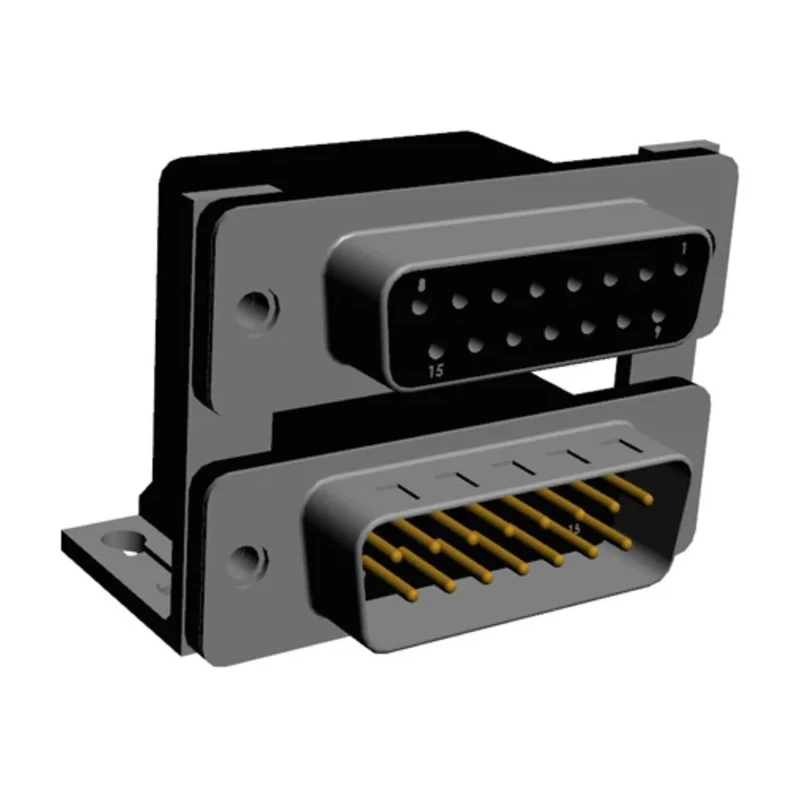

Norcomp Right Angle D-Sub Connector, 15 Contacts, DA-15 Female to DB-15 Male, 2.769 mm Pitch, PCB Mount 189-015-313R491
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Norcomp |
| Orientation | Right Angle |
| Model | 189-015-313R491 |
| Mount Type | PCB |
| Housing Material | Steel |
| Contact Material | Brass |
| Series | 189 |
| Mounting Hardware | 4 to 40 Insert |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.769mm |
| Contact Plating | Gold |
| Number of Contacts A | 15 |
| D-Sub Shell Size A | DA-15 |
| Contact Gender A | Female |
| D-Sub Shell Size B | DB-15 |
| Contact Gender B | Male |
Key Features
- Features dual ports for compact PCB space-saving applications.
- Comes with 15 female contacts in DA-15 shell and 15 male contacts in DB-15 shell.
- Right angle design facilitates optimal board layout.
- Mounts securely with 4-40 insert hardware and boardlocks.
- Constructed with nickel plated steel housing for enhanced shielding and durability.
- Contacts are gold plated brass for reliable conductivity.
- Sustains temperatures from -55°C to 105°C during operation.
- Pitch between contacts is 2.769 mm for standard PCB interfacing.
Product Description
The Norcomp 189-015-313R491 is a high-performance right angle D-Sub connector designed for PCB mounting and applications with limited space. This dual port connector facilitates efficient data and signal transmission between DA-15 female and DB-15 male interfaces, making it ideal for many electronics, computing, and industrial projects.
Featuring a total of 30 contacts, split into 15 female (DA-15 shell, Port A) and 15 male (DB-15 shell, Port B), the connector delivers secure fitting and excellent electrical connectivity. The contacts are gold-plated brass, offering strong corrosion resistance and low contact resistance for reliable signal transmission.
This connector is constructed with a nickel-plated steel housing, providing improved shielding against electromagnetic interference and enhancing mechanical durability. Ground indents in the shell contribute to effective grounding and retention, ensuring stable operation even in challenging environments.
Its right-angle geometry helps maximize PCB space utilization, allowing denser board layouts and easier routing. Boardlocks and the included 4-40 insert mounting hardware further ensure robust mechanical retention to the PCB.
The UL94V-0 thermoplastic insulator withstands up to 260°C processing temperatures for high-reliability assembly.
Operational temperature range from -55°C to 105°C enables use in demanding applications across industrial automation, computing hardware, laboratory instruments, communications equipment, and commercial electronics.
This product is recommended wherever multiple connector ports are required in a compact form factor and reliable performance is essential, such as networking equipment, industrial control panels, and embedded systems.
Dual port connector for space-efficient PCB mounting. Gold plated brass contacts for reliable conductivity. Nickel plated steel housing for improved shielding and durability. Sustains wide operating and processing temperature ranges.
Secure mounting with boardlocks and 4-40 insert hardware. High-performance solution for industrial, laboratory, computing, and commercial electronics. Compatible with industry-standard D-sub interfaces for versatile integration.
Designed for robust grounding and EMI protection. Discover further Norcomp D-sub connectors and PCB solutions in the Electronics Components and D-Sub Connector categories on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch between the contacts is 2.769 mm, which is suitable for standard PCB interfacing.
This model operates within a temperature range of -55°C to 105°C, making it suitable for demanding applications.
The connector features a total of 30 contacts, with 15 female contacts in the DA-15 shell and 15 male contacts in the DB-15 shell.
It is constructed with a nickel-plated steel housing and features gold-plated brass contacts for reliable conductivity.
The connector includes 4-40 insert mounting hardware for secure fitting to the PCB.
This model has a right angle orientation, which helps maximize PCB space utilization.
The housing is made of steel, which provides enhanced shielding and durability.
This connector uses a DA-15 shell for the female contacts and a DB-15 shell for the male contacts.
It is suitable for applications in industrial automation, computing hardware, laboratory instruments, communications equipment, and commercial electronics.
The right-angle design facilitates optimal board layout, allowing for denser board configurations and easier routing.
The gold plating on the brass contacts provides strong corrosion resistance and low contact resistance, ensuring reliable signal transmission.
The connector is manufactured in Taiwan, ensuring compliance with quality standards.
