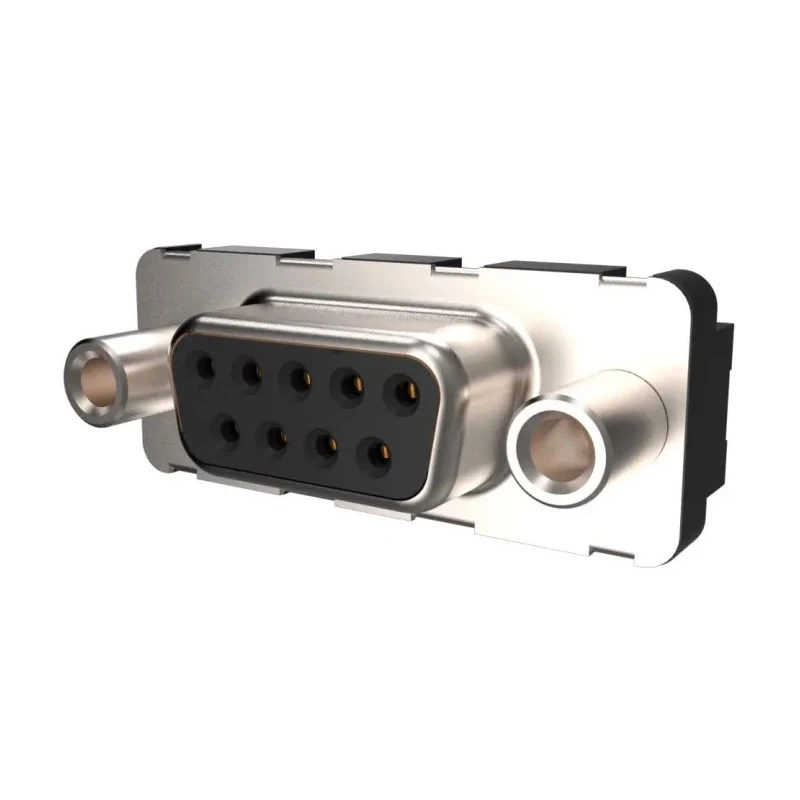

Amphenol Communications Solutions 9 Way 2.74 mm Pitch Plug-in D-Sub Connector, Female, Straight, LD09S24A4GV00LF
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250.0V |
| Brand | Amphenol Communications Solutions |
| Orientation | Straight |
| Current | 5A |
| Model | LD09S24A4GV00LF |
| Mount Type | Plug-in |
| Housing Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Series | LD |
| Durability | 50 mating and unmating cycles |
| Mounting Hardware | Screw |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.74mm |
| Standards/Approvals | DIN 41652 and MIL-C-24308 dimensional standards |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 9 |
| Contact Gender | Female |
| Connector Gender | Female |
| Connector Type D | D-Sub |
| D-Sub Shell Size | E |
Key Features
- Features a 9-way configuration suited for standard D-Subminiature I/O applications.
- 2.74 mm pitch ensures spacing accuracy and stable electrical connections.
- Female connector with straight orientation for versatile PCB mounting.
- Plug-in mount type, optimised for quick integration and secure placement.
- 250 V voltage rating and 5A current rating support robust signal and power transmission.
- Thermoplastic housing provides insulation and mechanical durability.
- Copper alloy contacts with gold over nickel plating for enhanced conductivity and corrosion resistance.
- Operates reliably from -55°C to 105°C for demanding environments.
Product Description
The Amphenol Communications Solutions LD09S24A4GV00LF is a 9 way plug-in D-Subminiature connector designed for robust and reliable electronic interfaces in professional environments. With a 2.74 mm pitch and a straight, female configuration, this connector is particularly suited for printed circuit board applications requiring quick, tool-less installation and removal.
It features a plug-in mounting style and is equipped with screw hardware for secure fastening, minimising risk of disconnections during operation. The connector supports a current of up to 5A per contact and withstands voltages up to 250 V, ensuring compatibility with demanding signal and low-power applications in telecommunications, instrumentation, IT, industrial automation, and medical equipment.
Its thermoplastic housing offers mechanical durability and excellent insulation properties, safeguarding circuitry from electrical shorts and physical stresses. The copper alloy contacts are plated with gold over nickel, reducing contact resistance and improving longevity in high cycle applications, with operational endurance tested up to 50 mating cycles.
This D-Sub connector is compliant with DIN 41652 and MIL-C-24308 standards, ensuring mechanical compatibility and interchangeability within industry-standard electronic assemblies. It operates reliably in a wide temperature range from -55°C to 105°C, making it suitable for use in both commercial and industrial environments where thermal variation is common.
The LD09S24A4GV00LF is an ideal choice for end users and OEMs looking for high-reliability board-to-board or board-to-cable interconnection. Its precise pitch and contact design support clean, stable signals while the plug-in format simplifies installation and repair.
Typical use cases include telecommunications frames, test and laboratory instrumentation, industrial automation controllers, medical diagnostic devices, and data handling equipment where signal integrity, robust mounting and repeated mating cycles are needed. The compact E-size shell and straight configuration make it suitable for dense layouts and modular assemblies.
Explore more Amphenol D-Sub connectors and a wide portfolio of professional electronic, industrial, and computing interconnection solutions in the D-Sub Connectors category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a voltage rating of 250 V and a current rating of 5 A per contact, making it suitable for robust signal and power transmission.
The connector features a 2.74 mm pitch, ensuring spacing accuracy and stable electrical connections.
It operates reliably within a temperature range of -55°C to 105°C, suitable for demanding environments.
This model uses a plug-in mounting style with screw hardware for secure fastening, minimizing the risk of disconnections during operation.
The housing is made of thermoplastic, while the contacts are copper alloy plated with gold over nickel for enhanced conductivity and corrosion resistance.
It features a 9-way configuration with female contacts, designed for standard D-Subminiature I/O applications.
It complies with DIN 41652 and MIL-C-24308 dimensional standards, ensuring mechanical compatibility and interchangeability.
This model is rated for 50 mating and unmating cycles, ensuring reliable performance over repeated use.
It utilizes solder termination, which is common for secure and stable connections in electronic applications.
It is suitable for telecommunications, instrumentation, IT, industrial automation, and medical equipment, where reliable electrical connections are required.
This connector has an E-size shell, which is compact and suitable for dense layouts and modular assemblies.
Yes, it is optimized for quick integration and secure placement, allowing for tool-less installation and removal.
