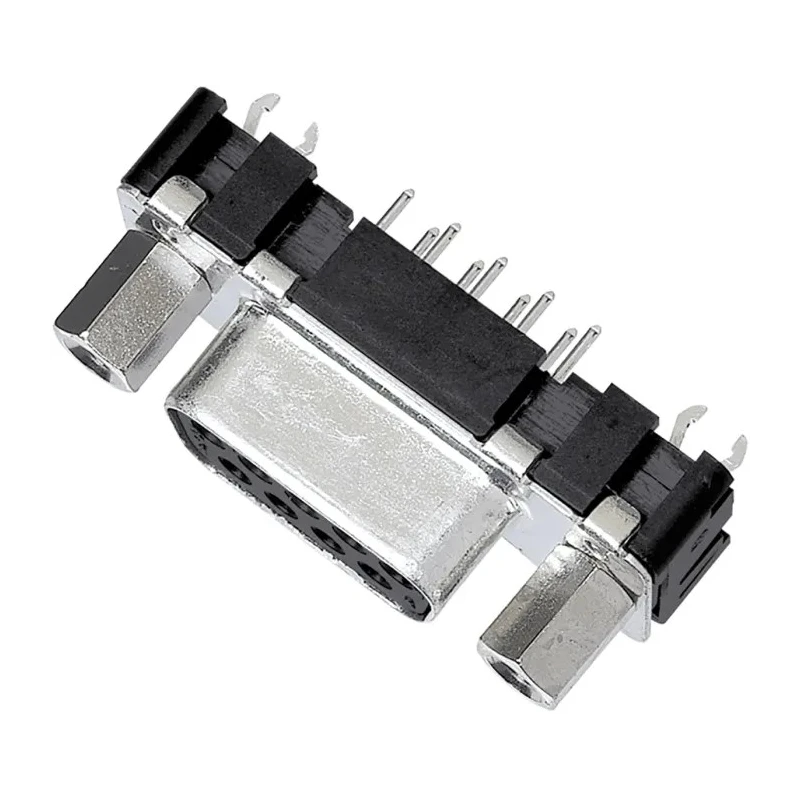

HARTING D-Sub Connector, 9 Way, Straight, Female, Through Hole, 6.5A, 1000V, 09661517513
Specifications
| Country of Origin | Switzerland |
|---|---|
| Voltage | 1000V |
| Brand | HARTING |
| Orientation | Straight |
| Current | 6.5A |
| Mount Type | Through Hole |
| Housing Material | Fibreglass Reinforced Thermoplastic |
| Contact Material | Copper Alloy |
| Series | D-Sub |
| Mounting Hardware | 4 to 40 UNC Screw Lock |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | UL Recognised, UL 94-V0, RoHS |
| Contact Plating | Steel |
| Number of Contacts | 9 |
| Contact Gender | Female |
| Connector Gender | Female |
| Connector Type D | D-Sub |
Key Features
- Designed with 9 contacts and a straight, through hole mount for PCB integration.
- Connector gender is female with a rated current of 6.5A for robust power and signal handling.
- Constructed from fibreglass reinforced thermoplastic for enhanced durability and insulation.
- 1000V voltage rating and a wide operating temperature range from -55°C to 125°C for versatility in demanding environments.
- Housing includes 4 to 40 UNC screw lock hardware for secure connection and mechanical stability.
- Copper alloy contacts with steel plating and RoHS, UL 94-V0 recognized for compliance and reliability.
- Terminated by solder, making it suitable for wave soldering and secure PCB attachment.
- Country of origin is Switzerland, guaranteeing high manufacturing standards.
Product Description
The HARTING 09661517513 D-Sub Connector is a robust 9-way, straight female connector designed for reliable signal and power transmission in industrial, instrumentation, and electronic applications. This connector features through hole mounting, making it suitable for secure PCB integration and durable electrical connections.
The device delivers a rated current of 6.5A and a voltage withstand of up to 1000V, ideal for both power and signal lines. The contacts are constructed from copper alloy and plated with steel for longevity and corrosion resistance, while the housing is formed from fibreglass reinforced thermoplastic, offering strong mechanical support and insulation properties.
This D-sub connector adopts a straight orientation and includes a 4 to 40 UNC screw lock, ensuring stable mating and resistance to vibration or mechanical stress. The female contact configuration combined with solder termination supports reliable wave soldering to PCB layouts, facilitating automated assembly and ensuring a consistent connection.
Engineered for demanding environments, the HARTING 09661517513 operates across temperatures from -55°C to 125°C, enabling deployment in both industrial and field electronics. The product holds UL Recognition and complies with RoHS, UL 94-V0 flammability ratings, confirming its suitability for applications where safety and environmental compliance are vital.
Integrating this D-sub miniature connector is straightforward, making it an excellent choice for industrial automation, factory equipment, measuring systems, HVAC control panels, PC peripherals, and data communication interfaces. Its mechanical integrity, electrical capacity, and fitting design make it ideal for environments requiring both signal fidelity and ruggedness, such as PCB assemblies, control units, and communication systems.
This connector originates from Switzerland, representing the precision and quality characteristic of European-manufactured components. The mounting hardware includes a fixing flange and 4 to 40 UNC thread, with performance level 2 and 3 support for broad compatibility. With stamped, straight female contacts at 2.74 mm pitch, this unit is engineered for hassle-free installation in diverse applications.
Explore more specialized connectors and interface components from HARTING and related manufacturers in the D-Sub Connector segment on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a rated current of 6.5A, suitable for robust power and signal handling.
It has a voltage withstand capability of up to 1000V, making it suitable for both power and signal lines.
The housing is made from fibreglass reinforced thermoplastic, while the contacts are constructed from copper alloy and plated with steel.
This connector operates across a temperature range from -55°C to 125°C, allowing for use in demanding environments.
It features solder termination, which supports reliable wave soldering to PCB layouts for secure attachment.
It uses through hole mounting, making it suitable for secure integration into PCBs.
This model has a straight orientation, which aids in straightforward installation.
This connector features 9 contacts, designed for reliable signal and power transmission.
It includes 4 to 40 UNC screw lock hardware for secure connection and mechanical stability.
Yes, it is UL Recognised and complies with RoHS and UL 94-V0 flammability ratings.
This model originates from Switzerland, ensuring high manufacturing standards.
It is suitable for industrial automation, factory equipment, measuring systems, HVAC control panels, and data communication interfaces.
