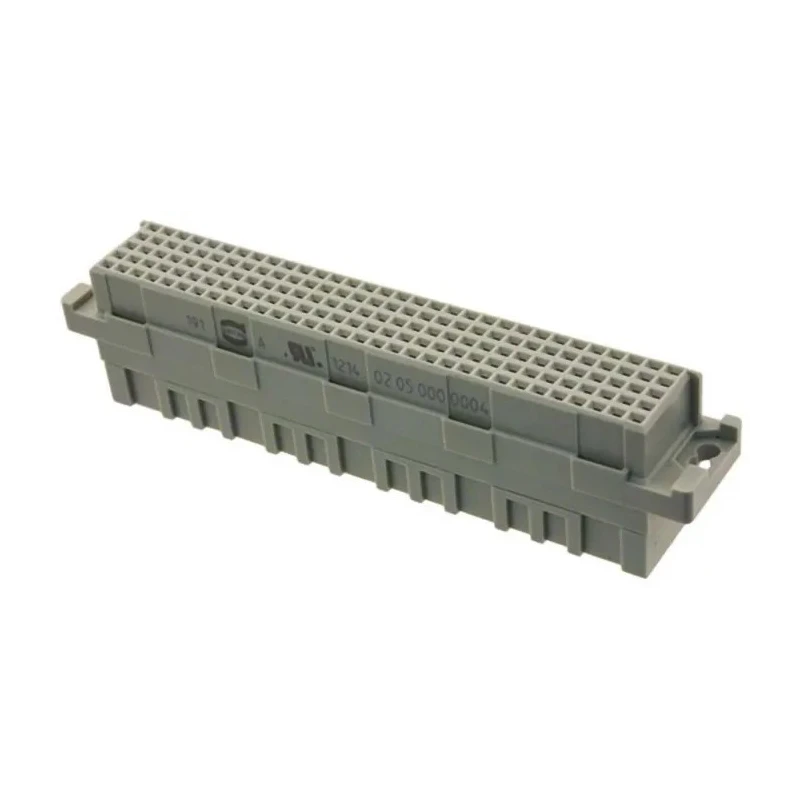

HARTING 0205 Backplane Connector Straight Female 32 Column 5 Row 160 Way 1kV 1A Polycarbonate Housing Copper 02050000004
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 1kV |
| Brand | HARTING |
| Orientation | Straight |
| Current | 1A |
| Mount Type | Through Hole |
| Housing Material | Polycarbonate |
| Contact Material | Copper Alloy |
| Series | 0205 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 5 |
| Number of columns | 32 |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 160 |
| Contact Gender | Female |
| Connector Gender | Female |
Key Features
- Constructed with a polycarbonate housing for durability and electrical insulation.
- Contacts made from copper alloy with gold over nickel plating ensure reliable conductivity and corrosion resistance.
- Designed for through-hole mount with crimp termination type for secure connections.
- Operates reliably in temperatures ranging from -55°C to 125°C.
- Compatible with DIN 41612 standards and original VME64 applications, offering backward compatibility.
- Ideal for industrial electronics requiring stable backplane connections.
- Female connector gender suits mating with male counterparts in modular systems.
- Provides high data transfer rates between 160MB and 220MB.
Product Description
HARTING 02050000004 Backplane Connector is a high-quality straight female connector designed for demanding electronic applications. Featuring 32 columns and 5 rows, it provides 160 contact points rated for 1A current and 1kV voltage, making it suitable for reliable signal transmission in industrial environments.
The connector housing is manufactured from durable polycarbonate material ensuring excellent electrical insulation and mechanical strength. Copper alloy contacts plated with gold over nickel deliver exceptional conductivity and resistance to corrosion, enhancing performance and longevity.
Its through-hole mounting and crimp termination type support robust assembly and secure cable connections. The operating temperature range spans from -55°C to 125°C, making it suitable for a wide range of harsh conditions.
Compliant with DIN 41612 and part of the HARTING 0205 series, this Backplane Connector is designed originally for VME64 applications, offering backward compatibility for existing DIN 41612 Type C systems. Its compatibility and performance levels make it an optimal choice for industrial, laboratory, manufacturing, and automation control systems requiring stable, high-speed backplane connections.
This product supports retrofit of existing systems with increased pin count and incorporates press-fit sockets to ease assembly and production processes. High data transfer rates from 160MB to 220MB enable stable and efficient signal communications.
Constructed with polycarbonate housing for durability and insulation. Copper alloy contacts plated with gold over nickel resist corrosion and enhance conductivity. Through-hole mounting and crimp termination facilitate secure electrical connections.
Wide operating temperature range from -55°C to 125°C ensures usage in various environments. Meets DIN 41612 standards, suitable for Eurocard modular rack systems. Supports backward compatibility with VME64 and DIN 41612 Type C applications.
Enables high data transfer rates between 160MB and 220MB. Designed for industrial, manufacturing, laboratory, and automation applications. Facilitates retrofit with increased pin counts for existing systems. Includes press-fit sockets to aid assembly and production.
Explore more electronic connectors and backplane solutions in the EnvMart catalog for your industrial and manufacturing needs.
