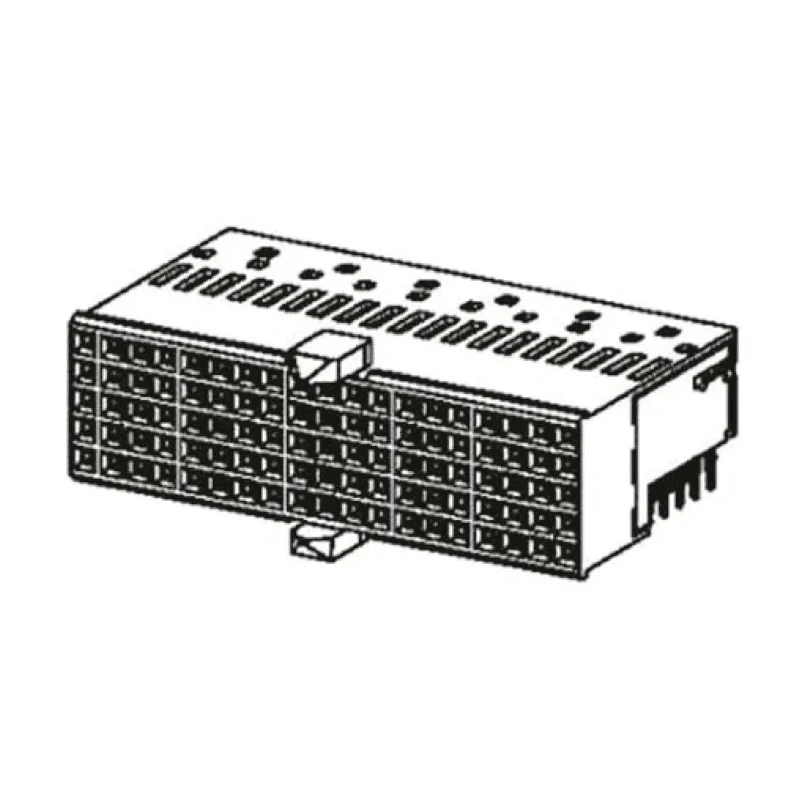

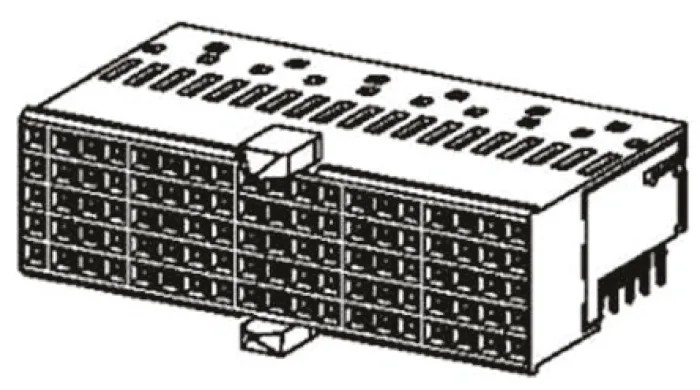

HARTING Hard Metric Type A/B Backplane Connector 2 mm Pitch, Right Angle Female, 125 Contacts, 25 Column×5 Row 17351252102

HARTING 17351252102 is a Hard Metric Type A/B Backplane Connector designed for high performance in electronic and electrical assembly applications. It features a 2 mm pitch with 125 contacts arranged in a 25 column by 5 row configuration, providing dense, reliable connectivity for demanding industrial environments.

The connector is right angle female type and is constructed with a robust fibreglass reinforced thermoplastic housing to ensure structural integrity and resistance to mechanical stress. The contacts are made of copper alloy plated with nickel and gold to optimize conductivity and corrosion resistance. These connectors support a 1 A current rating and utilize a press-in termination method for secure and efficient mounting on circuit boards.

Designed to operate in temperature extremes from -55°C to 125°C, this connector is suitable for a wide range of industrial, manufacturing, telecommunications, and computing applications including Compact PCI and VME bus systems.

The product belongs to the har-bus HM connector series and complies with IEC 61076-4-101 standards. It is engineered as a modular system with increments of 25 mm allowing flexible configurations from 55 to 308 contact ways, with optional shielding rows for enhanced electromagnetic compatibility.

They are typically used for backplane and rack connectors where high signal integrity and mechanical reliability are critical. This connector's through hole mount type facilitates sturdy PCB integration, making it ideal for complex electronic assemblies in labs, industrial automation, and communication devices.

Features a right angle female connector design for backplane mounting applications. Robust fibreglass reinforced thermoplastic housing for increased durability. Copper alloy contacts with nickel and gold plating for enhanced conductivity and corrosion resistance.

Supports 1 A current rating with press-in termination type. Wide operating temperature range from -55°C to 125°C for versatile applications. Modular system with increments of 25 mm for scalable configurations. Complies with IEC 61076-4-101 standard for high-speed interconnects.

Pre-installed shielding options provide electromagnetic compatibility. Made in Germany ensuring high manufacturing quality standards. Explore our extensive range of electronics and connector solutions at EnvMart to enhance your industrial and commercial assembly needs.
