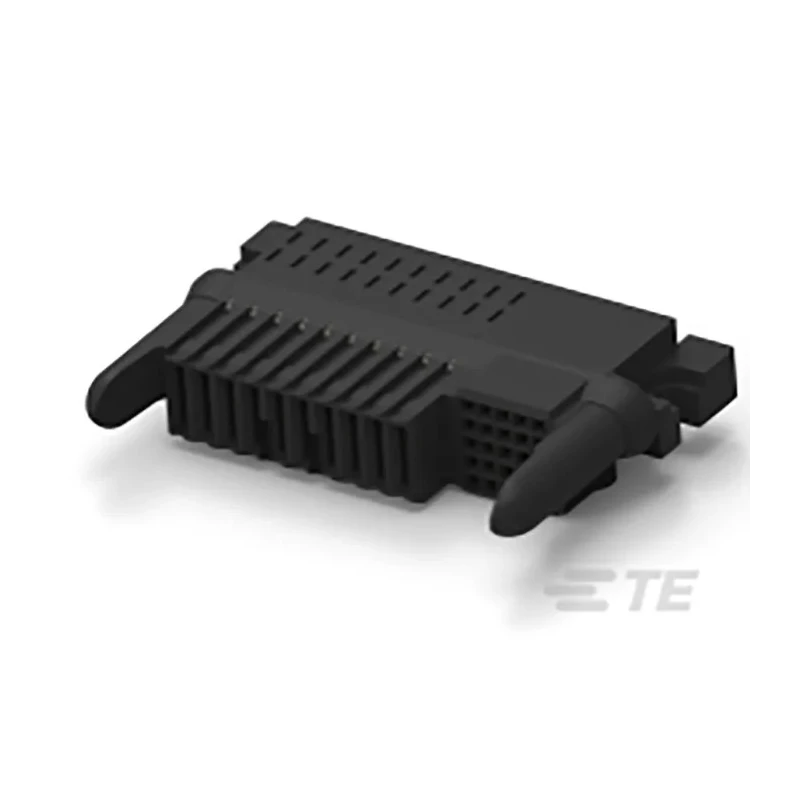

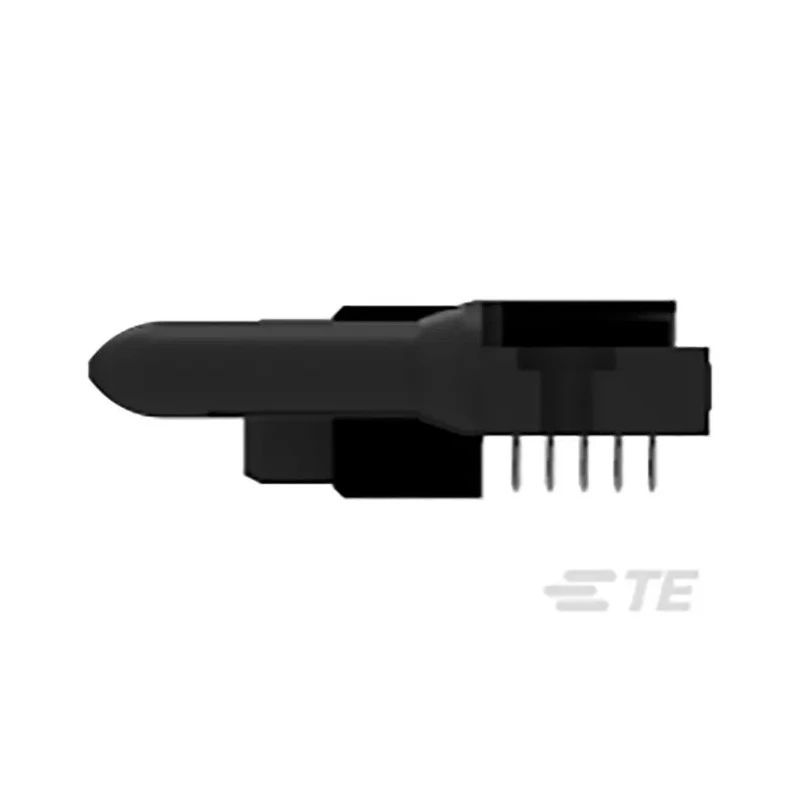

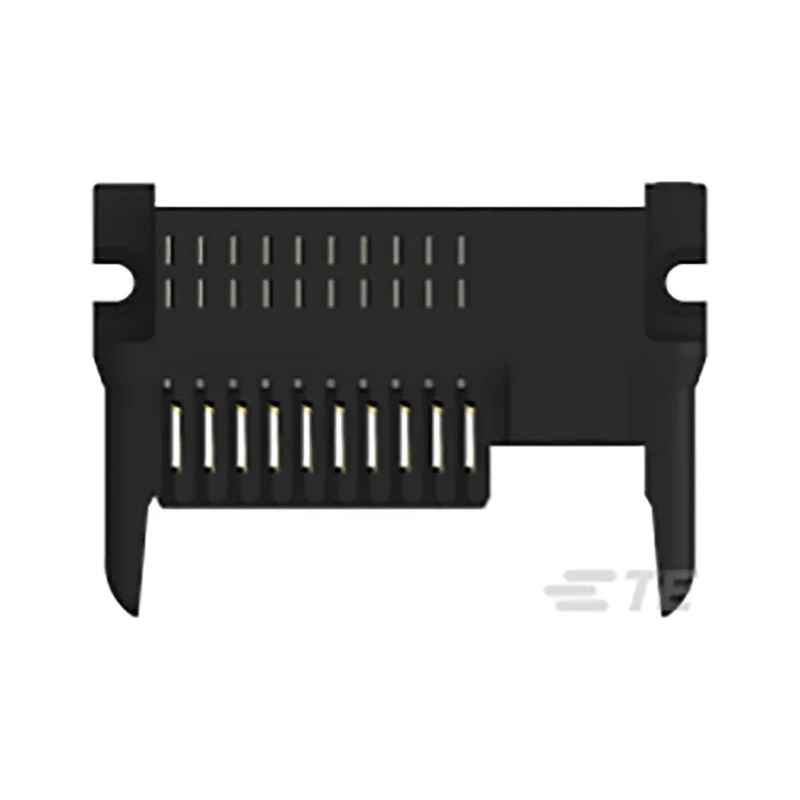

TE Connectivity MINIPAK 2.75 mm Pitch Backplane Connector Right Angle Female 5 Row 85 Way 2-1926739-5

TE Connectivity 2-1926739-5 is a MINIPAK series Backplane Connector featuring a 2.75 mm pitch, designed as a right angle female connector with 5 rows and 85 ways. The connector is optimized for board mounting and press fit termination type, supporting a current rating of 17A and voltage of 250V AC. Its thermoplastic housing provides durability and electrical insulation, while the copper contacts plated with nickel, gold, and tin ensure robust electrical performance and corrosion resistance.

This connector operates efficiently in demanding environments from -40°C minimum to 125°C maximum operating temperature, making it suitable for a variety of industrial applications, including power distribution systems where hot-swapping is needed. The connector's female gender and right-angle orientation allow for specific design integrations within printed circuit boards.

The MINIPAK series connectors are intended for precision applications with compliant pin contacts suitable for press-fit applications or wave soldering. This product comprises power and signal modules arranged across multiple rows, offering versatility in modular electronic setups.

Typical applications for the 2-1926739-5 include electronic component connectors in power and control systems across industrial, manufacturing, and electronics assembly sectors. This connector provides reliable contact integrity necessary for high current and voltage requirements.

Offers 85 contacts arranged in 5 rows for reliable connectivity. Supports a current rating of 17A suitable for power applications. Constructed with thermoplastic housing ensuring durability. Contact materials include copper with nickel, gold, and tin plating for corrosion resistance.

Designed for press-fit termination on board mount type applications. Operates over a wide temperature range from -40°C to 125°C. Compatible with 250V AC voltage for various electronic systems. Female connector gender suitable for specific mating requirements.

Part of the MINIPAK series tailored for modular hot-swappable power distribution systems. Complies with no specified standards or approvals and intended for industrial use cases. Explore more connectors and related electronic components on EnvMart, the platform for industrial-grade electronic, electrical, and automation products.
