HARTING 3 mm Pitch Hard Metric Backplane Connector, Straight Female, 4 Column, 4 Row, 4 Way 17660042201

Free Delivery in India | Lowest Global Shipping Charges

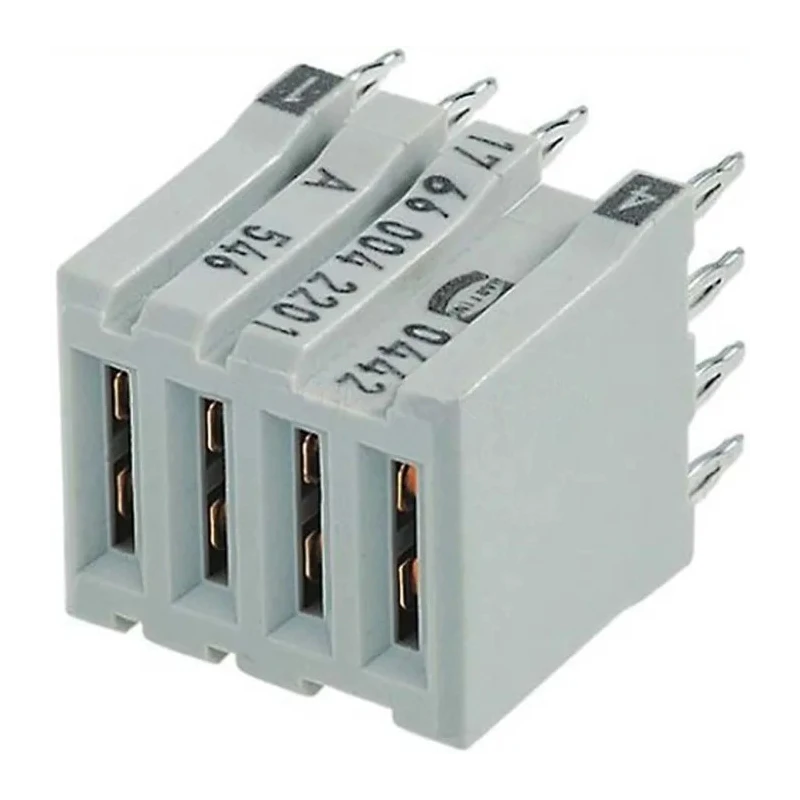

HARTING 3 mm Pitch Hard Metric Backplane Connector, Straight Female, 4 Column, 4 Row, 4 Way 17660042201

Name: HARTING 3 mm Pitch Hard Metric Backplane Connector, Straight Female, 4 Column, 4 Row, 4 Way 17660042201
Brand: HARTING
SKU: 260981
Price: 11.55 USD
Availability: InStock



Category Backplane Connector Brand HARTING Condition New

Specifications

Country of Origin	Germany
Voltage	1.5kV
Brand	HARTING
Orientation	Straight
Current	23A
Mount Type	Through Hole
Housing Material	Polybutylene Terephthalate
Contact Material	Copper Alloy
Series	1766
Termination Type	Press-in
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	4
Number of columns	4
Pitch	3mm
Contact Plating	Gold over Nickel
Number of Contacts	4
Contact Gender	Female
Connector Gender	Female
Backplane Connector Type	Hard Metric

Key Features

Designed for reliable connections in backplane applications using Hard Metric style.
Rated for a current of up to 23 amperes per contact.
Operates at a voltage rating of 1.5 kV with gold over nickel contact plating.
Constructed with polybutylene terephthalate housing material for durability and stability.
Press-in termination type suitable for through-hole mount installations.
Supports operating temperature range from -55°C minimum to 125°C maximum.
Complies with no specific standards but is designed under Har-Bus® HM series principles.
Manufactured in Germany ensuring high build quality.

Product Description

HARTING 17660042201 Hard Metric backplane connector is engineered for high performance electronic and power connections in demanding industrial, telecommunications, and computing applications. With a precise 3 mm pitch and a sturdy polybutylene terephthalate housing, this backplane connector ensures secure integration into backplane assemblies.

This connector features a straight female orientation arranged in 4 columns and 4 rows in a 4 way layout, providing versatile connectivity for complex printed circuit board designs. Rated for currents up to 23 amperes and 1.5 kV voltage tolerance, it supports robust electrical performance and signal integrity.

Gold over nickel plating on copper alloy contacts enhances corrosion resistance and electrical conductivity. The press-in termination type allows easy and reliable through-hole mounting, reducing assembly time in manufacturing processes.

Operating temperature ranges from -55°C to 125°C making it suitable for harsh environments including industrial automation, telecommunications base stations, and high-reliability equipment. This product belongs to the Harting Har-Bus® HM series, designed for OBSAI V1.1 compliant systems ensuring interoperability and consistent quality.

Manufactured in Germany, this connector aligns with high engineering standards and durability expectations often required in aerospace, defense, and high-end telecommunications sectors.

Reliable 4 column by 4 row configuration enabling multiple signal or power connections. High current rating per contact supports demanding power requirements. Robust materials chosen for longevity and consistent performance under thermal cycling.

Compatible with Har-Bus HM 2 mm connectors facilitating modular design options. Ideal for backplane and rack connector assemblies in industrial electronics. EnvMart provides this HARTING Backplane Connector as part of its extensive catalog of professional electronic connectors and components for industrial and scientific applications.
