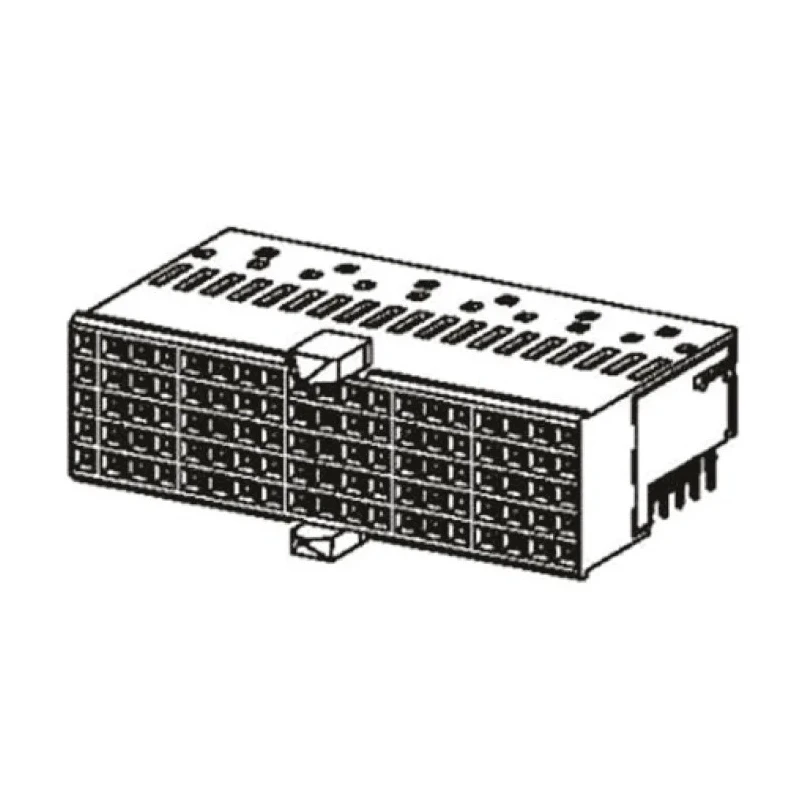

HARTING Hard Metric Type A/B Backplane Connector, Right Angle Female, 25 Column, 5 Row, 125 Way 17351252102

HARTING 17351252102 is a Hard Metric Type A/B backplane connector designed for electronic interconnections in industrial and commercial equipment. This right angle female connector provides 125 ways through 25 columns and 5 rows, with a 2 mm pitch optimized for compact and reliable signal transmission.

The connector housing is constructed from fibreglass reinforced thermoplastic, offering excellent mechanical strength and long-term durability in demanding environments. Contact points are made from copper alloy and plated with nickel and gold to ensure superior electrical conductivity and corrosion resistance.

Termination is achieved by press-in technology for secure through-hole mounting, facilitating robust mechanical and electrical connections. The connector operates effectively over a broad temperature range, from -55°C to 125°C, making it suitable for diverse industrial applications including automotive, telecommunications, and computing.

This connector supports a current rating of 1 amp and follows the har-bus HM series standard, which is known for modular interconnection systems targeting high speed applications. Manufactured in Germany, it meets precise engineering and quality assurance criteria.

Designed for high-speed data transmission with 2 mm pitch and multiple contact rows. Fibreglass reinforced thermoplastic housing offers high durability and mechanical strength. Copper alloy contacts with nickel and gold plating ensure reliable conductivity.

Press-in termination type suited for through-hole PCB mounting. Operates between -55°C and 125°C for wide industrial compatibility. Current rating of 1A supports stable electrical performance in demanding conditions. Compliant with har-bus HM series for modular connector solutions.

Manufactured in Germany, guaranteeing premium quality and product reliability.

This Backplane Connector is ideal for use in industrial electronics, automation systems, telecommunications, computer motherboards, and other applications requiring robust and precise PCB interconnections. Its modular design provides flexibility and reliability for complex wiring configurations.
