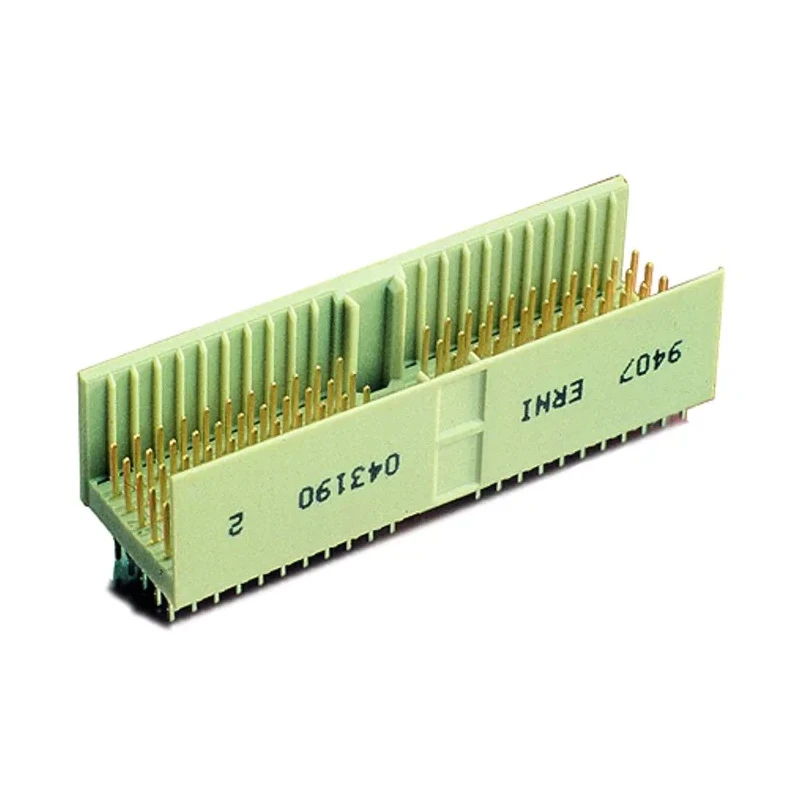

ERNI ERmet 2 mm Pitch Hard Metric Type A Vertical Male Backplane Connector 25 Column 7 Row 110 Way 053007 / 5100668-1

ERNI 053007 / 5100668-1 ERmet 2 mm Pitch Hard Metric Type A Backplane Connector is a high-density vertical male connector featuring 25 columns and 7 rows with a total of 110 contacts.

Designed for demanding backplane applications, this connector supports currents up to 1.5A and withstands operating temperatures from -55°C to 125°C, making it suitable for industrial, networking, telecommunications, and high-performance computing environments where reliability is critical.

The polybutylene terephthalate housing provides durability and electrical insulation, while the phosphor bronze contacts with gold plating ensure excellent electrical conductivity and resistance to corrosion.

This press fit termination connector enables secure and reliable PCB mounting without soldering, simplifying assembly and maintenance. The 2 mm pitch and modular design conform to the IEC 61076-4-101 international standard, ensuring interoperability with compatible systems.

The connector features three lengths of signal pins that provide three-stage sequential mating for front or rear hot-swappable applications, enhancing system uptime. Alignment and polarization features guarantee correct and secure mating to prevent damage.

High density 2 mm pitch vertical male backplane connector with 110 contacts. Supports current rating of 1.5A per contact. Durable polybutylene terephthalate housing material. Phosphor bronze contacts with gold plating for optimum performance.

Press fit termination for reliable PCB mounting. Wide operating temperature range: -55°C to 125°C. Conforms to IEC 61076-4-101 standard for Hard Metric connectors. 3-stage sequential mating for hot-swappable applications.

Alignment and polarization features for secure connections. Suitable for networking, telecommunications, industrial computing.

These ERmet connectors are widely used in backplane, board-to-board, and mezzanine applications, providing a cost-effective, high-performance interconnect solution. Their robust design and international standards compliance make them ideal for modern high density electronic systems.
