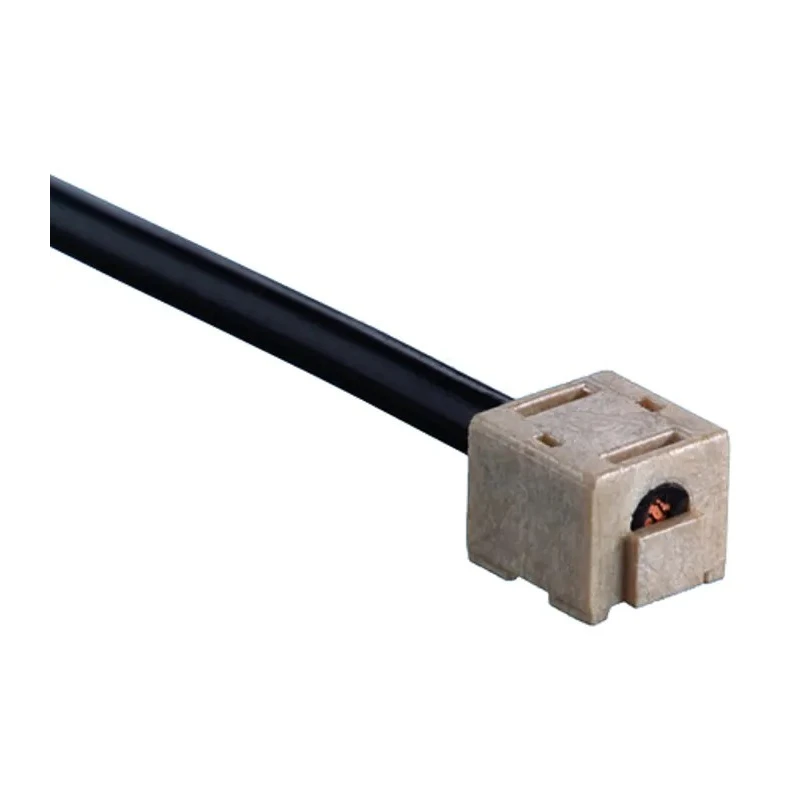

ERNI 2-Way IDC Connector for Surface Mount, 2 Row, 17.5A Current, Tin Plating 454303 / 454303-E
Specifications
| Country of Origin | India |
|---|---|
| Brand | ERNI |
| Orientation | Straight |
| Current | 17.5A |
| Model | 454303 / 454303-E |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Copper |
| Termination Type | IDC |
| Maximum Operating Temperature | 150.0°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Contact Plating | Tin |
| Number of Contacts | 2 |
Key Features
- Features a microminiature SMT IDC design for compact PCB space saving.
- Dual IDC contacts provide gas-tight, permanent electrical connections.
- Eliminates the need for wire preparation and special tooling.
- Suitable for both solid and stranded wire configurations.
- Supports automated board assembly with wire stop and feed-through options.
- Operates reliably from -55°C to 150°C temperature range.
- Designed for low profile, straight orientation surface mounting.
- Housing made from liquid crystal polymer for durability and stability.
Product Description
ERNI 454303 / 454303-E 2-Way IDC Connector for Surface Mount, featuring a 2-row microminiature SMT IDC design capable of carrying up to 17.5A current. This connector is designed for reliable, cost-effective, and user-friendly termination of discrete wires without the need for wire preparation or hand soldering.
The dual IDC contacts ensure a gas-tight permanent electrical connection, guided by the connector cap which also acts as strain relief. The connector offers a straight orientation mounting on the PCB with tin-plated copper contacts to prevent corrosion and ensure conductivity.
Constructed from durable liquid crystal polymer housing, it supports a temperature range of -55°C to 150°C, suitable for various industrial and commercial electronic applications. This connector eliminates the need for special tooling, facilitating easy and efficient assembly processes.
Variants include wire stop and feed-through configurations accommodating both solid and stranded wires, making this connector versatile for multiple wiring requirements. This model with stock number 917-5305 is specifically for stranded wire size AWG 22/7.
This product is ideal for use in compact and miniaturized electronic equipment such as retrofit LED lamps, medical devices, mobile and smart metering equipment where space-saving and reliable wire-to-board connections are critical.
Microminiature SMT IDC design for PCB space efficiency. Dual IDC contacts for reliable gas-tight connections. No wire preparation or hand soldering required. Straight orientation for surface mount applications. Operates within -55°C to 150°C temperature range.
Durable liquid crystal polymer housing. Supports stranded wire size AWG 22/7. Suitable for automated board assembly. Applications include medical, LED retrofit, and smart metering equipment. Discover the comprehensive range of IDC Connectors at EnvMart to find suitable components for your electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector has a current rating of 17.5A.
It operates reliably within a temperature range of -55°C to 150°C.
The housing is made from liquid crystal polymer, and the contacts are made of copper with tin plating.
This model features 2 rows.
It uses IDC (Insulation Displacement Contact) termination.
Yes, it supports automated board assembly with wire stop and feed-through options.
It is suitable for both solid and stranded wire configurations.
The connector is designed for straight orientation surface mounting.
The dual IDC contacts provide gas-tight, permanent electrical connections, guided by the connector cap which also acts as strain relief.
It is ideal for use in compact electronic equipment such as retrofit LED lamps, medical devices, and smart metering equipment.
The country of origin for this connector is India.
The contacts are tin plated to prevent corrosion and ensure conductivity.
