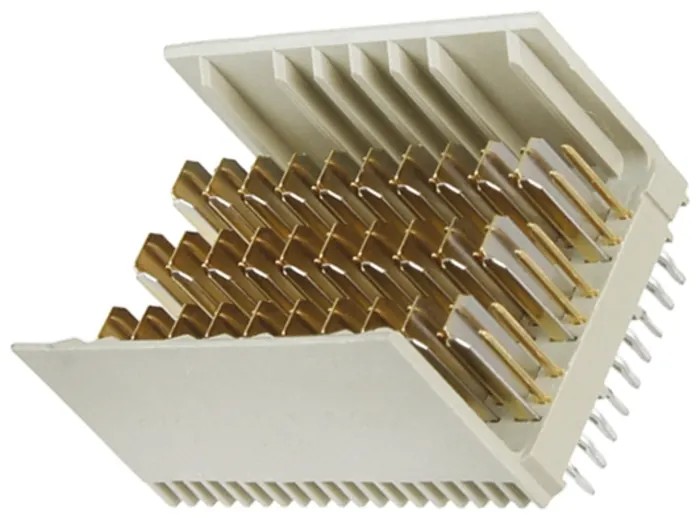

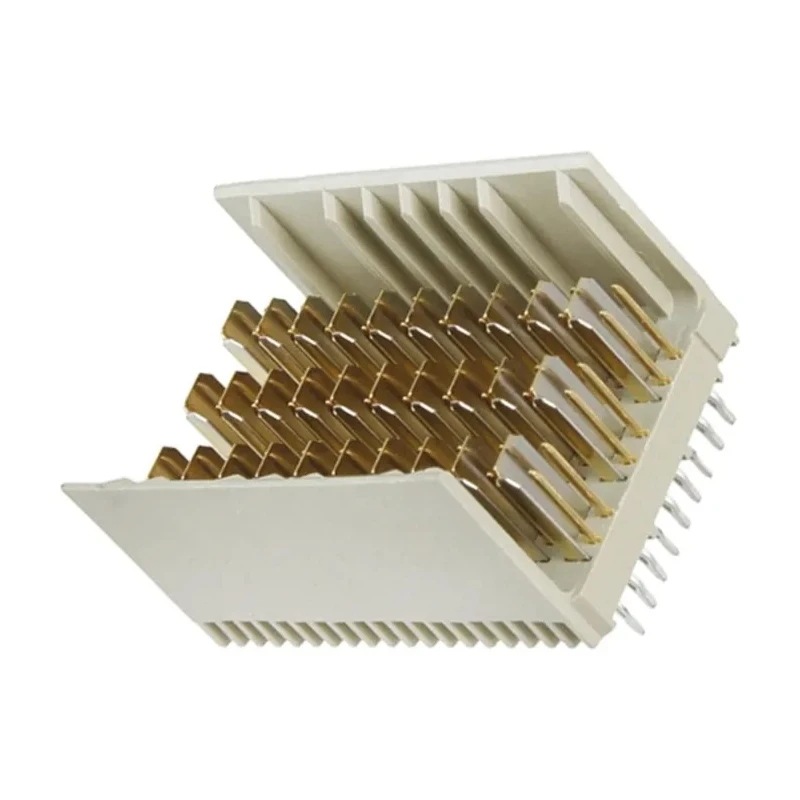

TE Connectivity Z-PACK HM-Zd 2.5 mm Pitch Backplane Connector, Straight Male, 10 Column, 3 Row, 60 Way 6469083-1

TE Connectivity 6469083-1 is a Z-PACK HM-Zd 2.5 mm pitch Backplane Connector designed for robust electronic connectivity in industrial and commercial applications. This connector features a straight male design with 10 columns and 3 rows, yielding 60 contact points suited for demanding backplane interconnects.

Constructed with a polyethylene terephthalate housing, the connector ensures excellent mechanical stability and electrical insulation. The phosphor bronze contacts with tin over nickel plating maximize conductivity while protecting against corrosion and wear.

Rated at 700mA current and 250V AC voltage, the connector provides reliable performance in power-sensitive environments. Operating temperature ranges from minus 65 degrees Celsius up to 105 degrees Celsius allow use in harsh industrial settings.

This product complies with the PICMG 3.x (ATCA) standard for high speed and high density board-to-backplane connections, delivering differential signaling between 3 to 6.4 Gb/s. The Z-PACK HM-Zd series connectors facilitate press-fit PCB through-hole mounting and integrate well within modular designs requiring secure and serviceable connections.

Manufactured in China, it is a quality component trusted in sectors such as industrial automation, telecommunications, and computing equipment. The connector supports a current rating of 700mA for reliable electrical performance.

It operates at a voltage of 250V AC ensuring safe connectivity. The housing is made from durable polyethylene terephthalate material. Contacts are fabricated from phosphor bronze with tin over nickel plating for enhanced conductivity and corrosion resistance.

Compatible with board mounting via solder termination type. Designed to withstand temperatures from -65°C to 105°C for versatile operational environments. This Z-PACK HM-Zd series connector meets stringent industry standards for backplane interconnects.

Provides a differential signaling solution conforming with IEC61076-4-101. Ideal for use as a backplane interconnect in PICMG 3.x (ATCA) industry standard systems. Connector gender is male with straight orientation for direct board connection.
