Molex 1.9 mm Pitch 3 Pair Backplane Connector Vertical Male 10 Column 9 Row 90 Way 76165-1107

Free Delivery in India | Lowest Global Shipping Charges

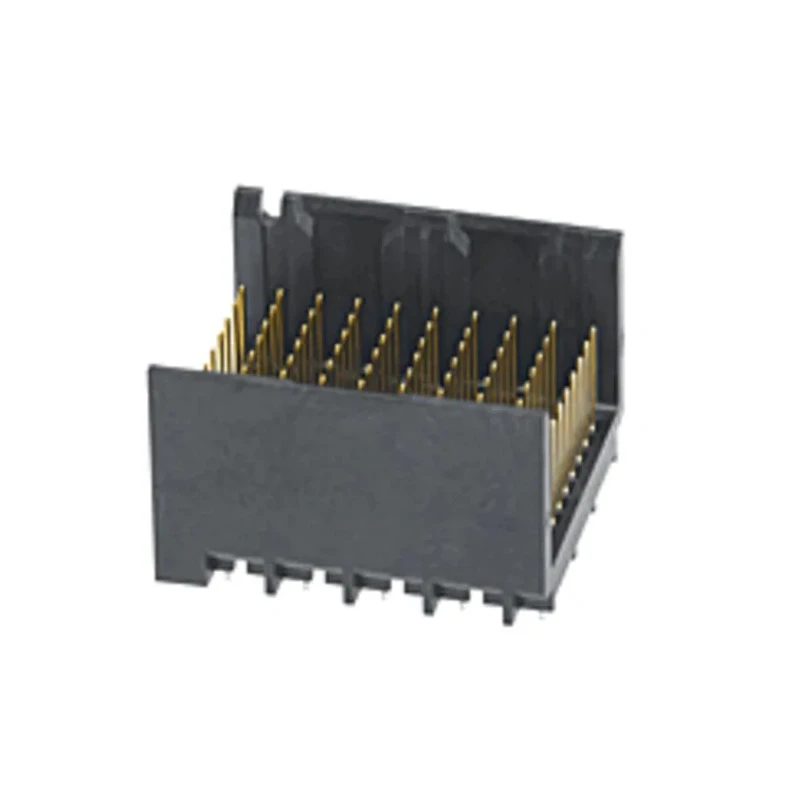

Molex 1.9 mm Pitch 3 Pair Backplane Connector Vertical Male 10 Column 9 Row 90 Way 76165-1107

Name: Molex 1.9 mm Pitch 3 Pair Backplane Connector Vertical Male 10 Column 9 Row 90 Way 76165-1107
Brand: Molex
SKU: 246087
Price: 14.06 USD
Availability: InStock



Category Backplane Connector Brand Molex Condition New

Specifications

Country of Origin	Singapore
Brand	Molex
Orientation	Vertical
Current	750mA
Mount Type	Through Hole
Housing Material	Thermoplastic
Contact Material	High Performance Alloy
Series	76165
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-55°C
Number of Rows	9
Number of columns	10
Pitch	1.9mm
Contact Plating	Tin, Gold
Number of Contacts	90
Contact Gender	Male
Connector Gender	Male
Backplane Connector Type	3 Pair

Key Features

The connector has a pitch of 1.9 mm to ensure compact and reliable connections.
Rated for current up to 750 mA and voltage up to 30 Vrms AC/DC.
Housing material is thermoplastic ensuring durability and insulation.
Contacts made from high performance alloy with tin and gold plating provide superior conductivity and corrosion resistance.
Mount type is through hole with solder termination for secure electrical and mechanical connection.
Operating temperature range extends from -55°C to 85°C for varied environmental conditions.
Suitable for applications including minicomputers and PCBs in industrial and electronic equipment.
Manufactured in Singapore with series number 76165.

Product Description

Molex 76165-1107 is a high-quality 3 Pair Backplane Connector designed for vertical mounting. It features 10 columns and 9 rows, providing a total of 90 contact points with a 1.9 mm pitch, catering to compact electronic assemblies. The connector is male gender with contacts plated in tin and gold for excellent conductivity and corrosion resistance.

Constructed with a thermoplastic housing, this connector ensures electrical insulation and mechanical resilience. It operates reliably between -55°C and 85°C, supporting use in various industrial and commercial electronic devices. The connector is rated for 750 mA current and 30 Vrms voltage, making it suitable for signal and low-power applications.

The through-hole mount type with solder termination provides secure and durable connections on printed circuit boards (PCBs). Ideal for integration in minicomputer systems and related electronic equipment, it enhances reliability in demanding environments. Manufactured in Singapore, the product meets industry standards for performance.

The connector has a pitch of 1.9 mm, supporting high-density connections. Rated current capacity of 750 mA and voltage of 30 Vrms AC/DC. Thermoplastic housing material ensures insulation and durability. Contact material is high performance alloy with tin and gold plating for superior electrical performance.

Through-hole mounting and solder termination type provide mechanical and electrical stability. Operating temperature range from -55°C up to 85°C for versatile applications. Contains 90 contact points arranged in 10 columns and 9 rows.

Series 76165, ensuring compatibility with related components and systems.

This Molex 76165-1107 backplane connector is well-suited for industrial electronics, computer systems, communication devices, and other precision electronic equipment. It supports critical connections in demanding conditions where reliability and signal integrity are essential.
