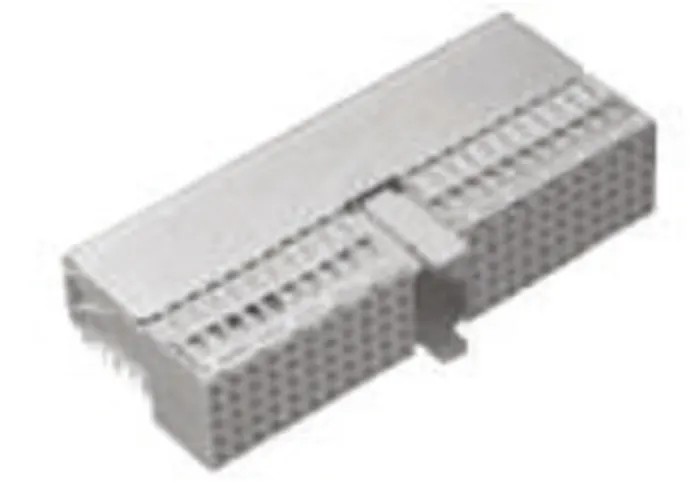

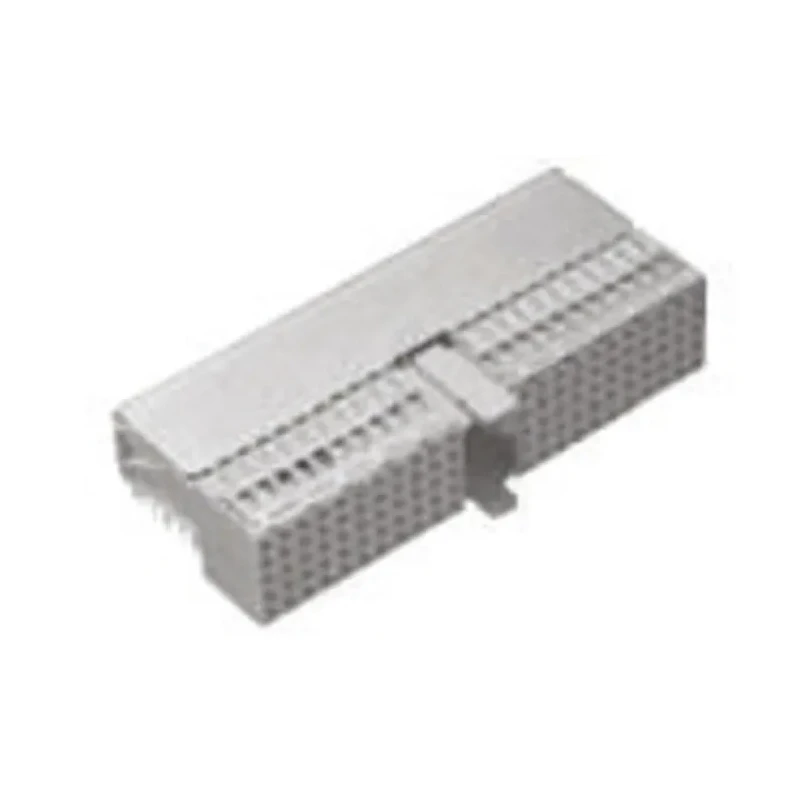

TE Connectivity Z-PACK HM 2 mm Pitch Hard Metric Type A Right Angle Female Backplane Connector, 22 Column, 5 Row 352068-1

TE Connectivity 352068-1 Z-PACK HM 2 mm Pitch Hard Metric Type A Backplane Connector is a right angle female connector featuring 110 contacts arranged in 22 columns and 5 rows. It is engineered for robust and reliable backplane interconnections on PCBs requiring high-density connectors with precise pitch and durable construction.

This Backplane Connector uses phosphor bronze contacts plated with gold over nickel to provide excellent electrical conductivity and corrosion resistance. The housing is constructed from polyethylene terephthalate, offering UL 94V-0 flame retardant properties suitable for industrial electronics applications.

Rated for continuous current of 1.5A and voltage up to 500V AC, the connector supports demanding signal and power transmission requirements. It operates effectively within a temperature range of -55°C to 125°C, facilitating use in various environmental conditions.

The Z-PACK HM system is designed as a two-part interconnection for mounting daughterboards or PCBs onto fixed motherboards or backplanes, feeding signals through circuit boards efficiently. The right angle orientation and through-hole mounting accommodate versatile PCB designs and stable mechanical support.

This connector is suitable for use in industrial, telecommunications, computing, and commercial electronic assemblies requiring high-density, reliable backplane interconnections. It features multi-purpose center mating alignment to ensure precise connector positioning and minimal crosstalk interference.

Hard Metric Type A connector with 2 mm pitch and Z-PACK HM series compatibility. 110 contacts arranged in 22 columns and 5 rows. Phosphor bronze contacts with gold over nickel plating for enhanced conductivity and durability.

Polyethylene terephthalate housing with UL 94V-0 flame retardancy. Rated for 1.5A current and 500V AC voltage. Operating temperature range from -55°C to 125°C. Right angle orientation for flexible PCB layouts with through-hole mount type.

Provides secure and precise backplane connections for demanding applications.
