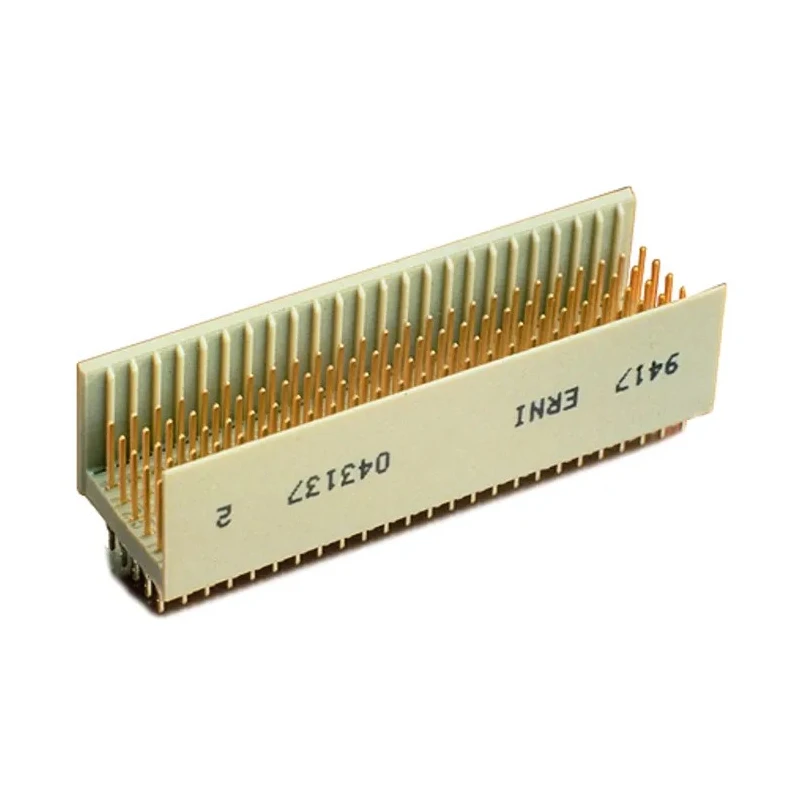

ERNI Backplane Connector Hard Metric Type B, Vertical Male, 19 Column 7 Row 95 Way, 2 mm Pitch 1.5A 103670 / 5352033-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | ERNI |
| Orientation | Vertical |
| Current | 1.5A |
| Model | 103670 / 5352033-1 |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Phosphor Bronze |
| Series | ERmet |
| Termination Type | Press Fit |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 7 |
| Number of columns | 19 |
| Pitch | 2mm |
| Contact Plating | Gold |
| Number of Contacts | 95 |
| Contact Gender | Male |
| Connector Gender | Male |
| Backplane Connector Type | Hard Metric Type B |
Key Features
- The connector features a 2 mm pitch for high-density applications.
- Current rating is 1.5 amps suitable for various electronic components.
- Constructed with polybutylene terephthalate housing for durable performance.
- Contacts are made of phosphor bronze with gold plating for excellent conductivity.
- The press fit termination ensures secure and easy mounting on PCBs.
- Operates reliably from -55°C up to 125°C for a wide range of environments.
- Designed to meet IEC 61076-4-101 standards for connector systems.
- Suitable for backplane, board-to-board, and mezzanine interconnects in industrial and telecommunications setups.
Product Description
ERNI 103670 / 5352033-1 backplane connector Hard Metric Type B is a high-quality vertical male connector designed for demanding electronic assemblies. With 19 columns and 7 rows, this connector offers 95 individual contact points, enabling high-density and reliable electrical connections.
The connector features a 2 mm pitch, aligned with international connector standards IEC 61076-4-101, allowing compatibility with various PCB arrangements including backplane, board-to-board, and mezzanine applications. Its polybutylene terephthalate housing provides mechanical strength and stability across industrial environments.
The phosphor bronze contacts with gold plating ensure excellent conductivity, corrosion resistance, and long contact wipe length of 2.5 mm to maintain consistent connections even under adverse conditions. The press fit termination allows simple, secure, and solderless mounting on printed circuit boards.
The ERmet series supports wide operating temperatures from -55°C to 125°C, making it suitable for rigorous industrial applications including telecommunications, networking systems, and high-performance industrial computing where PICMG specifications are employed.
Additional features include 3-stage sequential mating for hot-swappable applications, alignment and polarization properties, and optional shielding contact rows for improved signal integrity. The design also supports location pegs for PCB rigidity and polarization.
This connector is ideal for environments requiring high current carrying rating of up to 1.5A and durable, long-lasting interconnect solutions. Perfect for CompactPCI interconnect systems and multi-level sequential mating scenarios.
The connector offers high density design with 95 contacts. Conforms to IEC 61076-4-101 international connector standards. Long contact wipe length of 2.5 mm improves reliability. Press fit terminations provide secure PCB mounting without soldering.
Wide temperature range operation from -55°C to 125°C. Phosphor bronze contacts with gold plating ensure high conductivity. Supports hot swap with 3-stage sequential mating capability. Optional shielding and PCB location pegs improve performance and mechanical stability.
Explore more Backplane Connectors and components for industrial electronics and telecommunications applications at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector has a current rating of 1.5A, making it suitable for various electronic components.
It features a 2 mm pitch, which is aligned with international connector standards for high-density applications.
The housing is made of polybutylene terephthalate, while the contacts are constructed from phosphor bronze with gold plating for excellent conductivity.
This connector operates reliably within a temperature range of -55°C to 125°C, suitable for a wide range of environments.
It has a total of 95 individual contact points, arranged in 19 columns and 7 rows.
It utilizes a press fit termination type, allowing for secure and solderless mounting on printed circuit boards.
Yes, it supports hot-swappable applications with a 3-stage sequential mating design.
It is designed to meet IEC 61076-4-101 standards for connector systems, ensuring compatibility with various PCB arrangements.
The connector features male contacts, which are suitable for various interconnect applications.
The long contact wipe length of 2.5 mm improves reliability by maintaining consistent connections even under adverse conditions.
It is suitable for backplane, board-to-board, and mezzanine interconnects in industrial and telecommunications setups.
It includes alignment and polarization properties, as well as optional shielding contact rows for improved signal integrity.
