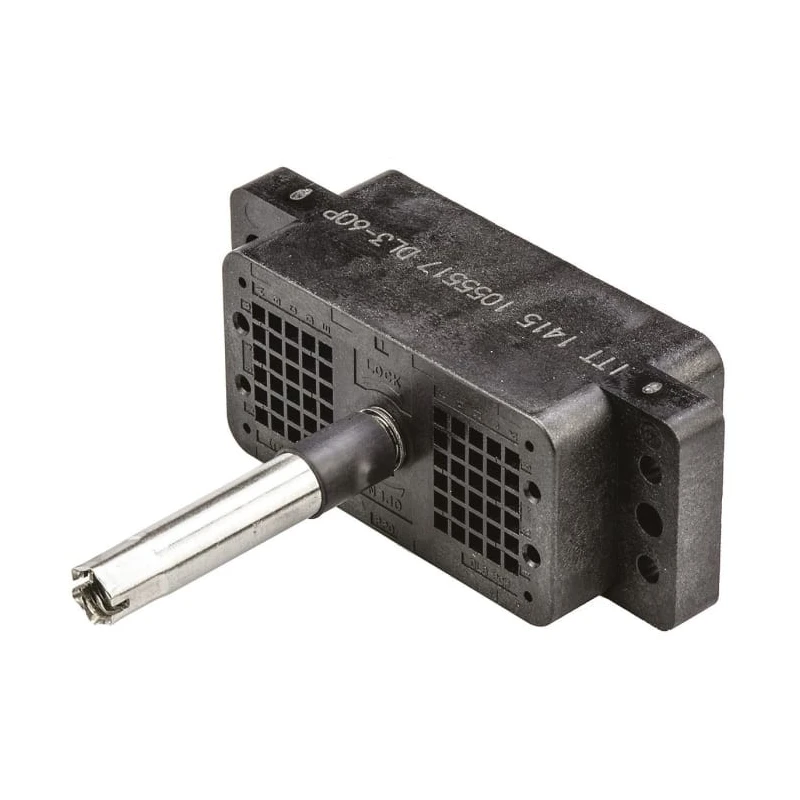

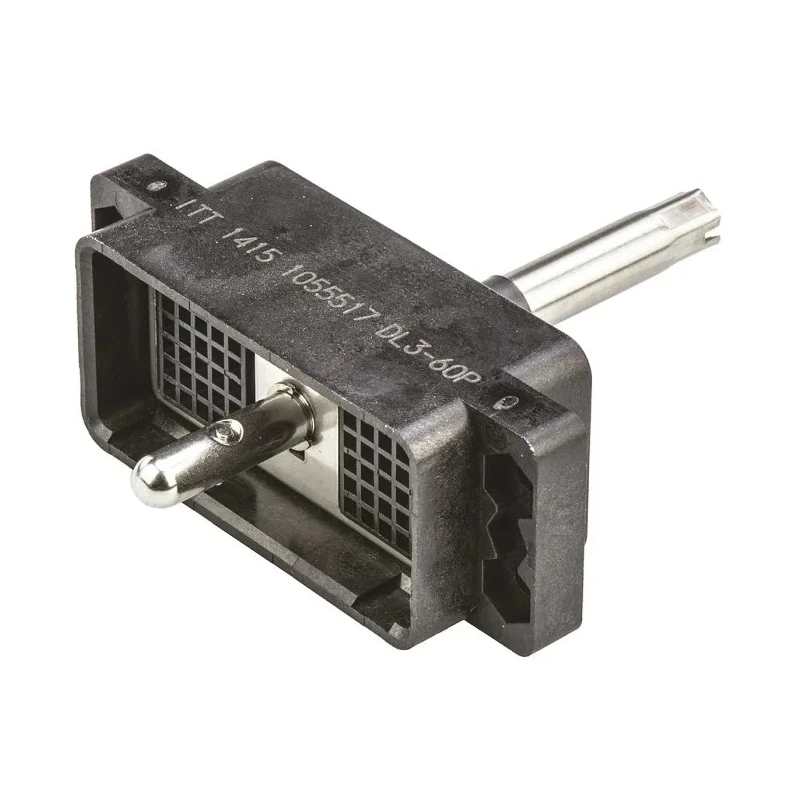

ITT Cannon DL 2.54 mm Pitch CanNon-ZIF Plug Body, Straight Male, 60 Way DL3-60P

Free Delivery in India | Lowest Global Shipping Charges

ITT Cannon DL 2.54 mm Pitch CanNon-ZIF Plug Body, Straight Male, 60 Way DL3-60P

Name: ITT Cannon DL 2.54 mm Pitch CanNon-ZIF Plug Body, Straight Male, 60 Way DL3-60P
Brand: ITT CANNON
SKU: 143533
Price: 164.31 USD
Availability: InStock



Category Backplane Connector Brand ITT CANNON Condition New

Specifications

Country of Origin	China
Voltage	1.2V
Brand	ITT Cannon
Orientation	Straight
Current	5A
Model	DL3-60P
Mount Type	Panel
Housing Material	Thermoplastic
Contact Material	Copper Alloy
Series	DL
Termination Type	Crimp
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-55°C
Pitch	2.54mm
Contact Plating	Gold over Nickel
Number of Contacts	60
ANSI/ESD S20.20	2014
BS EN 61340-5-1	2007
Contact Gender	Male
Connector Gender	Male
Backplane Connector Type	CanNon-ZIF
ITT Cannon, DLM ZIF Plug Body, Straight Male, 2 Column, 5 Row, 60 WayBrand	ITT Cannon

Key Features

Features 60 contacts with gold over nickel plating on copper alloy contacts for excellent conductivity.
Supports a voltage rating of 1.2 V and current rating of 5 A for reliable electrical performance.
Constructed with a thermoplastic housing material suitable for temperatures ranging from -55°C to 105°C.
Designed for crimp termination and panel mount use, ensuring secure and durable connections.
Provides long operational life with 10,000 mating cycles and moulded alphanumeric cavity grid reference for easy identification.
Includes backshell and polarising options to guarantee correct orientation and strain relief.
Suitable for broadcast, avionics, computer, and medical instrumentation applications.
Manufactured in China under the DL series with no additional standards or approvals listed.

Product Description

ITT Cannon DL3-60P CanNon-ZIF Plug Body is a high-density backplane connector featuring a 2.54 mm pitch and 60 male contacts. Its straight orientation with crimp termination and panel mount type makes it ideal for multi-wire power and signal applications where reliable and quick mating is essential.

The contacts are made of copper alloy with gold plating over nickel, ensuring highly conductive and corrosion-resistant connections. The thermoplastic housing provides robust mechanical protection and thermal stability across an operating temperature range of -55°C to 105°C.

This connector is designed to withstand long service life with up to 10,000 mating cycles. The moulded alphanumeric cavity grid reference facilitates easy and accurate wiring. The backshell and polarising features prevent incorrect mating and provide strain relief, enhancing durability under demanding industrial and commercial conditions.

Applications for the ITT Cannon DL3-60P include broadcast equipment, avionics systems, computer hardware, and medical instrumentation where consistent electrical connectivity and performance are critical.

60 contacts with gold-plated copper alloy for excellent conductivity. Voltage rating: 1.2V and current rating: 5A for reliable power delivery. Thermoplastic housing suitable for harsh environments. Panel mount with crimp termination for secure connections.

Long durability with 10,000 mating cycles. Backshell and polarising options for correct orientation and strain relief. Operating temperature range from -55°C to 105°C. Manufactured in China as part of the DL series. Explore the extensive range of Backplane Connectors on EnvMart for high-quality and reliable power and signal connectivity solutions.
