TE Connectivity Z-PACK 2 mm Pitch Futurebus+ Backplane Connector Straight Male 24 Column 4 Row 24 Way 5536501-1

Free Delivery in India | Lowest Global Shipping Charges

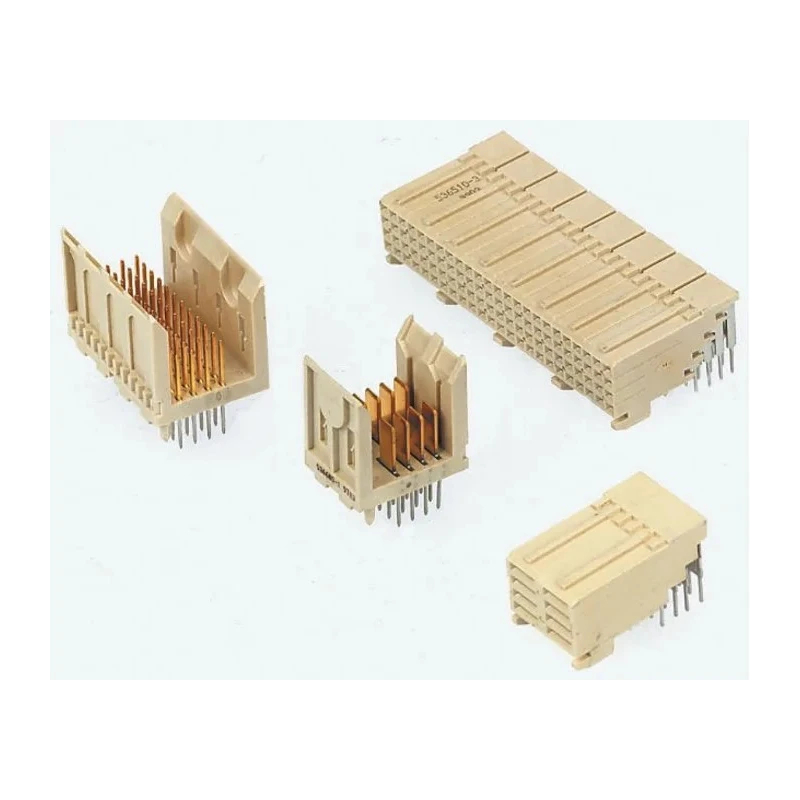

TE Connectivity Z-PACK 2 mm Pitch Futurebus+ Backplane Connector Straight Male 24 Column 4 Row 24 Way 5536501-1

Name: TE Connectivity Z-PACK 2 mm Pitch Futurebus+ Backplane Connector Straight Male 24 Column 4 Row 24 Way 5536501-1
Brand: TE Connectivity
SKU: 169872
Price: 11.18 USD
Availability: InStock



Category Backplane Connector Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Brand	TE Connectivity
Orientation	Straight
Mount Type	Through Hole
Housing Material	Liquid Crystal Polymer
Contact Material	Phosphor Bronze
Series	Z-PACK
Termination Type	Solder
Number of Rows	4
Number of columns	24
Pitch	2mm
Contact Plating	Gold
Number of Contacts	24
Contact Gender	Male
Connector Gender	Male
Backplane Connector Type	Futurebus+

Key Features

Features liquid crystal polymer housing for durability.
Contact material is phosphor bronze with gold plating for reliable conductivity.
Designed with a 2 mm pitch for high-density connections.
Mount type is through hole suitable for PCB installation.
Termination type is solder ensuring secure electrical connections.
Complies with Futurebus+ and IEC 1076-4-0X-(48B) standards.
High speed and modular design facilitating stacked interconnections.
Ideal for connecting daughterboards to fixed motherboards or backplanes.

Product Description

TE Connectivity 5536501-1 Backplane Connector is a high-density, high-speed Z-PACK 2 mm pitch Futurebus+ connector designed for interconnection in electronic assemblies. It features a straight male orientation with 24 columns and 4 rows, providing 24 contacts for robust signal transmission.

The connector housing is made of liquid crystal polymer, a material known for its strength and thermal stability, ensuring long-term reliability. Contacts are made from phosphor bronze with gold plating to provide excellent conductivity and corrosion resistance.

With a 2 mm pitch and through-hole mount type, this connector is ideal for secure mounting on printed circuit boards (PCBs) and is terminated by soldering for a dependable electrical connection.

This Z-PACK connector series complies with the Futurebus+ standard and IEC 1076-4-0X-(48B), supporting high-speed data transmission and modular end-to-end stackable designs. It is engineered for applications requiring connection between daughterboards (free boards) and motherboards or backplanes (fixed boards), making it suitable for industrial electronics, computing hardware, and telecommunications equipment.

The male connector gender ensures compatibility with female connectors and supports seamless integration into complex electronic systems. Housing material of liquid crystal polymer for strength and thermal stability. Phosphor bronze contacts with gold plating provide optimal electrical performance.

2 mm pitch supports dense pin spacing for compact designs. Through-hole mount type ensures secure PCB attachment. Solder termination offers reliable and strong connection. Complies with Futurebus+ and IEC industrial standards.

Modular, high-speed design for versatile applications. Supports daughterboard to motherboard/backplane connections. Male gender configuration for compatible mating. Suitable for use in electronics manufacturing, industrial controls, and telecommunications.
