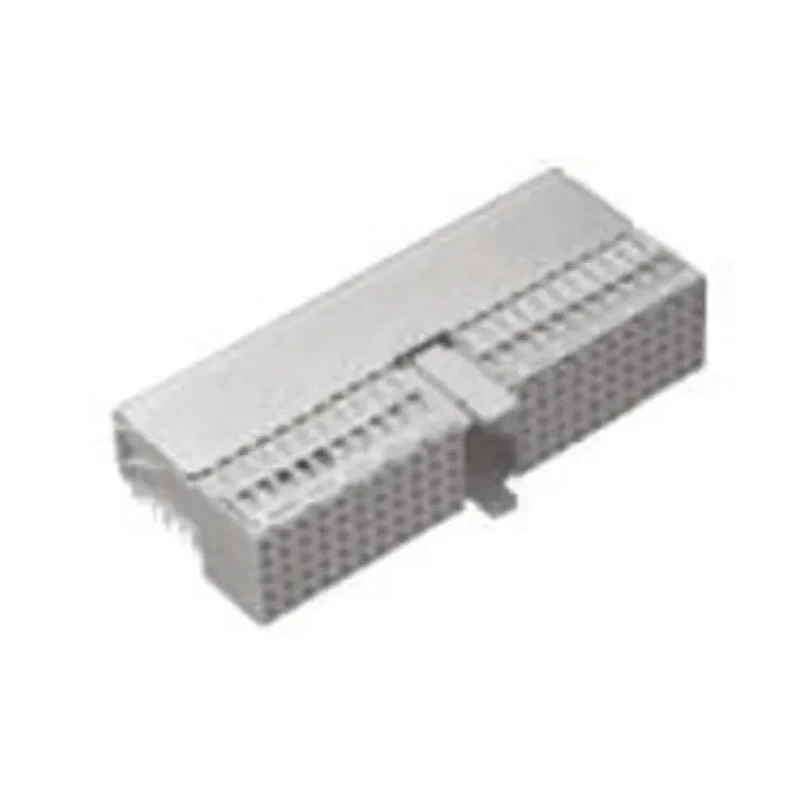

TE Connectivity Z-PACK HM 2 mm Pitch Hard Metric Type A Backplane Connector, Right Angle Female, 22 Column, 5 Row 352068-1
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 500V ac |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 1.5A |
| Model | 352068-1 |
| Mount Type | Through Hole |
| Housing Material | Polyethylene Terephthalate |
| Contact Material | Phosphor Bronze |
| Series | Z-PACK HM |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 5 |
| Number of columns | 22 |
| Pitch | 2mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 110 |
| Contact Gender | Female |
| Connector Gender | Female |
| Backplane Connector Type | Hard Metric Type A |
Key Features
- Designed for 500V AC voltage and 1.5A current capacity.
- Constructed with a polyethylene terephthalate housing for durability.
- Features gold over nickel plated phosphor bronze contacts to ensure reliable connectivity.
- Mount type is through hole with solder termination for robust installation.
- Supports operating temperatures from -55°C to 125°C.
- Includes 22 columns and 5 rows configuration for high-density connections.
- Right-angle female connector suitable for PCB integration.
Product Description
TE Connectivity model 352068-1 is a high-quality 2 mm pitch Hard Metric Type A backplane connector designed to provide reliable connections in industrial electronic assemblies. This backplane connector supports a maximum voltage of 500V AC and a current rating of 1.5A, making it suitable for demanding electrical applications.
The connector features a robust housing made of polyethylene terephthalate, offering excellent mechanical stability and resistance to environmental factors. The contacts are made from phosphor bronze with gold over nickel plating, ensuring low contact resistance and long-lasting durability in electronic circuits.
This right-angle female backplane connector includes 110 contacts arranged in 22 columns and 5 rows, which caters to high-density PCB interconnections using a through-hole mount style with solder termination for secure and reliable assembly.
Designed to operate within a temperature range from -55°C to 125°C, this connector is ideal for use in industrial, manufacturing, and electronics applications requiring stable performance under varying environmental conditions.
The Z-PACK HM series connectors from TE Connectivity offer versatility and robust performance for free and fixed board PCB mounting with options for shielding and alignment, aiding compatibility with various CompactPCI designs and other systems.
Designed for 500V AC voltage and 1.5A current capacity. Constructed with a polyethylene terephthalate housing for durability. Features gold over nickel plated phosphor bronze contacts to ensure reliable connectivity. Mount type is through hole with solder termination for robust installation.
Supports operating temperatures from -55°C to 125°C. Includes 22 columns and 5 rows configuration for high-density connections. Right-angle female connector suitable for PCB integration.
This TE Connectivity Z-PACK HM backplane connector is designed for industrial electronics, laboratory equipment, HVAC systems, manufacturing, and communication infrastructure where reliable backplane connections are critical. Browse similar Backplane Connectors and related products at EnvMart for your next project.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for this backplane connector is 500V AC.
This connector has a current capacity of 1.5A.
The housing of this connector is constructed from polyethylene terephthalate.
It features gold over nickel plated phosphor bronze contacts for reliable connectivity.
This backplane connector includes a total of 110 contacts.
The operating temperature range for this connector is from -55°C to 125°C.
This model uses a through-hole mount type with solder termination for installation.
The connector is designed in a right-angle orientation.
The contact arrangement consists of 22 columns and 5 rows, providing high-density connections.
This connector belongs to the Z-PACK HM series.
It utilizes solder termination for secure assembly.
The connector is manufactured in India.
