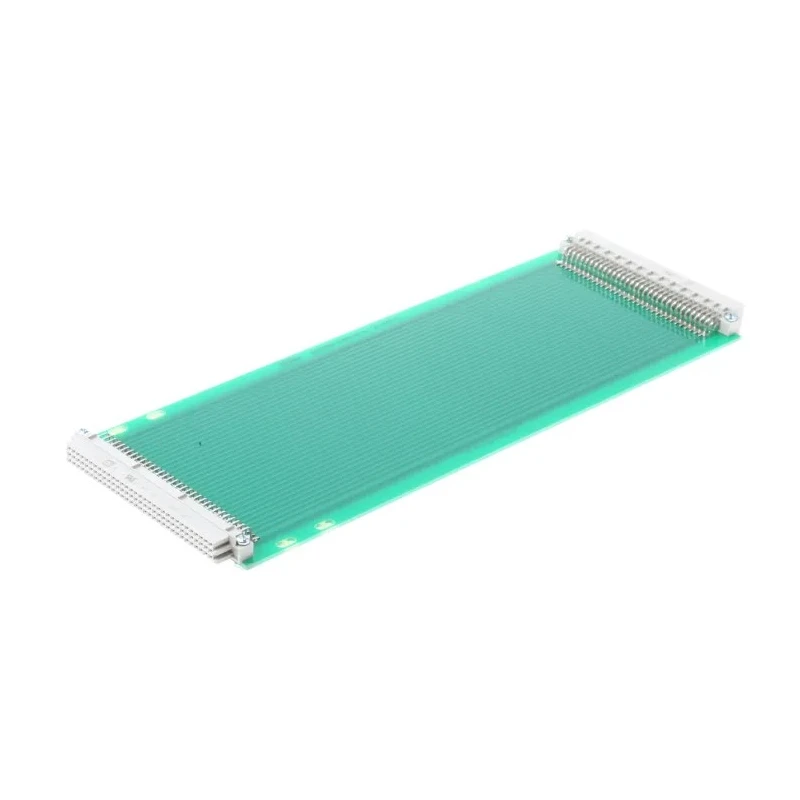

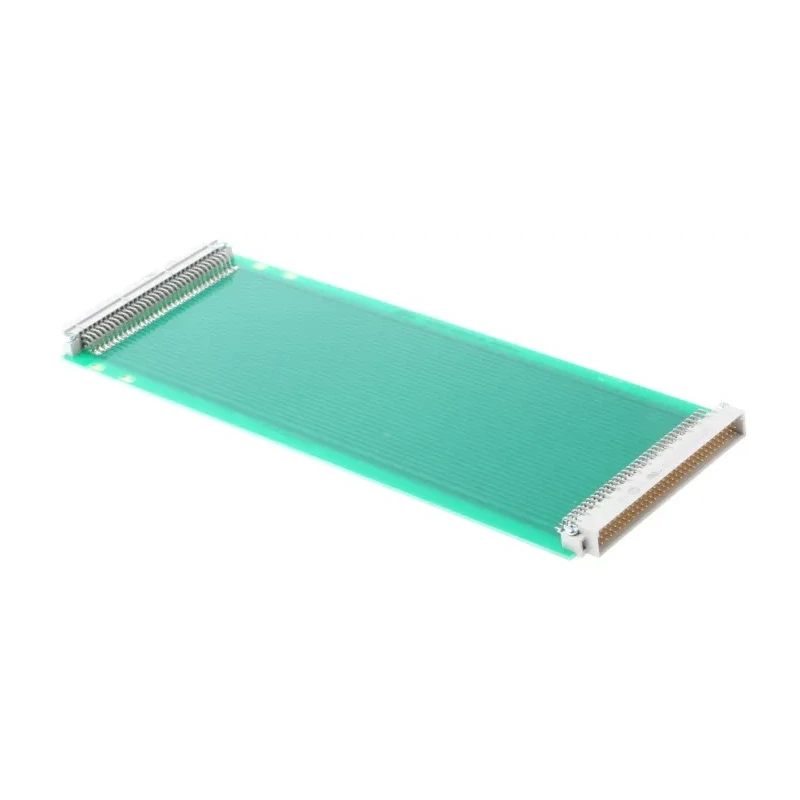

RS PRO 96 Way Double-Sided DIN 41612 Extender Board Adapter FR4 281.6 x 100 x 1.6 mm 159-6300

Free Delivery in India | Lowest Global Shipping Charges

RS PRO 96 Way Double-Sided DIN 41612 Extender Board Adapter FR4 281.6 x 100 x 1.6 mm 159-6300

Name: RS PRO 96 Way Double-Sided DIN 41612 Extender Board Adapter FR4 281.6 x 100 x 1.6 mm 159-6300
Brand: RS PRO
SKU: 216303
Price: 400.19 USD
Availability: InStock



Category Extender Board Brand RS PRO Condition New

Specifications

Country of Origin	United Kingdom
Brand	RS PRO
Length	281.6mm
Model	159-6300
Width	100mm
Sub Type	Extender Board
Board Material	Epoxy Glass Fabric Laminate
Standards/Approvals	DIN 41612
Number of Contacts	96
Number of Sides	2
Board Thickness	1.6mm
FR Material Grade	FR4
Copper Thickness	35μm

Key Features

Constructed with durable FR4 material grade ensuring board reliability.
Features epoxy glass fabric laminate base material for strength and insulation.
Supports 96 contacts over two sides with a copper thickness of 35 μm.
Board dimensions measure 281.6 mm length, 100 mm width, and 1.6 mm thickness.
Provides a solder resistant coating to prevent bridging and protect fingers.
Compliant with DIN 41612 standards for connector compatibility.
Designed for use in testing printed circuit boards in Eurocard formats.
Manufactured in the United Kingdom assuring quality and traceability.

Product Description

RS PRO 159-6300 Extender Board is a 96 Way Double-Sided DIN 41612 extender board constructed using FR4 material grade. With exact dimensions of 281.6 x 100 x 1.6 mm, this board is ideal for testing and debugging printed circuit boards (PCBs) in both single and double-height Eurocard formats. The epoxy glass fabric laminate base provides excellent mechanical strength and electrical insulation, while the 35 μm copper thickness enhances conductivity.

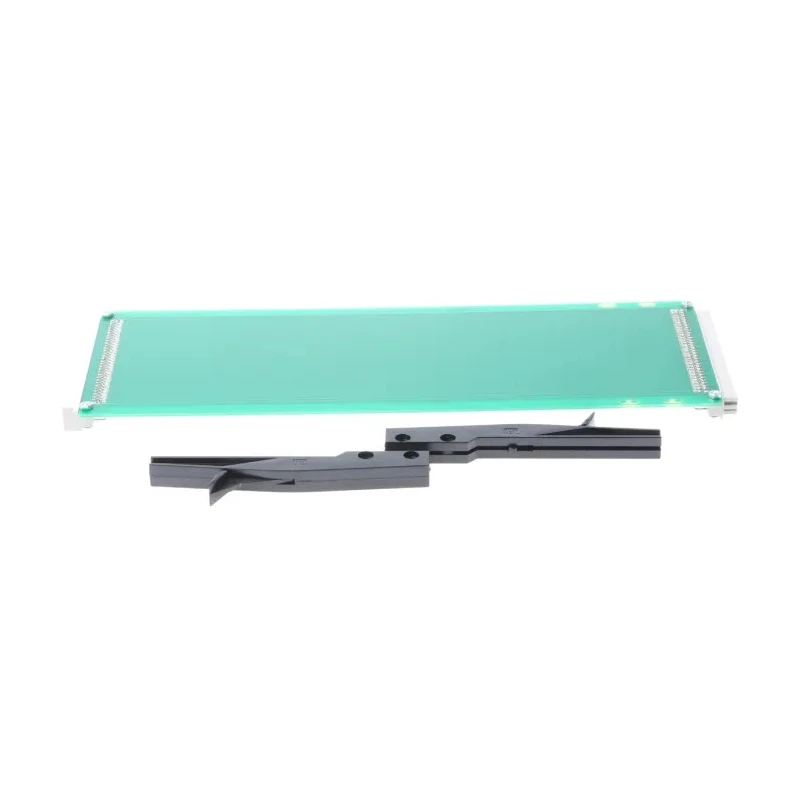

The board allows connection through 96 contacts spread over two sides and features a solder-resistant coating that prevents solder bridging and keeps the user's fingers stain-free. This extender board can be easily plugged directly into a subrack connector using its unique support and ejector mechanism, supporting secure and efficient testing before mass programming or assembly.

Compliant with DIN 41612 standards, this extender board is well suited for use in electronic prototyping, troubleshooting, and system integration settings. It is commonly utilized in industrial electronics, laboratory environments, manufacturing test stations, and development settings where Eurocard PCB formats are used.

Durable FR4 board material ensures mechanical and electrical reliability. Epoxy glass fabric laminate base provides strong insulation and stability. Supports 96 contacts across two board sides for extensive connectivity.

Coated with solder-resistant finish to avoid shorts and contamination. Designed for direct use in subrack connectors with ejector support. Meets DIN 41612 standards for broad electronic compatibility. Manufactured in the United Kingdom with high craftsmanship standards.

Ideal solution for PCB testing and prototyping in industrial applications.

This Extender Board is an essential accessory for engineers and technicians working with Eurocard PCBs, enabling safe and efficient debugging without the need for full device disassembly. Explore more industrial electronic components and prototyping boards on EnvMart to support your engineering projects.
