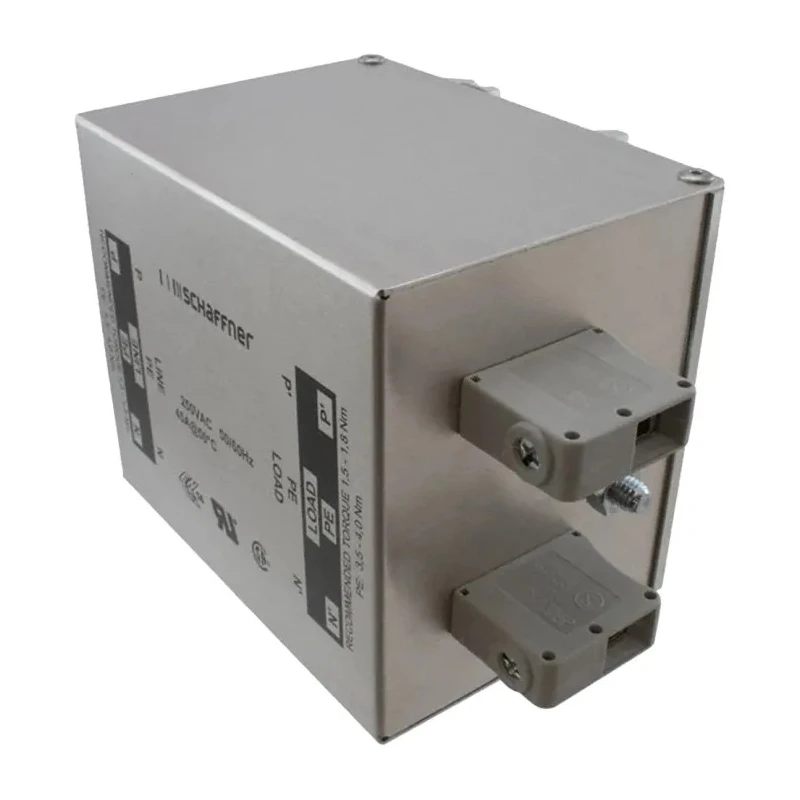

Schaffner DIN Rail EMC Filter 16 A 520V AC 400Hz Terminal Block 2 Phase FN2412H
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schaffner |
| Height | 73mm |
| Length | 154mm |
| Model | FN2412H |
| Depth | 93mm |
| Mount Type | DIN Rail |
| Operating Frequency | 400Hz |
| Series | FN2412H |
| Maximum Operating Temperature | 100°C |
| Number Of Stages | 1 |
| Capacitance | 4.7μF |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 16A |
| Number of Phases | 2 |
| Leakage Current | 3.4mA |
| Maximum Voltage | 520V ac |
| Termination Style | Terminal Block |
| Power Loss | 3.5W |
Key Features
- Rated for maximum current of 16 amperes.
- Supports maximum voltage of 520 volts AC.
- Mounts securely on DIN rail, type TS 35.
- Features terminal block style termination for easy connection.
- Operates effectively at frequency of 400Hz.
- Capacitance value of 4.7 microfarads enhances filtering performance.
- Designed with a single stage and two phases.
- Operating temperature range from -25°C to 100°C.
Product Description
Schaffner FN2412H DIN Rail EMC Filter is a high-quality, industrial-grade power line filter designed for applications requiring effective electromagnetic interference suppression on 2-phase systems. Rated for a maximum current of 16 amperes and a maximum voltage of 520 volts AC, this filter operates reliably at 400 Hz frequency. It is suitable for mounting on a standard DIN rail (type TS 35) commonly used in industrial electrical panels for ease of installation and maintenance.
This EMC filter features terminal block termination style for secure and convenient wiring connections. With a capacitance of 4.7 microfarads, it efficiently reduces noise and interference that may affect sensitive electronic equipment and industrial control systems.
The FN2412H series filter operates within a temperature range from -25°C to 100°C, ensuring durability and reliability under harsh industrial environments. It incorporates a single-stage design, suitable for demanding applications with high interference levels. Leakages are minimized with a maximum leakage current of 3.4 milliamperes, and the device maintains low power loss of 3.5 watts, supporting energy efficiency.
Its compact dimensions, measuring 154 mm in length, 93 mm in depth, and 73 mm in height, allow for easy integration into electrical panels without consuming excessive space.
This product is ideal for use across varied industrial sectors such as manufacturing, power distribution, automation systems, and instrumentation that require robust EMI filtering solutions complying with EN 133 200 and approvals UL1283 and CSA22.2 No.8 1986.
Rated maximum current: 16A. Maximum voltage: 520V AC. DIN rail mounting, type TS 35. Terminal block style termination. Operating frequency: 400Hz. Capacitance: 4.7μF. Operating temperature: -25°C to 100°C. Leakage current: 3.4mA.
Power loss: 3.5W. Compact dimensions: 154x93x73 mm (LxDxH).
Choose the Schaffner FN2412H EMC Filter for reliable EMI suppression in your 2-phase electrical systems. Browse more high-quality EMI filters and related electronic components on EnvMart for comprehensive industrial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The FN2412H EMC filter has a maximum current rating of 16 amperes.
This model supports a maximum voltage of 520 volts AC.
The operating frequency of the FN2412H is 400 Hz.
The dimensions of the FN2412H are 154 mm in length, 93 mm in depth, and 73 mm in height.
This EMC filter is designed for mounting on a DIN rail, type TS 35.
The capacitance value of the FN2412H is 4.7 microfarads.
The FN2412H operates within a temperature range from -25°C to 100°C.
The maximum leakage current for this filter is 3.4 milliamperes.
The power loss for the FN2412H is 3.5 watts.
The FN2412H features a terminal block termination style for easy and secure wiring connections.
This EMC filter is designed for use in 2-phase systems.
The FN2412H belongs to the FN2412H series of EMC filters.
