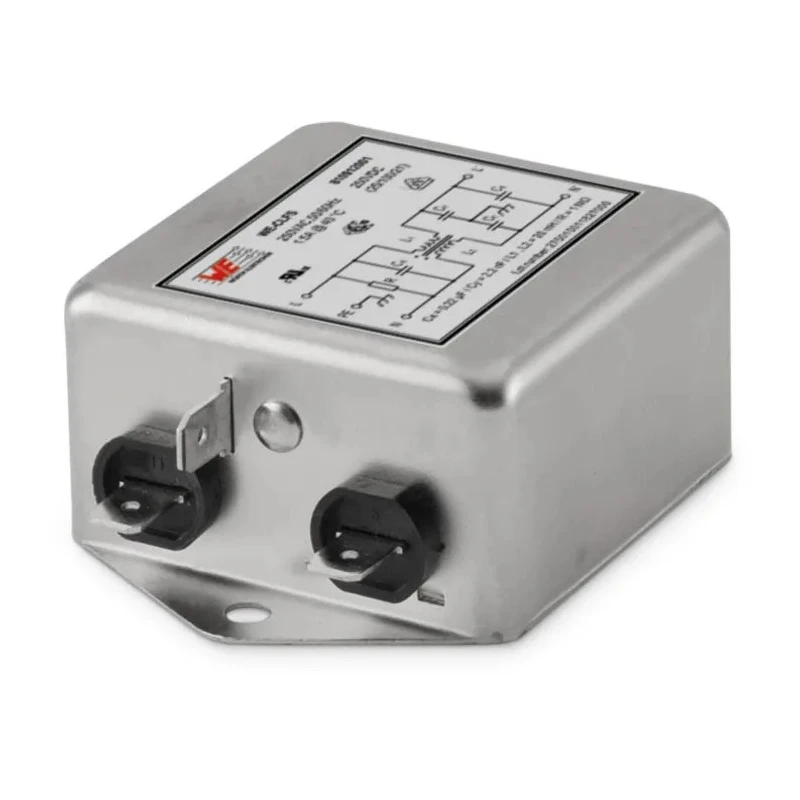

Wurth Elektronik Chassis Mount EMC Filter WE-CLFS, 1.5 A, 250 V, 50Hz/60Hz, Fast-On Termination, Model 810911001

Free Delivery in India | Lowest Global Shipping Charges

Wurth Elektronik Chassis Mount EMC Filter WE-CLFS, 1.5 A, 250 V, 50Hz/60Hz, Fast-On Termination, Model 810911001

Name: Wurth Elektronik Chassis Mount EMC Filter WE-CLFS, 1.5 A, 250 V, 50Hz/60Hz, Fast-On Termination, Model 810911001
Brand: Wurth Elektronik
SKU: 421180
Price: 25.55 USD
Availability: InStock



Category EMC Filter Brand Wurth Elektronik Condition New

Specifications

Country of Origin	China
Brand	Wurth Elektronik
Height	29mm
Length	64mm
Depth	35mm
Packaging	Tray & Carton
Mount Type	Chassis Mount
Operating Frequency	50, 60Hz
Series	WE-CLFS
Maximum Operating Temperature	100°C
Capacitance	0.47μF
Minimum Operating Temperature	-25°C
Maximum Current	1.5A
Number of Phases	1
Leakage Current	369μA
Maximum Voltage	250V
Inductance	11μH
Standards/Approvals	UL, VDE
Termination Style	Fast-On
Single Stage	Very compact design
Single-Stage Advanced	Improved differential mode noise attenuation
Two-Stage	Extreme differential and common mode noise attenuation

Key Features

Operates at 50 Hz and 60 Hz, suitable for common global power applications.
Compact dimensions with length 64mm, height 29mm, and depth 35mm for easy chassis mounting.
Provides broadband noise suppression in both common and differential modes.
Features very low leakage current of 369μA for efficient operation.
Capacitance of 0.47μF and inductance of 11μH for optimized EMI filtering.
Wide operating temperature range from -25°C to 100°C to perform in diverse environments.
Designed for single-phase AC power lines with a maximum current rating of 1.5 A.
Includes fast-on termination connectors to allow quick and secure installation.

Product Description

Wurth Elektronik 810911001 is a high-performance chassis mount EMC Filter intended for single-phase AC power line applications. Operating at 1.5 amps and 250 volts with 50Hz and 60Hz frequencies, it effectively suppresses electromagnetic interference and broadband noise in industrial, telecommunications, and household electronics.

The filter employs a compact single-stage design for space-saving chassis mounting, coupled with fast-on connectors to facilitate quick installation and maintenance. It features a capacitance of 0.47μF and inductance of 11μH, delivering effective broadband noise attenuation in both common and differential modes.

The robust construction allows operation over a wide temperature range from -25°C to 100°C, making it suitable for demanding environments in switched-mode power supplies and DC applications. The low leakage current of 369μA ensures minimal power loss and enhanced efficiency.

Certified to UL and VDE standards, this Wurth Elektronik power line filter guarantees compliance with industry safety and quality requirements. It is supplied in trays and cartons for safe transport and easy handling during large-scale installations.

Operates efficiently at 1.5 A current and 250 V voltage. Compact chassis mount design with fast-on termination for ease of use. Effective EMI suppression at 50 Hz and 60 Hz operating frequencies. Wide temperature range from -25°C to 100°C supports multiple environments.

Meets recognized UL and VDE electrical safety approvals. Suitable for industrial electronics, telecommunications, and household power filtering. Broadband noise suppression in common and differential modes improves equipment reliability.

Designed for single-phase AC power lines with compact size. Low leakage current enhances overall energy efficiency. Manufactured in China under strict quality control by Wurth Elektronik. Browse the Electronics Components category on EnvMart to find complementary power line filters and EMI suppression solutions from Wurth Elektronik and other trusted brands.
