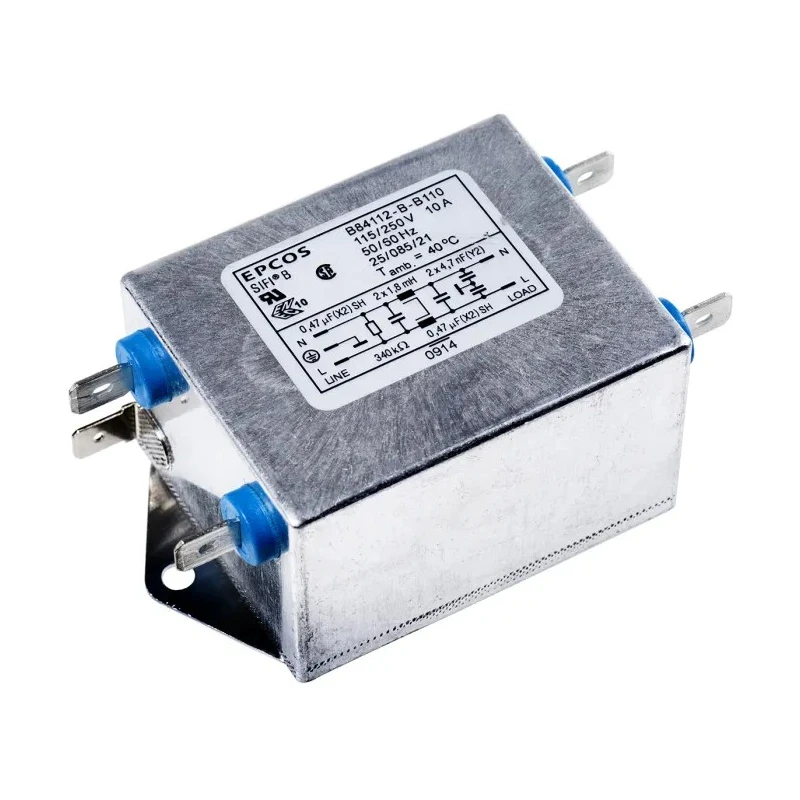

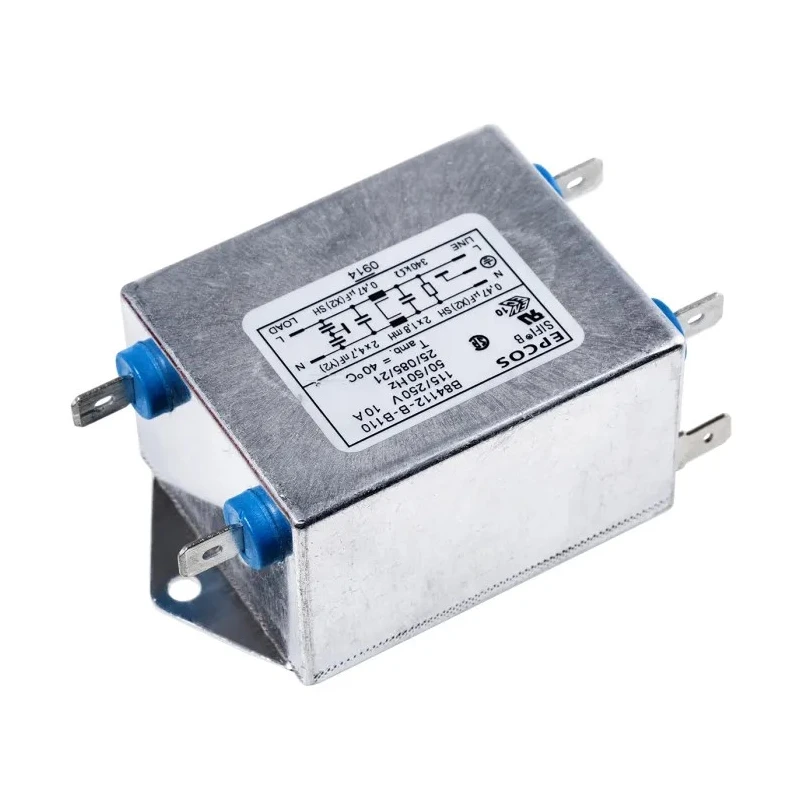

TDK Chassis Mount 1 Phase EMC Filter 10 A 250V AC 50Hz 60Hz B84112B0000B110

TDK B84112B0000B110 is a high-performance EMC filter designed for chassis mount applications in 1 phase electrical systems. Rated for 10 A current and operating at 250 V AC with frequencies spanning 50Hz to 60Hz, it ensures effective suppression of electromagnetic interference in a compact form factor.

The filter has a single stage with an inductance of 2 mH and capacitance of 2 pF, optimizing its filtering capabilities. It features a tab termination style allowing secure and straightforward installation on chassis. The device operates reliably over a temperature range of -25°C to 85°C, making it suitable for demanding industrial and telecommunications environments.

With dimensions of 70 mm length, 38.1 mm height, and 89.5 mm depth, this EMC filter fits easily into various electrical cabinets and assemblies. It complies with UL 1283 safety standards and is UL listed and CSA certified, additionally meeting VDE, SEV, SEMKO, and DEMKO approvals to ensure international standard compliance.

This chassis mount EMC filter finds applications in industrial electronics, switch-mode power supplies, DC and telecommunication systems, and data communication equipment, providing essential electromagnetic noise reduction to improve operational stability and equipment longevity.

The product's advanced design minimizes leakage current (369 μA) and supports efficient EMI suppression, ensuring compliance with rigorous electromagnetic compatibility requirements.

Compact, efficient 1-phase EMC filter for chassis mounting. Rated current of 10 A and voltage of 250 V AC at 50-60 Hz frequency. Tab termination style for reliable mechanical and electrical connection. Single filter stage with 2 mH inductance and 2 pF capacitance.

Wide operating temperature range from -25°C to 85°C. Dimensions: 70 mm x 38.1 mm x 89.5 mm (L x H x D). Meets UL 1283, CSA, VDE, SEV, SEMKO, and DEMKO standards. Minimizes leakage current to 369 μA for safety and efficiency.

Suitable for industrial electronics, telecommunications, and power supply applications. Explore more in the TDK EMC Filters category on EnvMart for trusted components in electronic noise suppression and power line filtering solutions.
