Schaffner Through Hole EMC Filter 1A 250V AC 400Hz Pin 1 Phase FN406

Free Delivery in India | Lowest Global Shipping Charges

Schaffner Through Hole EMC Filter 1A 250V AC 400Hz Pin 1 Phase FN406

Name: Schaffner Through Hole EMC Filter 1A 250V AC 400Hz Pin 1 Phase FN406
Brand: Schaffner
SKU: 412201
Price: 17.89 USD
Availability: InStock



Category EMC Filter Brand Schaffner Condition New

Specifications

Country of Origin	India
Brand	Schaffner
Height	29.5mm
Length	45mm
Model	FN406
Depth	15mm
Mount Type	Through Hole
Operating Frequency	400Hz
Series	FN406
Maximum Operating Temperature	100°C
Number Of Stages	1
Resistance	1mΩ
Capacitance	100nF
Minimum Operating Temperature	-25°C
Maximum Current	1A
Number of Phases	1
Leakage Current	373μA
Maximum Voltage	250V ac
Inductance	12mH
Standards/Approvals	UL 94 V-0
Termination Style	Pin
RS PRO 1 A 250V ac 400Hz, Through Hole RFI Filter, PinBrand	RS PRO

Key Features

Compact through hole mounting ensures easy PCB integration.
Operates efficiently at a maximum current of 1 ampere.
Rated for 250V AC at 400Hz suitable for specialized electronic applications.
Features a pin termination style for reliable electrical connection.
Single-phase design with one stage for focused EMI filtering.
Capacitance of 100nF and inductance of 12mH provide effective noise suppression.
Leakage current is low at 373 microamperes ensuring minimal power loss.
Operates under temperature range from -25°C to 100°C with good thermal stability.

Product Description

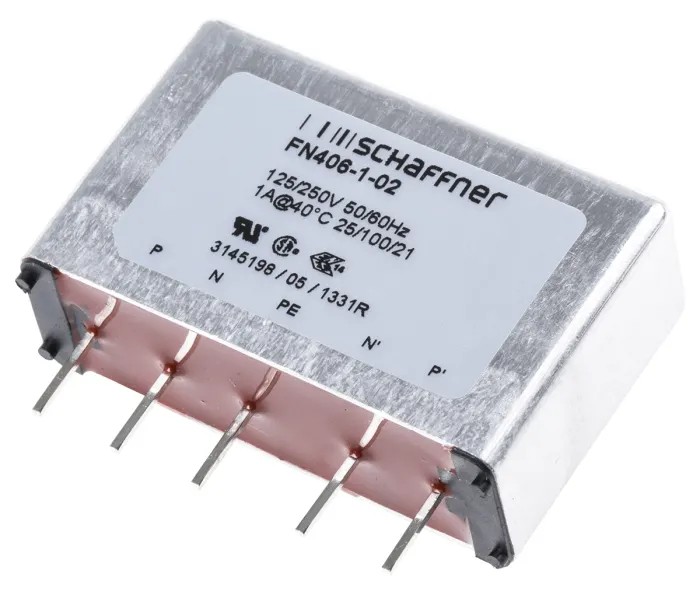

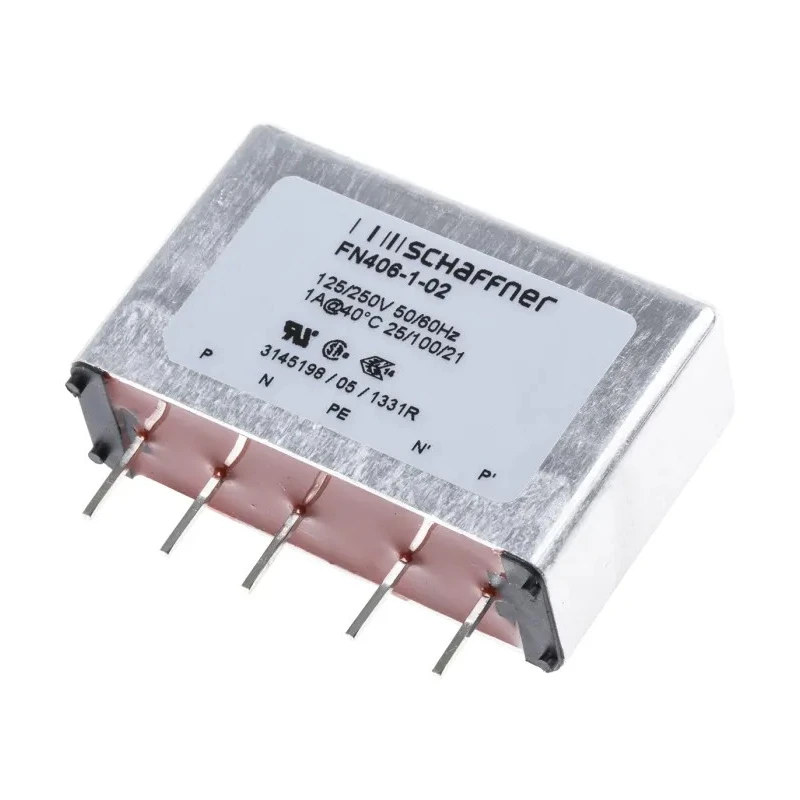

Schaffner FN406 is a single-phase, through hole EMC filter specifically engineered for mounting on printed circuit boards in electrical and electronic equipment. It supports a maximum current of 1 ampere with an operating voltage of 250V AC at a frequency of 400Hz. Its pin termination style and compact design enable easy and fast PCB integration, which is beneficial in manufacturing environments requiring high production efficiency.

This EMC Filter is suitable for various applications including single-phase power supplies, switch-mode power supplies, test and measurement instruments, medical devices, and small-to-medium size machines. With a capacitance of 100nF and an inductance of 12mH, it offers excellent conducted attenuation performance based on chokes that have high saturation resistance and thermal behavior.

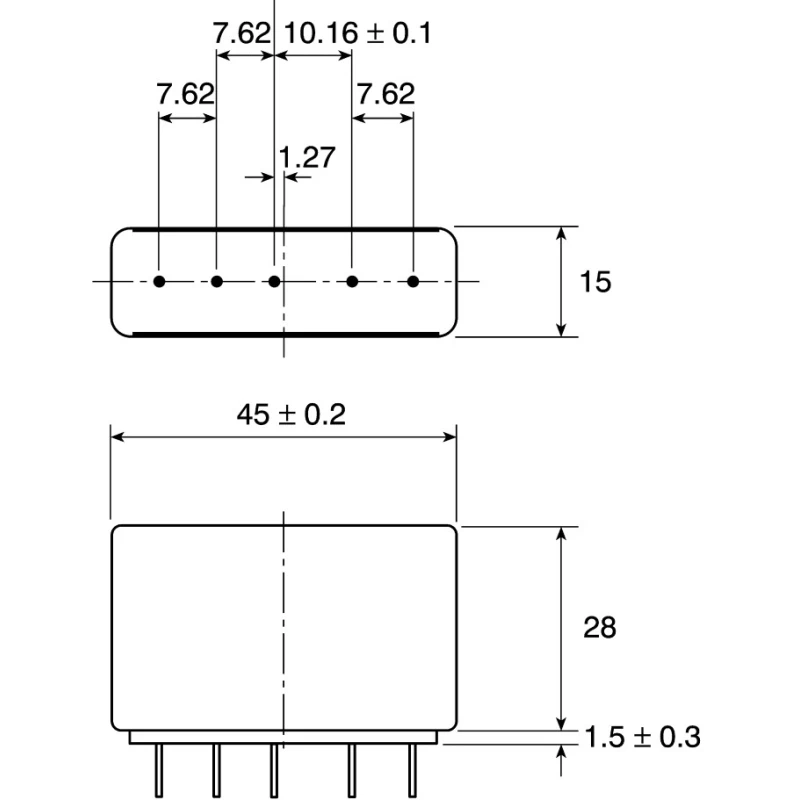

The device features low leakage current of 373μA, resistance of 1mΩ, and is rated to function effectively between -25°C and 100°C. Its dimensions are optimized for PCB mounting with a length of 45mm, height of 29.5mm, and depth of 15mm, making it a low profile filter suitable for modern compact electronics.

The FN406 series includes UL 94 V-0 flame retardant material and complies with various international approvals like UL, CSA, and VDE, ensuring safety and reliability standards are met.

Compact through hole mounting compatible with PCB applications. High saturation resistance chokes ensure dependable attenuation performance. Operating temperature range from -25°C to 100°C for diverse environments. Single-phase and single-stage configuration optimized for specific use cases.

Low leakage current minimising power consumption during operation. Pin termination style for secure electrical connectivity. Suitable for medical and industrial electronic equipment. UL 94 V-0 compliant flame retardant material for enhanced safety.

Dimensions designed for compact PCB spaces. Explore the comprehensive range of Schaffner EMI and power line filters at EnvMart for industrial, laboratory, and commercial electronic applications.
