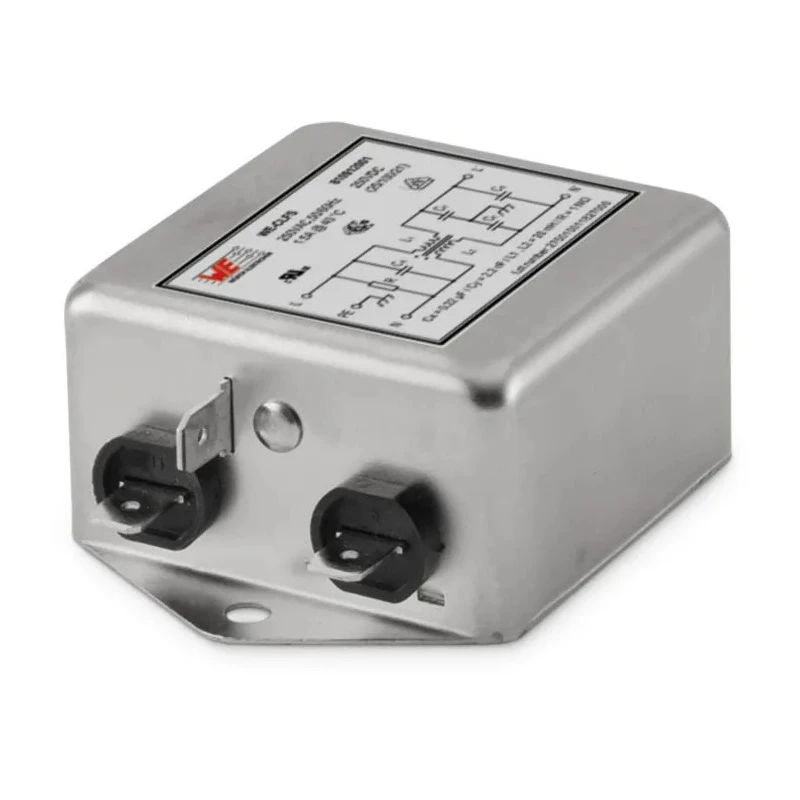

Wurth Elektronik Chassis Mount EMC Filter 6A 250V 50Hz-60Hz Fast-On 1 Phase 810913006
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Height | 45mm |
| Length | 114.9mm |
| Depth | 58.5mm |
| Packaging | Tray & Carton |
| Mount Type | Chassis Mount |
| Operating Frequency | 50, 60Hz |
| Series | WE-CLFS |
| Maximum Operating Temperature | 100°C |
| Capacitance | 0.47μF |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 6A |
| Number of Phases | 1 |
| Leakage Current | 369μA |
| Maximum Voltage | 250V |
| Inductance | 11μH |
| Standards/Approvals | UL, VDE |
| Termination Style | Fast-On |
| Single Stage | Very compact design |
| Single-Stage Advanced | Improved differential mode noise attenuation |
| Two-Stage | Extreme differential and common mode noise attenuation |
Key Features
- Designed for single-phase applications with fast-on termination style for easy connection.
- Compact chassis mounting ensures simple installation and space-saving.
- Includes broadband noise suppression in both common and differential mode for enhanced performance.
- Features capacitance of 0.47μF and inductance of 11μH to provide effective filtering.
- Operates reliably in temperatures between -25°C and 100°C with a leakage current of 369μA.
- Meets UL and VDE standards, suitable for industrial electronics and telecommunications.
- Ideal for switched-mode power supplies, household goods, and DC applications.
- Packaged in tray and carton for secure delivery and protection.
Product Description
Wurth Elektronik 810913006 is a high-quality chassis mount EMC filter designed to provide effective electromagnetic compatibility solutions for industrial and commercial electronic equipment. Rated for a maximum current of 6A and voltage of 250V, this single-phase filter operates efficiently at both 50Hz and 60Hz frequencies.
The filter integrates broadband noise suppression in both common and differential modes to significantly reduce electromagnetic interference, ensuring stable operation of sensitive electronics. Its fast-on termination style enables quick and secure electrical connections while the compact chassis mount design facilitates easy and space-efficient installation.
Technical specifications include a capacitance of 0.47μF and an inductance of 11μH, making it well-suited for suppressing unwanted noise in power line circuits. It withstands operating temperatures ranging from -25°C up to 100°C and features a low leakage current of 369μA, promoting energy efficiency and safety compliance.
Certified to UL and VDE standards, the 810913006 filter is suitable for use in a variety of applications including industrial electronics, switched-mode power supplies, telecommunications systems, household goods, and DC applications. It provides a very compact one-stage design with options for enhanced differential noise attenuation and extreme differential plus common mode noise attenuation in advanced designs.
Single-phase filter with broadband noise suppression in common and differential mode. Fast-on connectors provide easy and reliable assembly. Compact design offers space-saving chassis mount installation. Capacitance 0.47μF, inductance 11μH for effective noise filtering.
Wide operating temperature range from -25°C to 100°C. Complies with UL and VDE standards for safety and performance. Ideal for industrial, telecommunications, and switched-mode power supply applications. Packaged securely in trays and cartons for delivery.
EnvMart offers this Wurth Elektronik EMC Filter for professional electronic assembly and noise suppression applications. Explore our electronics components category for related power line filters and EMC products designed to meet industrial and commercial standards.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this EMC filter is 6A.
The capacitance value of this filter is 0.47μF.
This model operates reliably within a temperature range of -25°C to 100°C.
It utilizes a chassis mount design for installation.
The filter meets UL and VDE standards for safety and performance.
The inductance value of this EMC filter is 11μH.
The leakage current for this model is 369μA.
This filter operates efficiently at both 50Hz and 60Hz frequencies.
The dimensions of the filter are 114.9mm in length, 58.5mm in depth, and 45mm in height.
It is suitable for industrial electronics, telecommunications, switched-mode power supplies, and household goods.
This EMC filter features a fast-on termination style for easy connection.
The filter is packaged in trays and cartons for secure delivery and protection.
