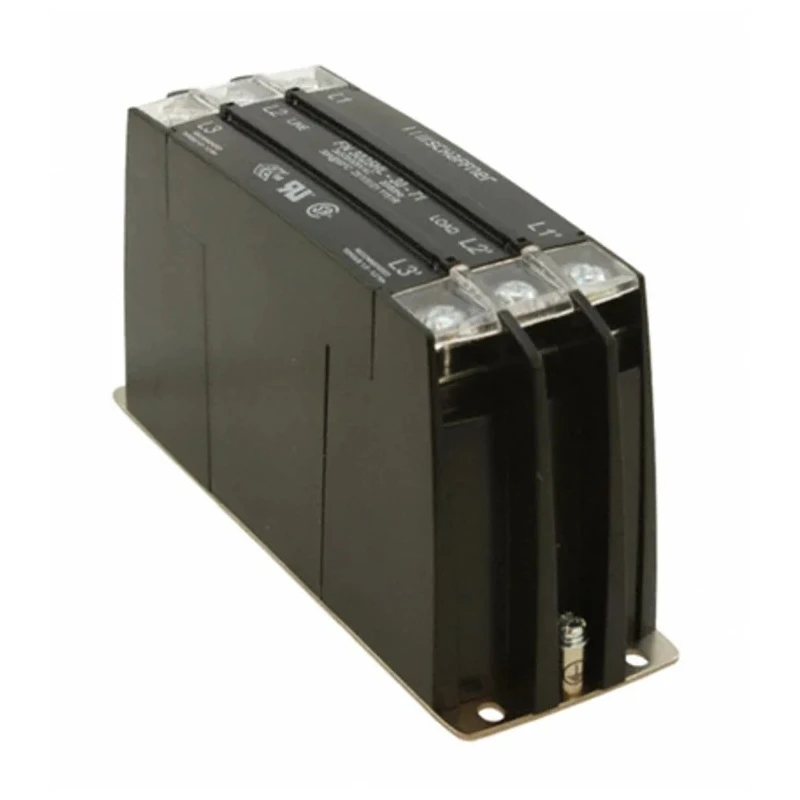

Schaffner Chassis Mount EMC Filter 3 Phase Screw Termination, 50 A, 520 V AC, 60 Hz, FN3025 HP-50-72

Schaffner FN3025 HP-50-72 is a high-performance chassis mount EMC filter designed for three-phase power systems operating at 520 V AC with a maximum current rating of 50 A and frequency of 60 Hz. Housed in a compact, lightweight plastic enclosure, this state-of-the-art RFI filter provides effective electromagnetic interference suppression essential in industrial, commercial, and electronic applications.

The chassis mounting design with hinged safety covers and embedded terminals ensures easy and safe installation. Its screw termination style allows secure electrical connections for reliable performance. The metal ground plate enhances filtering capability while minimizing leakage current to 2.5 mA, supporting system safety and compliance.

Operating within a wide temperature range from -25°C up to 100°C, this filter maintains stable performance under varying environmental conditions. Its single-stage design makes it suitable for many applications requiring effective noise suppression.

The filter’s physical dimensions of 177 mm length, 84 mm height, and 65 mm depth allow versatile mounting options within electrical enclosures or machinery racks. Power loss of 10.5 W ensures efficient operation without excessive energy consumption.

Manufactured in China according to Schaffner’s stringent quality standards, this EMC filter is suitable for electronic components, power and connector systems, and passive component assemblies. Typical applications include industrial control equipment, power line filtering, and noise abatement in electronic devices.

Compact lightweight plastic enclosure for easy chassis mounting. Metal ground plate and minimized leakage current for enhanced EMI suppression. Screw termination style provides secure electrical connections. Single-stage three-phase filter operating at 60 Hz frequency.

Wide operating temperature range from -25°C to 100°C for reliability. Low power loss at 10.5 W for energy-efficient filtering. Dimensions: 177 mm length x 84 mm height x 65 mm depth for versatile installation. Manufactured in China with reliable quality standards.
