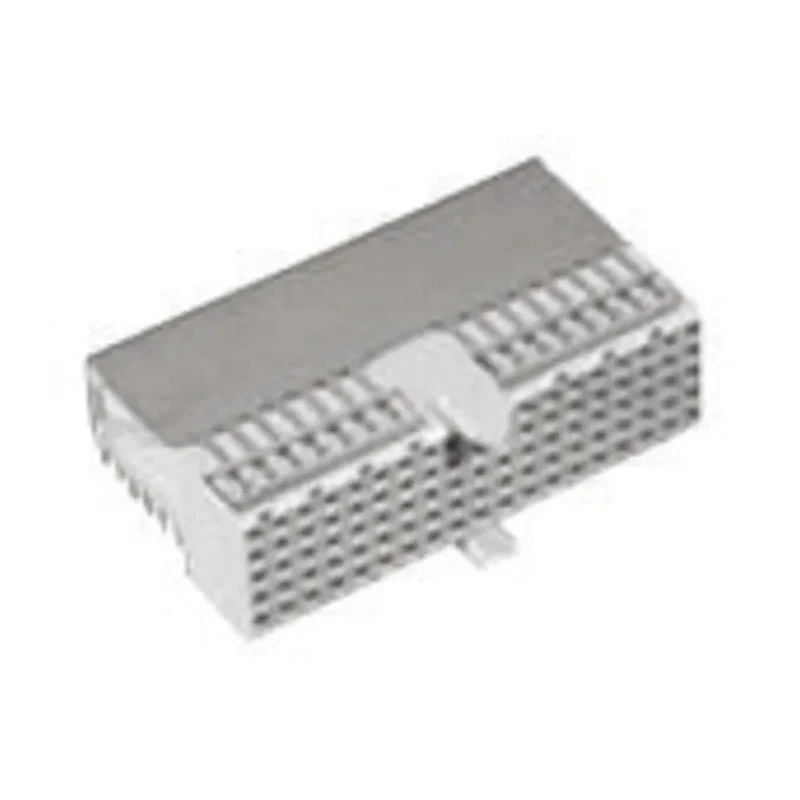

TE Connectivity Z-PACK HM 2 mm Pitch Hard Metric Type A Backplane Connector Right Angle Female 22 Column 5 Row 110 100147-1

TE Connectivity 100147-1 Z-PACK HM 2 mm Pitch Hard Metric Type A backplane connector is a right angle female connector with 22 columns and 5 rows, totaling 110 contacts. It features a durable polybutylene terephthalate housing and phosphor bronze contacts plated with gold over nickel to ensure reliable electrical performance and resistance to corrosion.

This backplane connector supports a current of 1.5 amperes and voltage up to 500 volts AC, operating within a temperature range of -55°C to 125°C. Designed for through-hole mounting and solder termination, it guarantees strong mechanical and electrical connections on printed circuit boards.

The Z-PACK HM series connectors are engineered for the connection of daughterboards or PCBs to fixed boards such as motherboards and backplanes, enabling robust backplane interconnections in electronic equipment. Its standardized 2 mm pitch and right angle orientation allow efficient use of PCB space and compatibility with CompactPCI configurations.

Industrial applications include electronic instrumentation, telecommunications, computing equipment, and control systems where reliable high-density interconnectivity is essential. These connectors provide a multi-purpose centre mating alignment and standard crosstalk characteristics, ensuring signal integrity in complex systems.

Material selection adheres to UL 94V-0 standards enhancing safety by using flame retardant polyester housings. The gold over nickel plating on contacts enhances conductivity and longevity under repetitive mating cycles.

Package contents supplied in tubes are ready for insertion into machinery, facilitating production efficiency. This connector is ideal for manufacturers and designers needing a dependable and industry-standard backplane connection solution.

Explore EnvMart for extensive categories of electronic components and connectors including backplane and rack connectors compatible with various industrial and laboratory applications.

Constructed with a polybutylene terephthalate housing for durable performance. Employs phosphor bronze contacts plated with gold over nickel for excellent conductivity and corrosion resistance. Supports a current rating of 1.5 amperes and operates safely up to 500 volts AC.

Designed for through-hole mounting with solder termination type ensuring strong mechanical connections. Operates reliably within a temperature range from -55°C to 125°C. Meets the Z-PACK HM series standards for Backplane Connectors with multi-purpose centre mating alignment.

Ideal for connecting daughterboards or PCBs to motherboards, backplanes, or backpanels in electronic assemblies. Provides standardized 2 mm pitch allowing integration into CompactPCI and similar systems. The right angle orientation facilitates space-saving installation on PCBs.

Suitable for industrial, electronic, and power connector applications requiring robust and precise interconnections.
