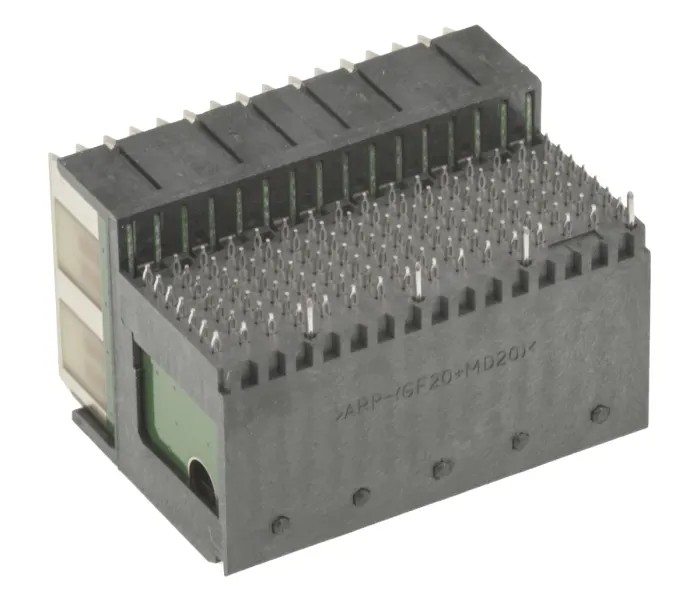

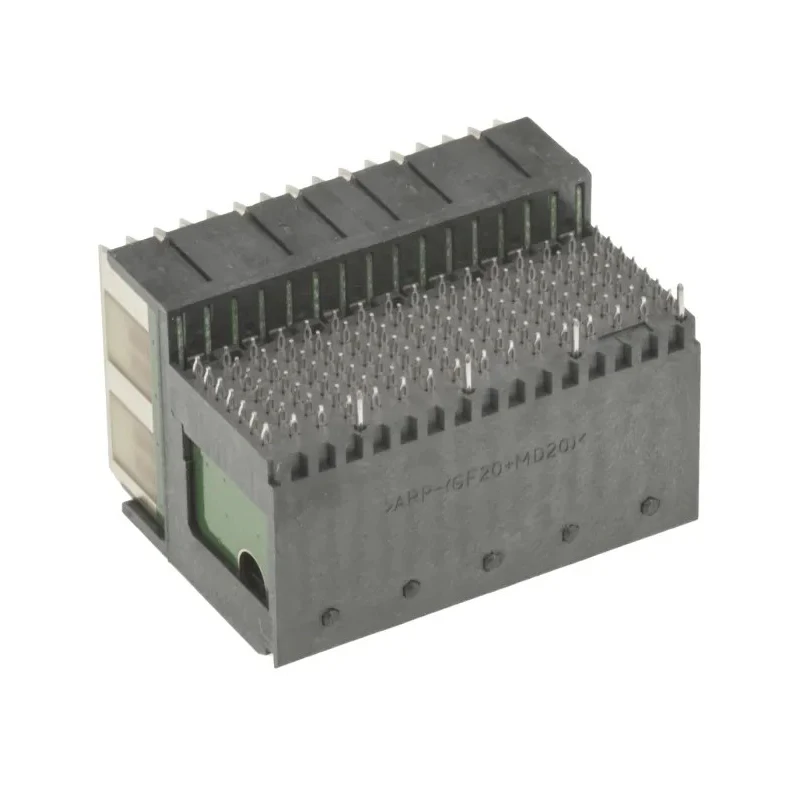

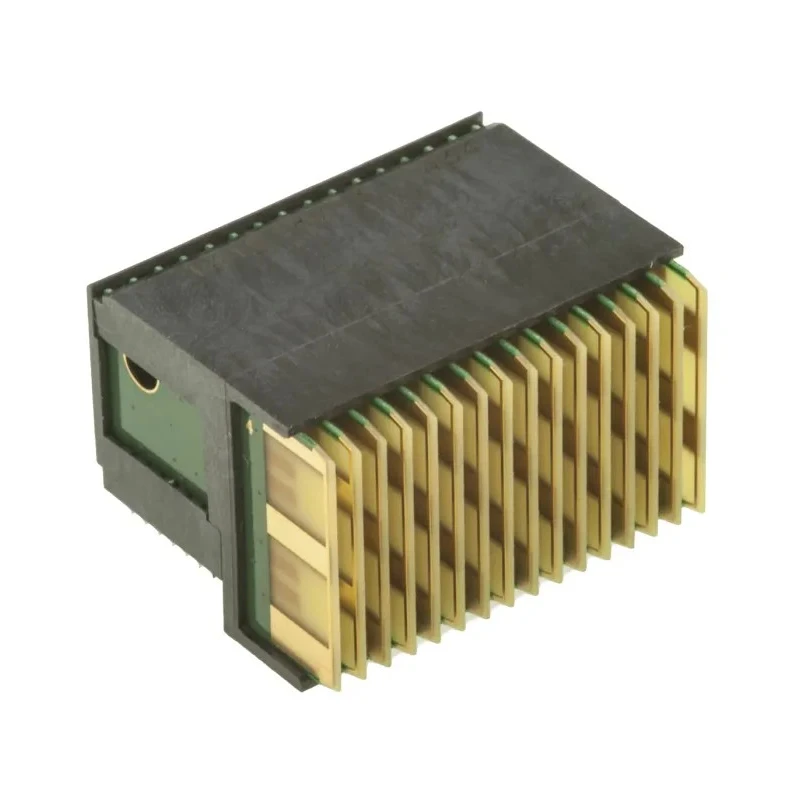

TE Connectivity MULTIGIG RT 2 1.8 mm Pitch VITA 46 Centre Backplane Connector, Right Angle Male, 16 Column, 7 Row 1410187-3

TE Connectivity 1410187-3 MULTIGIG RT 2 Backplane Connector is a VITA 46 VPX compliant high-speed backplane connector designed for centre module applications, featuring a 1.8 mm pitch and arranged in 16 columns by 7 rows with 112 contacts. This right angle male connector supports data transmission speeds beyond 10 Gbit/s, suitable for demanding industrial and defense applications.

The housing is constructed from liquid crystal polymer, offering mechanical strength and high-temperature resistance. Contacts are made from phosphor bronze and plated with gold over nickel to ensure excellent electrical conductivity and corrosion resistance. The connector employs a through hole mount with solder termination for robust PCB integration.

Operating temperature ranges from -55°C to 105°C, making it fit for harsh and rugged environments. The MULTIGIG RT 2 series incorporates a pinless interface, which enhances reliability by reducing wear and improving durability during mating cycles. It also features polarization mechanisms that prevent incorrect mating and improve overall system integrity.

This modular backplane connector system is ideal for industrial, telecommunications, military, aerospace, and data storage equipment requiring high-speed signal transmission with superior crosstalk performance and ESD protection. The compliant PCB pins and customizable wafer layout options further support flexible and efficient design needs.

Other connectors in the MULTIGIG RT series complement this centre module connector offering various configurations for left and right end modules. This product maintains the strict quality and reliability standards expected in high-end electronic component assemblies.

High-speed data rate exceeding 10 Gbit/s. Right angle male connector with 112 contacts in 16 columns × 7 rows. Liquid crystal polymer housing for durability and heat resistance. Gold over nickel plated phosphor bronze contacts for excellent conductivity.

Through hole mount type and solder termination for strong PCB attachment. Wide operating temperature range from -55°C to 105°C. Pinless interface enhancing robustness and mating reliability. Polarization feature preventing mismating and preserving signal integrity.
