BK Precision Digital Bench Power Supply 1-Output 300 V to 300 V 300 VA 3 A Max BK9801

Free Delivery in India | Lowest Global Shipping Charges

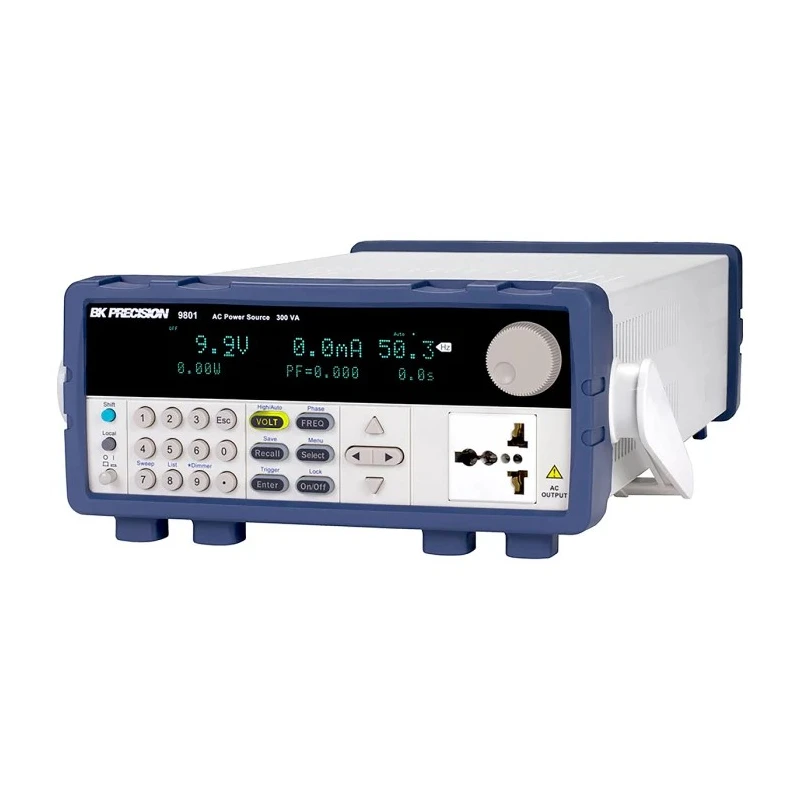

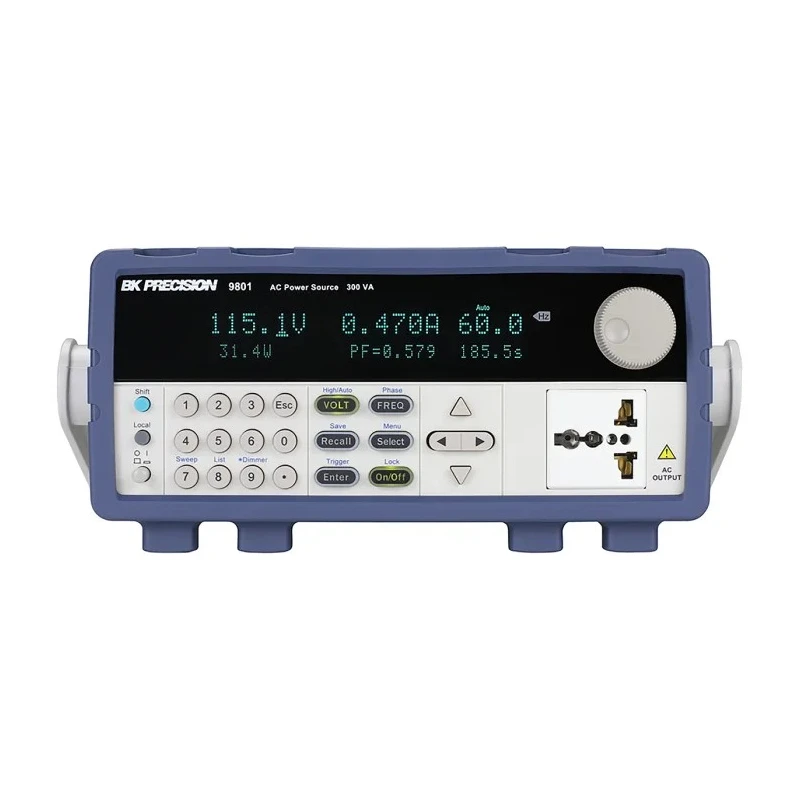

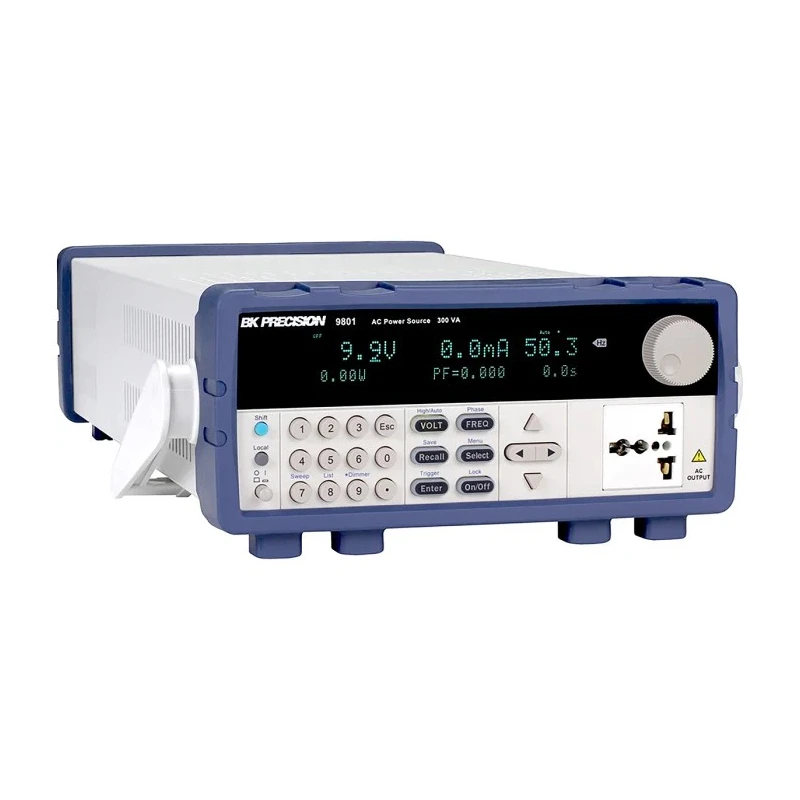

BK Precision Digital Bench Power Supply 1-Output 300 V to 300 V 300 VA 3 A Max BK9801

Name: BK Precision Digital Bench Power Supply 1-Output 300 V to 300 V 300 VA 3 A Max BK9801
Brand: BK Precision
SKU: 187383
Price: 4672.42 USD
Availability: InStock



Category Bench Power Supplies Brand BK Precision Condition New

Specifications

Country of Origin	China
Brand	BK Precision
Model	BK9801
Output type	Digital
Maximum Operating Temperature	40°C
Minimum Operating Temperature	0°C
Plug Type	IEC 320

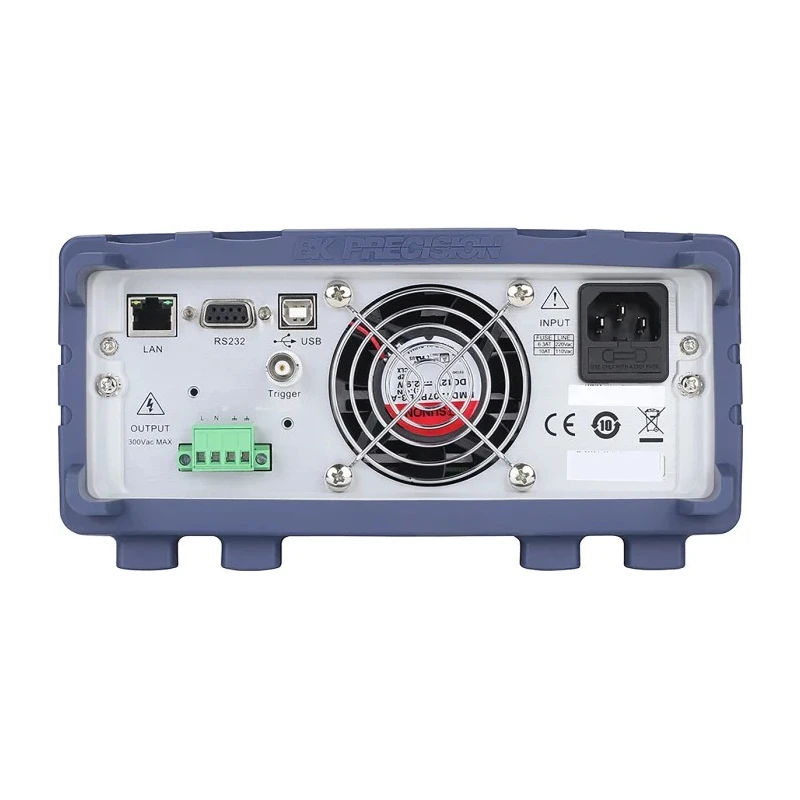

Interfaces	Standard USB (USBTMC-compliant), RS232 and LAN interfaces
Number of outputs	1
Maximum Output Current	3A
Maximum Output Voltage	300V
Maximum Supply Voltage	220V ac
Minimum Supply Voltage	110V ac
Digital/Analogue	Digital
Supported Number of Displays	3

Key Features

Programmable AC power source with output voltage adjustable from 0 to 300 V with 0.1 V resolution.
Output frequency adjustable between 45 Hz and 500 Hz for versatile testing requirements.
Displays Vrms, Irms, Ipeak, frequency, power factor, apparent power, true power, and elapsed output time on a bright VFD display.
Includes power line disturbance simulator and dimmer functions for comprehensive power quality testing.
Standard USB (USBTMC-compliant), RS232 and LAN interfaces enable remote control and automation.
Compact bench unit with IEC 320 plug and operating temperature range 0°C to 40°C.
Ideal for production, R&D, service, and pre-compliance testing of transformers, TRIACs, SCRs, and passive components.
Supplied with AC power cord, instruction manual, test report, and certificate of calibration.

Product Description

BK Precision BK9801 is a programmable digital bench power supply designed for precision AC power testing applications with one output supporting voltages up to 300 V and current up to 3 A. It provides 300 VA power with low distortion and high-resolution output voltage control, suitable for applications such as evaluating transformers, TRIACs, SCRs, and passive components.

The unit operates with adjustable output frequency from 45 Hz to 500 Hz and features a clear VFD display showing comprehensive electrical parameters including Vrms, Irms, Ipeak, power factor, true power, apparent power, frequency, and elapsed time. Its adjustable phase angle control and integrated power line disturbance (PLD) simulator allow simulation of common grid faults for pre-compliance and production testing.

The BK9801 supports standard communication protocols with USB (USBTMC-compliant), RS232, and LAN interfaces enabling remote operation and automation. Its compact design, equipped with IEC 320 plug type, ensures usability in laboratories, manufacturing, and service environments. The device operates reliably within temperatures from 0°C to 40°C.

Programmable AC output voltage from 0 to 300 V with low distortion. Adjustable frequency range from 45 Hz to 500 Hz for flexible testing scenarios. Bright VFD display presenting real-time voltage, current, frequency, power factor, and power parameters.

Built-in power line disturbance and dimmer simulation functions for advanced testing needs. Standard USB, RS232, and LAN interfaces for remote and automated control. Compact, reliable design suitable for R&D, production, and compliance testing.

Supplied with AC power cord, instruction manual, test report, and calibration certificate. This product is manufactured in China and supplied as new. Discover more professional Bench Power Supplies and instruments at EnvMart for your industrial, laboratory, and commercial needs.
