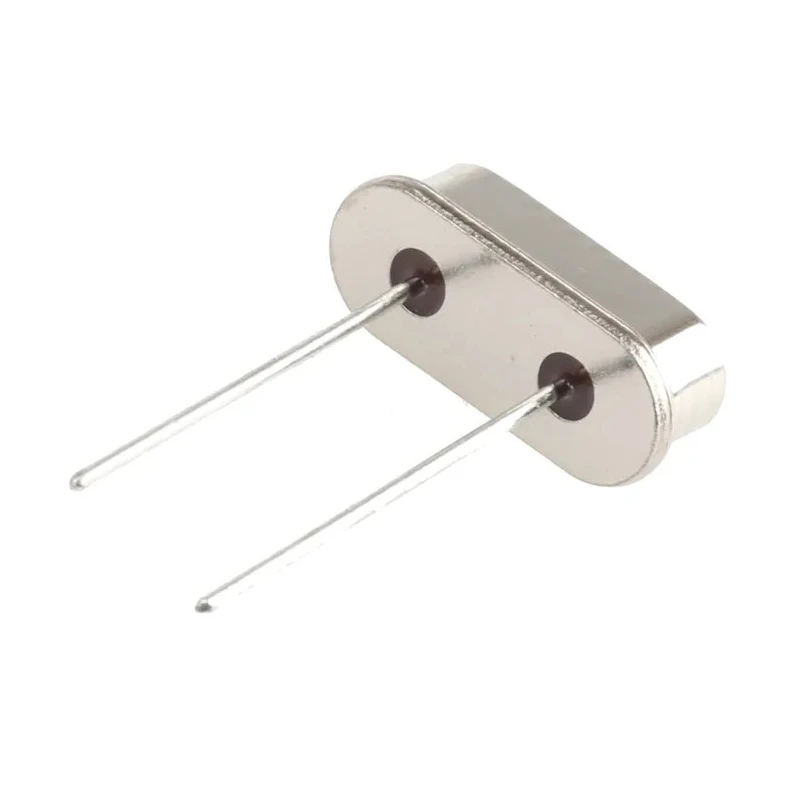

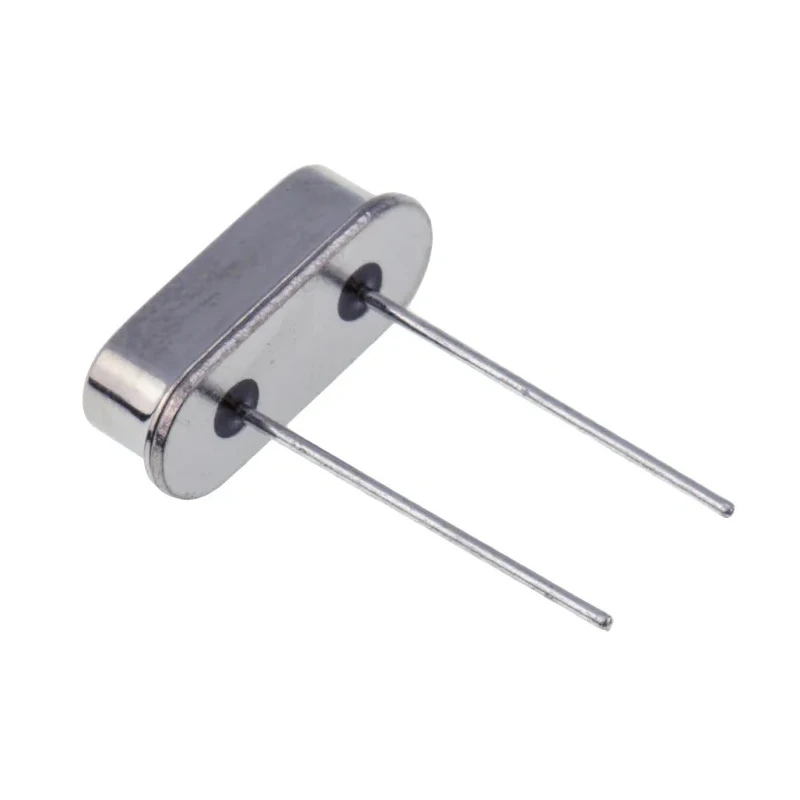

RALTRON 16 MHz Crystal ±50 ppm HC-49 2-Pin Through Hole Mount AS-16.000-18

RALTRON AS-16.000-18 16 MHz Crystal with ±50 ppm frequency tolerance in an HC-49 2-pin through-hole package is designed for precise frequency control in electronic circuits. Operating at a standard frequency of 16 MHz and featuring 18 pF load capacitance, this crystal unit offers stability suitable for communications, computing, and timing applications in industrial and commercial environments.

Its compact dimensions of 11.35 mm length, 5 mm width, and 3.5 mm height allow easy integration on printed circuit boards using through-hole mounting techniques. The crystal maintains frequency stability within ±100 ppm ensuring consistent oscillator performance across temperature variations between −40°C and +85°C. The 40 ohm series resistance supports clean signal transmission with minimal loss.

Encased in a HC-49 package and supplied on tape & reel packaging, the AS-16.000-18 crystal unit supports automated manufacturing workflows and is compliant with RoHS standards. Made in China, this unit is suitable for applications in electronic instrumentation, telecommunications, HVAC control systems, industrial automation, and other electronics assemblies requiring accurate and reliable timing components.

This crystal operates at a standard frequency of 16 MHz, suitable for precision timing applications. The device features a load capacitance of 18 pF ensuring stable oscillation. Packaged in a robust HC-49 form factor with 2 pins for through-hole mounting.

Its precise frequency tolerance is ±50 ppm with frequency stability of ±100 ppm for reliable performance. Operating temperature range extends from −40°C to +85°C, suitable for varied environments. Series resistance is limited to 40 ohms, optimizing signal integrity.

Packaging includes tape and reel, facilitating automated assembly processes. Explore the extensive selection of precise Crystal Units and electronic components at EnvMart to meet your application needs.
