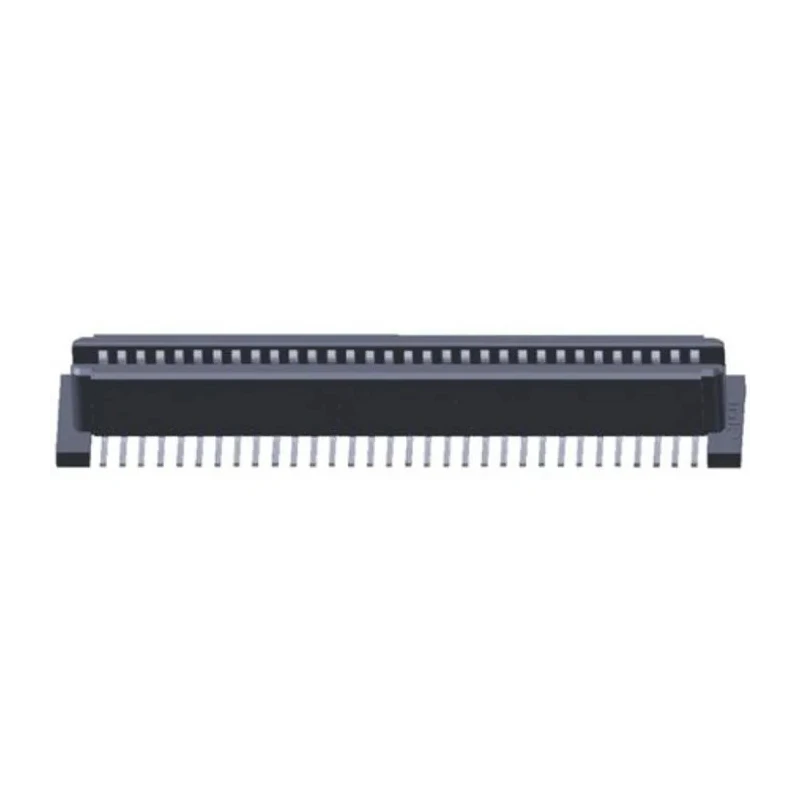

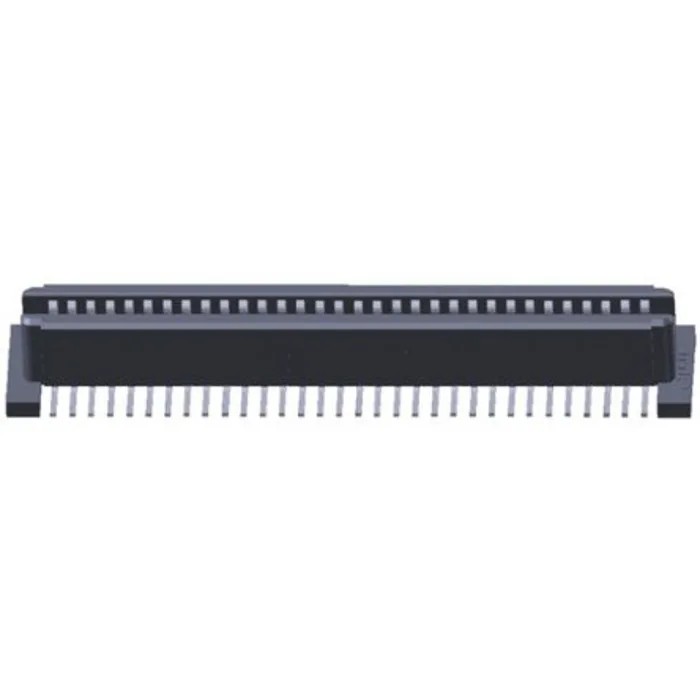

TE Connectivity 1FHR Series Straight Backplane Connector Female Surface Mount 64 Contacts 1 mm Pitch 2 Row Solder 5146893-1
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 500mA |
| Mount Type | Surface |
| Housing Material | Thermoplastic |
| Contact Material | Phosphor Bronze |
| Series | 1FHR |
| Termination Type | Solder |
| Maximum Operating Temperature | 110°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 1mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 64 |
| Contact Gender | Female |
| Connector Gender | Female |
| Card Type | Edge |
Key Features
- Features gold over nickel contact plating for excellent conductivity and corrosion resistance.
- Constructed with phosphor bronze contact material ensuring durability and reliable performance.
- Operates reliably between -55°C and 110°C temperature range.
- Designed for 250V voltage rating and 500mA current capacity to meet demanding electronic applications.
- The housing is made of thermoplastic material complying with UL 94V-0 fire safety standards.
- Connector terminates through soldering for strong and stable electrical connections.
- Ideal for usage in mezzanine board stacking and edge connector applications.
- This backplane connector series conforms to EIA-700 AAAB standards for IEEE 1386 compatibility.
Product Description
TE Connectivity 5146893-1 is a Straight Backplane Connector with Female contacts designed for Surface Mount applications. It features 64 contacts arranged in 2 rows with a 1 mm pitch, providing precise and dense connectivity suited for modern electronics assemblies.
The connector contacts are made of phosphor bronze and plated with gold over nickel to ensure excellent electrical conductivity and corrosion resistance. The thermoplastic housing complies with UL 94V-0 standards, ensuring fire safety and durability in industrial environments.
This connector supports a voltage of 250V and is rated for a current of 500mA, operating effectively within a temperature range from -55°C to 110°C. It terminates by soldering, providing stable and robust electrical connections required in demanding electronic and PCB designs.
The TE Connectivity 1FHR Series is compliant with IEEE 1386 standards and meets the EIA-700 AAAB specifications, making it ideal for mezzanine board stacking applications and edge connector interfaces. The free height design provides flexible stacking heights according to the selected mating connector.
Applications include industrial electronics, telecommunications equipment, computer hardware, and other electronic manufacturing sectors requiring high-density, reliable backplane connections.
Gold over nickel plating on contacts for optimal performance. Phosphor bronze contact material provides durability. Wide temperature range operation from -55°C to 110°C. Voltage rating up to 250V and current carrying capacity of 500mA.
Thermoplastic housing with UL 94V-0 fire rating. Solder termination for secure connections. Mezzanine board stacking and edge connector applications. Conforms to IEEE 1386 and EIA-700 AAAB standards. Compact 1.0 mm pitch two-row configuration.
New condition product suitable for industrial and electronic use cases. Explore more high-quality connectors and electronic components at EnvMart for your manufacturing and industrial requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The voltage rating for this backplane connector is 250V.
This model has a current capacity of 500mA.
It operates reliably within a temperature range of -55°C to 110°C.
The connector features 64 contacts arranged in 2 rows.
It uses solder termination for secure and stable electrical connections.
The contacts are made of phosphor bronze and are plated with gold over nickel, while the housing is made of thermoplastic material.
Yes, it conforms to IEEE 1386 standards and meets the EIA-700 AAAB specifications.
The pitch of the contacts is 1 mm.
This connector is suitable for mezzanine board stacking and edge connector applications in industrial electronics and telecommunications equipment.
The orientation of this connector is straight.
The housing complies with UL 94V-0 fire safety standards.
This connector is manufactured in India.
